Description

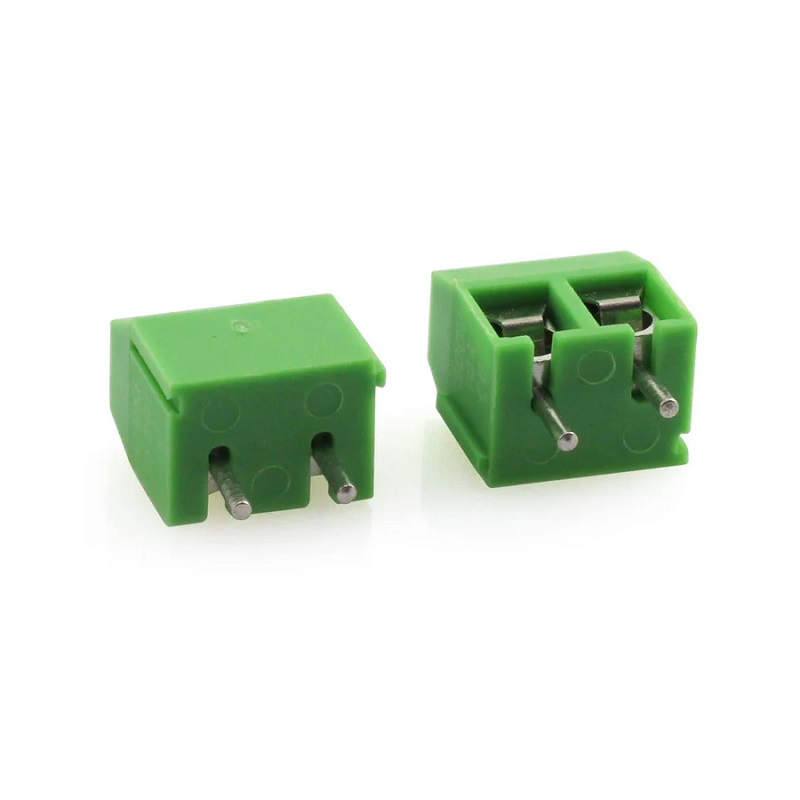

This 2-Pin Straight PCB Screw Terminal Block is a compact and reliable solution for wire-to-board connections in your electronic projects. Molded from high-quality, flame-retardant green PA (UL94-V0), this connector is built for durability and safety. It features a double-interlocking mechanism for enhanced mechanical strength and guided pin alignment to ensure quick and easy mounting on your PCB.
Key Features
- Secure Connection: Features captive screws for reliable wire retention and consistent electrical contact.
- Guided Alignment: Integrated pin alignment design facilitates effortless and accurate installation on printed circuit boards.
- Increased Durability: Double-interlocking mechanism provides superior structural strength during operation.
- Safety Rated: Constructed from flame-retardant material suitable for demanding electronic environments.
- Versatile Application: Ideal for power distribution, sensor inputs, and various industrial or hobbyist electronics projects.
Package Includes
- 1 x 2-Pin Straight PCB Screw Terminal Block Connector (3.5mm Pitch)
Technical Specifications
| Parameter | Specification |
|---|---|
| Pitch | 3.5 mm |
| Poles | 2 Pin |
| Rated Voltage | 300 V |
| Rated Current | 10 A |
| Wire Range | 24–18 AWG |
| Operating Temperature | -40°C to +105°C |
| Torque | 0.2 Nm (1.8 lb.in) |
| Shipping Weight | 0.002 kg |
| Shipping Dimensions | 9 x 5 x 2 cm |
