Description

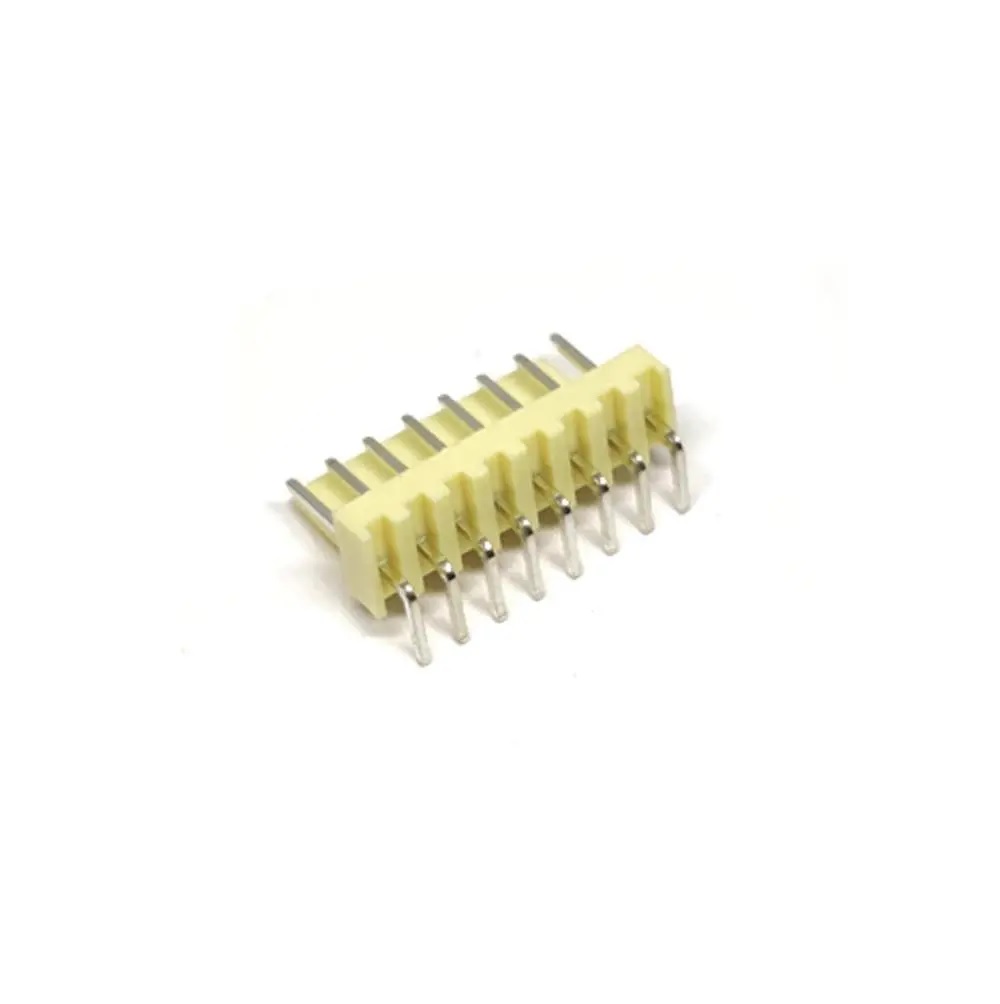

The 2510-AW 8-pin male Relimate connector is engineered for reliable, secure electrical connectivity in compact PCB designs. Featuring a 2.5mm pitch and a right-angle through-hole mounting configuration, this connector is optimized for space-efficient board-to-wire interfaces. It is rated for 3A AC/DC current and 250V AC/DC voltage, ensuring stable power and signal transmission for a wide range of electronic systems.
Designed for durability, the connector offers low contact resistance (max 20mΩ) and high insulation resistance (1000MΩ min) for excellent electrical integrity. It is capable of withstanding voltage fluctuations up to 800V AC/minute and operates consistently within a temperature range of -20°C to +85°C. With compatibility for wire gauges from AWG #28 to #22, it provides the versatility required for diverse industrial and consumer electronic applications.
Features
- Secure Connectivity: Provides a robust and reliable interface for critical electronic signal and power paths.
- High Compatibility: Accommodates wire gauges ranging from 28 to 22 AWG, ensuring flexibility for different wiring needs.
- Right-Angle Design: Ideal for low-profile PCB layouts and side-entry cable management.
- Stable Performance: Features low contact resistance and high insulation resistance to maintain signal clarity.
- Resilient Construction: Rated to withstand voltage fluctuations and operate effectively in varied environmental conditions.
- Standard Pitch: 2.5mm spacing ensures easy integration with common industry-standard headers.
Applications
- Consumer Electronics: Standard choice for internal connectivity in audio/video equipment and household appliances.
- PCB Prototyping: Excellent for establishing modular, high-reliability board-to-wire interfaces during R&D.
- Industrial Automation: Suitable for connecting micro-controllers to sensors and modular peripheral components.
- Power Distribution: Reliable interface for low-voltage power supply distribution within compact electronic housings.
- Signal Routing: Perfect for space-constrained signal transmission across complex circuit layouts.
Package Includes
- 1 x 2510-AW 2.5mm 8-pin Relimate Male Connector Through-Hole Right-Angle
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Current | 3A AC/DC |
| Rated Voltage | 250V AC/DC |
| Contact Resistance | 20mΩ max |
| Insulation Resistance | 1000MΩ min |
| Withstanding Voltage | 800V AC/minute |
| Operating Temperature | -20°C to +85°C |
| Wire Compatibility | AWG #28 to #22 |
| Shipping Weight | 0.005 kg |
| Shipping Dimensions | 5 × 4 × 2 cm |
