Description

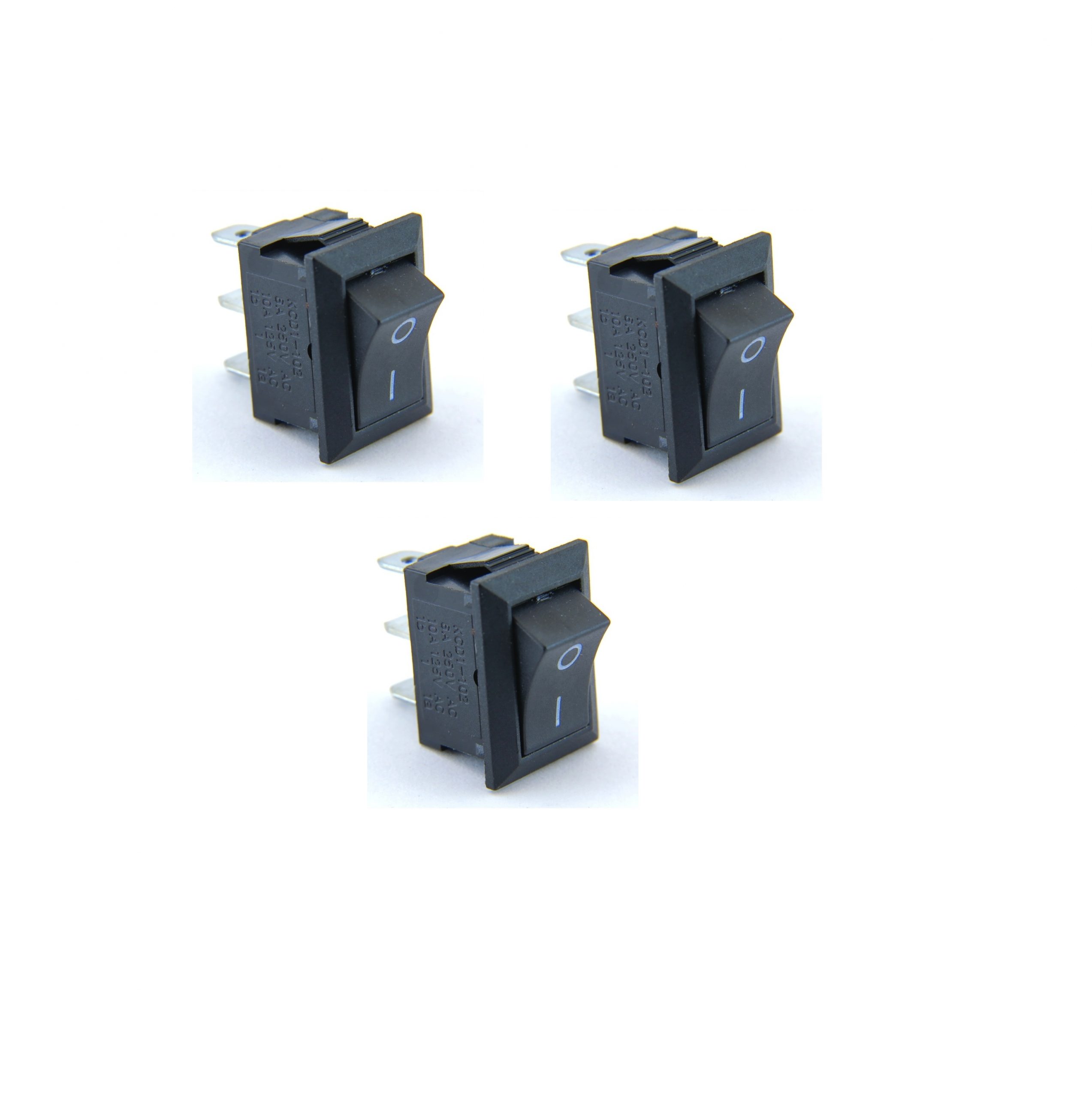

The KCD1-108 SPDT ON-ON Rocker Switch is a compact and reliable panel-mount switch designed for applications requiring two selectable ON positions. Featuring a Single Pole Double Throw (SPDT) configuration, it allows switching between two separate output circuits, making it ideal for polarity reversal, mode selection, and directional control in electronic and electrical systems.
Its snap-in panel mounting design enables quick installation without screws, while the durable plastic housing and metal contacts ensure long-lasting performance. Rated for 3A at 250V AC, the KCD1-108 rocker switch is suitable for DIY electronics, robotics, industrial control panels, automotive projects, and various electrical equipment.
Note: Product appearance may vary slightly depending on the manufacturing batch while maintaining identical specifications and electrical performance.
Features
- SPDT (Single Pole Double Throw) ON-ON switching
- Compact snap-in panel mount design
- Rated for 3A at 250V AC
- 3-pin terminal configuration
- Quick installation without screws
- Durable plastic housing with metal contacts
- Long mechanical life of up to 100,000 switching cycles
- Reliable electrical performance
- Compact size for space-saving installations
- Suitable for industrial and DIY applications
Benefits
- Allows easy switching between two active circuits
- Simple snap-in installation reduces assembly time
- Reliable switching for long-term operation
- Compact design fits small control panels
- Suitable for AC-powered equipment and control circuits
- Ideal for polarity reversing and function selection
- High durability minimizes maintenance requirements
- Versatile solution for electronic and electrical projects
Applications
- Robotics
- DIY Electronics Projects
- Industrial Control Panels
- Automotive Electronics
- Motor Direction Control
- Power Supply Switching
- Home Appliances
- Water Dispensers
- Electronic Instruments
- Automation Equipment
- Test Equipment
- General Electrical Switching
Package Includes
- 1 x KCD1-108 SPDT ON-ON Rocker Switch
Specifications
| Parameter | Specification |
|---|---|
| Model | KCD1-108 |
| Product Type | Rocker Switch |
| Switch Configuration | SPDT (Single Pole Double Throw) |
| Toggle Mode | ON-ON |
| Number of Pins | 3 |
| Rated Voltage | 250V AC |
| Rated Current | 3A |
| Mounting Type | Snap-In Panel Mount |
| Panel Cut-Out | 9 × 14 mm |
| Color | Black |
| Material | Plastic & Metal |
| Mechanical Life | 50,000–100,000 Cycles |
| Insulation Resistance | ≥100 MΩ |
| Dielectric Strength | 1500VAC |
| Length | 15 mm |
| Width | 10.5 mm |
| Height | 16 mm |
| Weight | Approx. 3 g |
| Shipping Weight | 0.02 kg |
| Shipping Dimensions | 4 × 3 cm |
