Description:

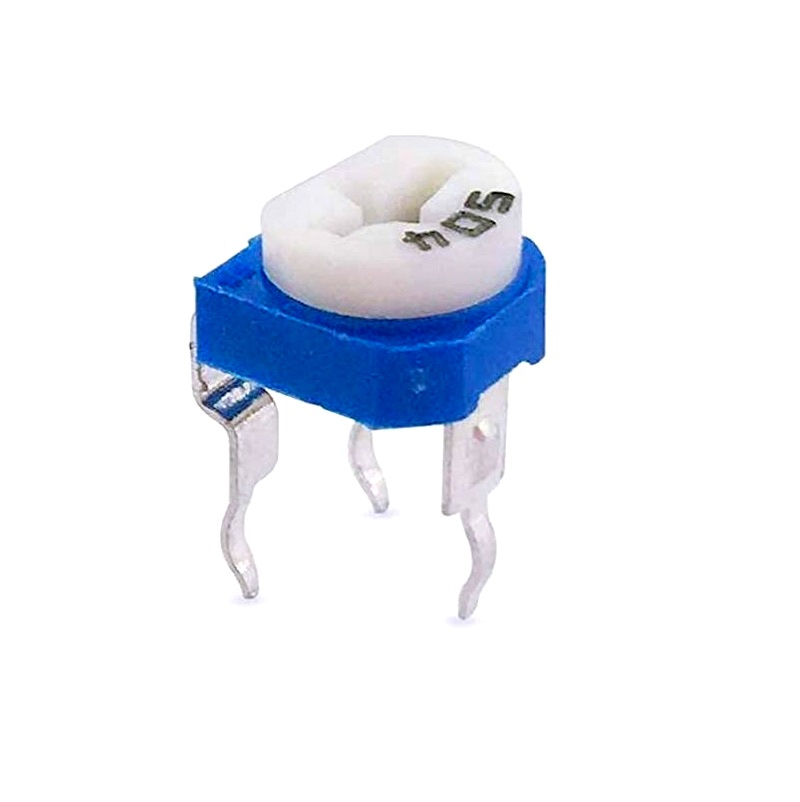

The 3306P-1-504 500kΩ Single Turn Cermet Trimming Potentiometer is a precision variable resistor designed for accurate circuit calibration, tuning, and resistance adjustment in electronic applications. Featuring a durable cermet resistive element and a top-adjust mechanism, this trimmer potentiometer provides smooth adjustment, excellent stability, and long operational life.
Designed for through-hole PCB mounting, this single-turn trimmer offers a 500kΩ resistance, 200mW power rating, and ±25% resistance tolerance, making it suitable for industrial control systems, instrumentation, communication equipment, power supplies, embedded electronics, and general-purpose PCB applications.
Note:
- Product images are for reference only. The actual product may vary depending on the manufacturing batch.
- Please refer to the datasheet available in the Attachments section for complete technical specifications.
Applications:
- Circuit calibration and trimming
- Industrial control equipment
- Power supply adjustment
- Instrumentation and measuring devices
- Communication equipment
- Embedded systems and controller boards
- DIY electronics and PCB prototyping
Features:
- 500kΩ resistance value
- Single-turn adjustment
- Top-adjust design for easy calibration
- High-quality cermet resistive element
- Through-hole PCB mounting
- 200mW power rating
- ±25% resistance tolerance
- Compact and reliable construction
- Excellent long-term stability
Package Includes:
- 1 x 3306P-1-504 500kΩ Single Turn Through Hole Cermet Trimming Potentiometer
Specifications:
| Series | 3306 |
| Resistance | 500kΩ |
| Trimmer Type | Single Turn |
| Element Material | Cermet |
| Adjustment Type | Top Adjust |
| Mounting Type | Through Hole |
| Number of Turns | 1 |
| Power Rating | 200mW |
| Resistance Tolerance | ±25% |
| Shipping Weight | 0.01 kg |
| Shipping Dimensions | 5 × 5 × 1 cm |
