Description

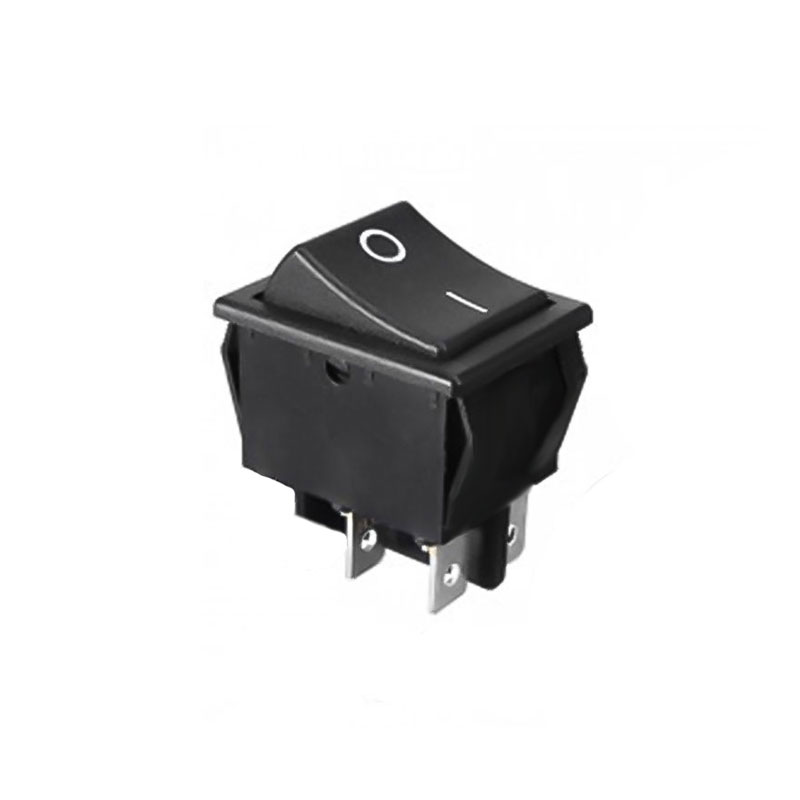

The 16A 250V AC DPST Rocker Switch is a heavy-duty, reliable power control solution engineered for demanding electronic and industrial applications. Featuring a DPST (Double-Pole, Single-Throw) configuration, this switch allows you to control two independent circuit paths simultaneously with a single, intuitive action. Its snap-in tab design ensures a secure, tool-free installation into panel cut-outs, providing a professional and clean finish for your projects.
This switch is built for high-performance power management, with a robust rating of 16A at 250VAC. With a mechanical and electrical lifespan of up to 100,000 cycles, it is designed to handle the rigorous demands of robotics, automotive motor control, and industrial equipment. Whether you are building a custom control interface or replacing a high-load component, this DPST switch offers the durability and versatility required for professional-grade power control.
Key Features

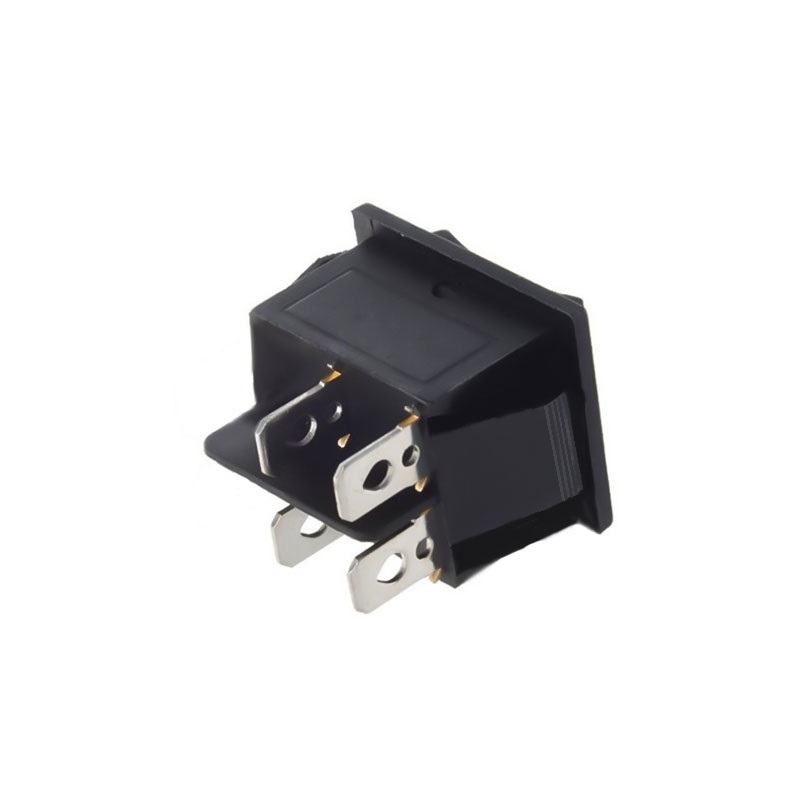

- Design: 4-Pin DPST (Double-Pole, Single-Throw) ON-OFF configuration
- Mounting: Snap-in “tab” design for fast, screwless panel installation
- Durability: Heavy-duty construction rated for 50,000–100,000 cycles
- Visibility: Clearly marked “I” (On) and “O” (Off) positions
- Capacity: High-load rating (16A @ 250VAC) suitable for power-intensive applications
- Versatility: Compact form factor suitable for diverse general-purpose use
Technical Benefits
- DPST architecture provides simultaneous control of two power lines, ideal for safety and dual-channel applications
- Snap-in tabs significantly reduce assembly time and eliminate the need for mounting hardware
- Wide operating temperature range (-20°C to +85°C) ensures stable performance in diverse environments
- Robust housing provides excellent heat resistance and structural integrity
- Pack of 2 offers exceptional value for dual-circuit control or high-reliability spares
Applications
- Robotics & Automation: Power management for DC motors and high-current electronic modules
- Automotive & Marine: Primary power and accessory switching for cars, boats, and motorcycles
- Industrial: Heavy-duty power control for industrial machinery and water dispensers
- DIY Projects: Custom control panels, test benches, and industrial-grade prototypes
- Appliances: High-load power control for household and office electrical equipment
Package Includes
- 2 x 16A 250V AC DPST ON-OFF Rocker Switches
Specifications
| Parameter | Specification |
|---|---|
| Switch Type | DPST (ON-OFF) |
| Max Rating | 16A @ 250V AC (8A @ 125/250V AC) |
| Panel Cut-Out | 25.2 x 30 x 18 mm |
| Dimensions | 30 x 25 x 26.5 mm |
| Switching Life | 50,000 – 100,000 Cycles |
| Operating Temp | -20°C to +85°C |
