Description

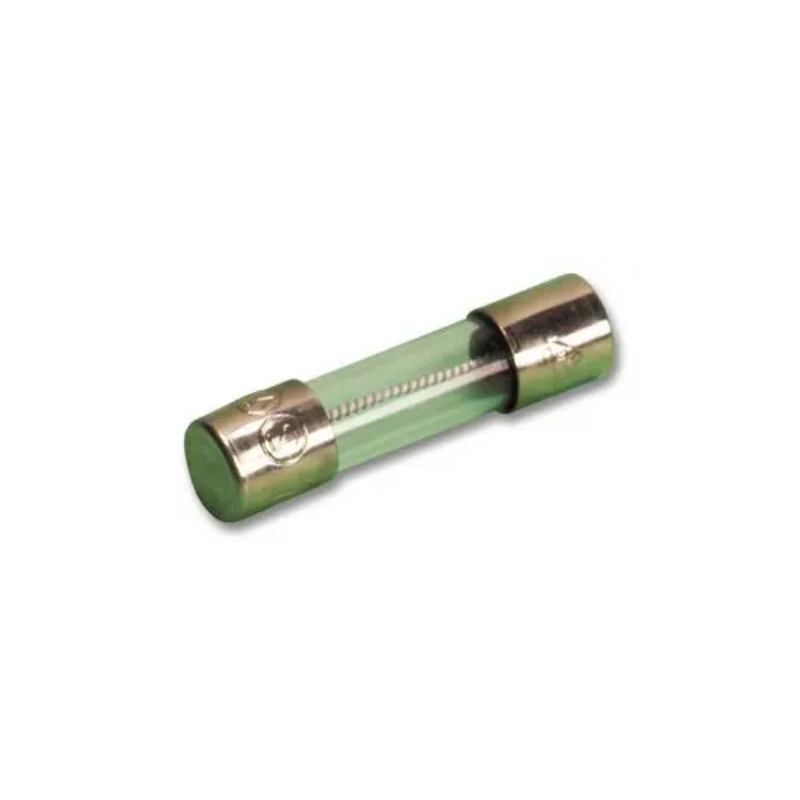

The Littelfuse 02183.15MXP is a high-quality time-lag (slow-blow) glass body cartridge fuse from the internationally recognized 218 series. Engineered to meet strict IEC 60127-2 standards, this fuse provides reliable, globally compatible overcurrent protection for a wide range of appliances and internal electronic circuits.
Designed for supplementary protection, the 02183.15MXP is ideal for applications where transient surges or high inrush currents are present. Its time-lag characteristic allows it to withstand temporary overcurrent pulses without nuisance tripping, while still ensuring rapid disconnection during sustained fault conditions. With a universal 5mm x 20mm form factor, it is the perfect solution for critical component protection in industrial and consumer electronics.
Key Features
- IEC Standard Compliance: Meets IEC 60127-2 specifications, ensuring performance reliability for global applications.
- Time-Lag Protection: Slow-blow characteristic effectively handles inrush currents, preventing nuisance trips in inductive or capacitive loads.
- Versatile Application: Perfect for supplementary protection within appliances, power supplies, and control instrumentation.
- Industry-Standard Size: The classic 5x20mm glass cartridge design allows for easy integration into standard fuse holders and clips.
- Trusted Littelfuse Quality: Manufactured to high standards for consistent electrical characteristics and long-term durability.
Package Includes
- 1 x Littelfuse 02183.15MXP Time-Lag Cartridge Fuse (3.15A)
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | 02183.15MXP |
| Fuse Type | Cartridge Fuse (218 Series) |
| Current Rating | 3.15A |
| Voltage Rating | 250V AC |
| Blow Characteristic | Time Lag (Slow Blow) |
| Fuse Dimensions | 5 x 20 mm |
| Standard | IEC 60127-2 |
