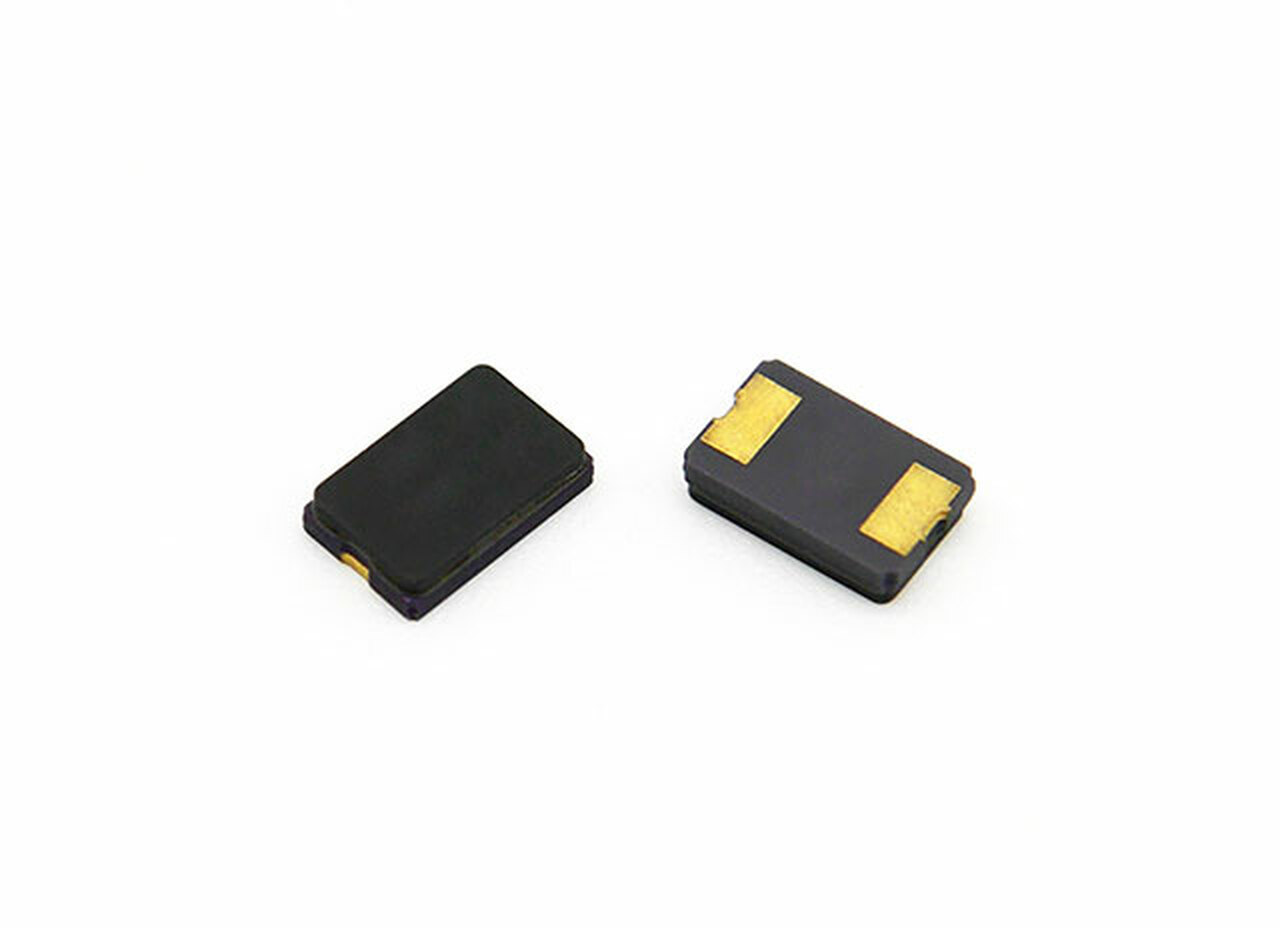

YSX530GA 27.12 MHz 20pF ±10ppm 2-Pad SMD/SMT Quartz Crystal

Description

The YSX530GA 27.12 MHz is a high-precision, 2-pad surface-mount quartz crystal designed for stable frequency control. The 27.12 MHz frequency is a significant standard, as it is a designated ISM (Industrial, Scientific, and Medical) band frequency, commonly used in RF applications, RFID systems, and near-field communication (NFC) modules.

Housed in a compact, durable 2-pad SMD package, this crystal is optimized for modern high-density PCB designs and automated assembly. With a load capacitance of 20 pF and a tight frequency tolerance of ±10 ppm, the YSX530GA ensures reliable performance in both RF transmission hardware and general-purpose digital timing circuits, providing the precision needed to minimize signal errors in sensitive communication equipment.

Features

• 27.12 MHz nominal frequency (Standard for ISM band and RFID/NFC applications)
• ±10 ppm high-precision frequency tolerance
• 20 pF load capacitance
• Robust 2-pad SMD/SMT surface-mount configuration
• Excellent mechanical and environmental reliability
• Optimized for automated high-density PCB assembly

Applications

• RFID and Near-Field Communication (NFC) systems
• ISM Band RF communication hardware
• Wireless data transmission modules
• Industrial and consumer electronic control units
• General purpose high-precision timing

Package Includes

• 1 x YSX530GA 27.12 MHz 20pF 10PPM 2-Pad SMD Quartz Crystal

Specifications
