Description

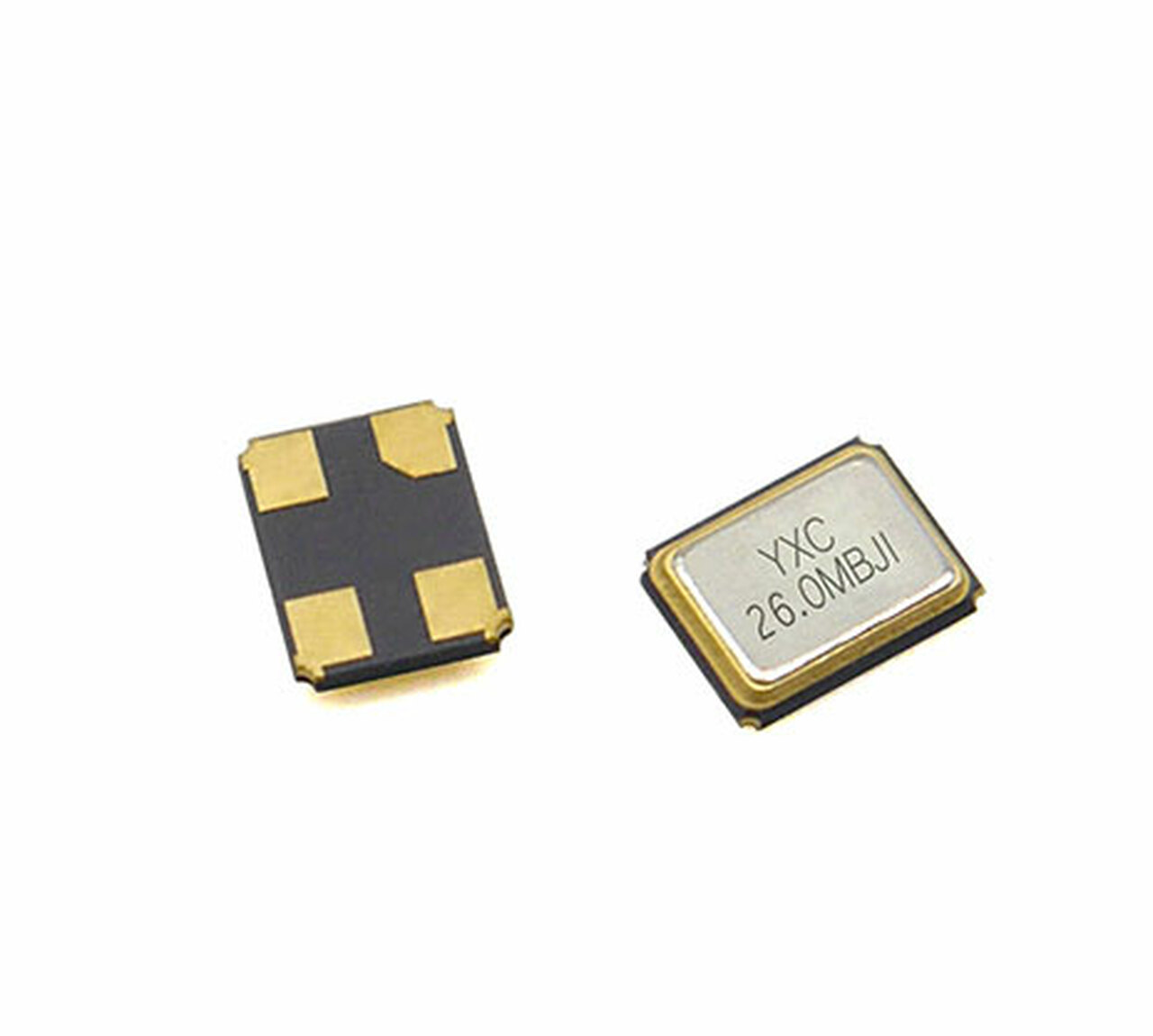

The YSX321SL 26 MHz is a high-precision, 4-pin surface-mount quartz crystal housed in a durable metal package. Operating at a nominal frequency of 26 MHz, this component is widely used in wireless communication hardware, including Wi-Fi modules, Bluetooth transceivers, and mobile device chipsets, where precise timing is required to maintain reliable radio frequency (RF) signal synchronization.
Featuring a 4-pin SMD configuration and a rugged metal surface finish, the YSX321SL offers superior electromagnetic shielding, which is critical for reducing EMI/RFI noise in compact, high-frequency radio applications. With a load capacitance of 12 pF and a tight frequency tolerance of ±10 ppm, this crystal ensures a clean and stable clock source, helping to maximize the performance and range of wireless data transmission. This pack includes two units, making it an excellent choice for multi-radio designs or prototyping.
Features
- 26 MHz nominal frequency (Commonly used for wireless RF references)
- ±10 ppm high-precision frequency tolerance
- 12 pF load capacitance
- Robust 4-pin SMD configuration with metal surface housing
- Enhanced electromagnetic shielding
- Pack of 2 units included
Applications
- Bluetooth and Wi-Fi communication modules
- RF transceiver clocking
- Mobile device and IoT hardware
- Wireless data synchronization
- General-purpose digital timing and control
Package Includes
- 2 x YSX321SL 26 MHz 12pF 10PPM 4-Pin SMD Metal Surface Quartz Crystal
Specifications
| Parameter | Specification |
|---|---|
| Part Number | YSX321SL |
| Frequency | 26 MHz |
| Frequency Tolerance | ±10 ppm |
| Load Capacitance | 12 pF |
| Number of Pins | 4 |
| Termination Type | SMD/SMT |
| Quantity | Pack of 2 |
| Shipping Weight | 0.001 kg |
| Shipping Dimensions | 4 × 4 × 1 cm |
