Description

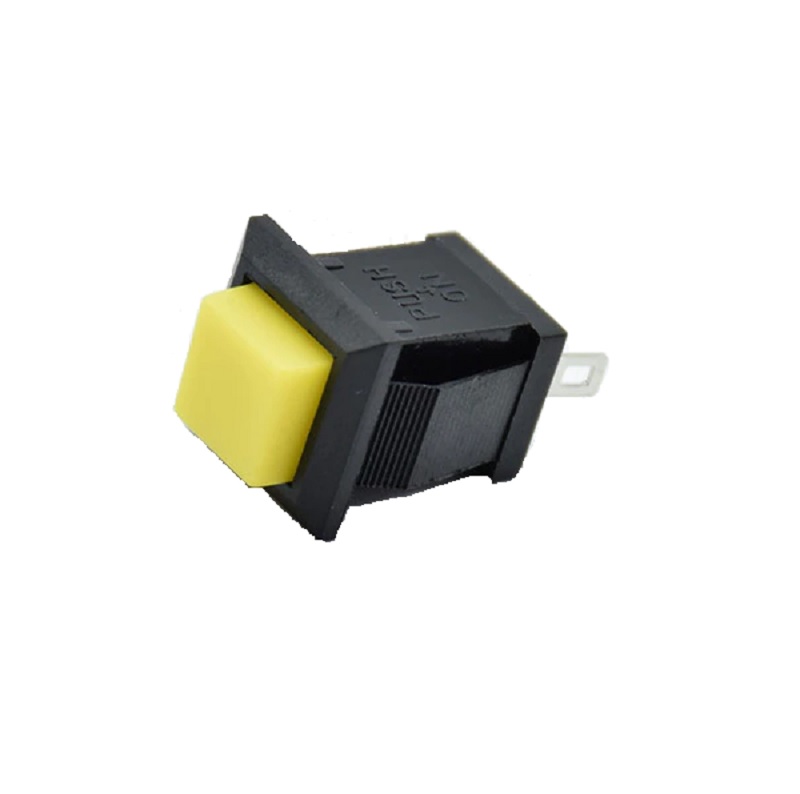

The DS-430 Momentary Push Button Switch is a compact and reliable control component engineered for “Normally Open” (NO) circuit operations. Featuring a “Push-to-Make” mechanism, this switch completes the circuit only while the button is pressed, making it perfect for signal triggering, manual user input, and momentary control tasks in various electronic devices.
Constructed from high-durability plastic, this switch provides excellent electrical conductivity and reliable performance across a wide operating temperature range of -25°C to 85°C. Its 10mm mounting footprint and simple 2-pin interface ensure easy integration into control panels and custom DIY electronic projects. The vibrant yellow square cap allows for clear visual identification of its function, ensuring intuitive user operation.
Features
- Momentary (self-reset) switching action
- Normally Open (NO) – Press to Make contact
- Compact square design for space-constrained layouts
- Standard 10mm mounting diameter
- Simple 2-pin terminal configuration
- High-quality, durable plastic construction
- Yellow cap for intuitive visual identification
- Wide operating temperature range (-25°C to 85°C)
Benefits
- Ideal for DIY prototyping, electronic repair, and custom control panels
- Responsive tactile feedback ensures precise user control
- Robust build quality ensures long-term operational stability
- Broad compatibility with standard low-voltage electrical loads
- Space-efficient design maximizes utility in tight enclosures
- Simple, straightforward installation process
Applications
- Industrial Control Panels
- DIY Electronics and Prototyping
- Kitchen and Home Appliances
- Instrumentation and Measurement Devices
- Custom Interface and Gadget Designs
- Electronic Repair Applications
- Robotics and Automation Systems
- Signal Triggering for Relays
Package Includes
- 1 x DS-430 10mm 2-Pin Yellow Square Momentary Push Button Switch (NO)
Specifications
| Parameter | Specification |
|---|---|
| Model No. | DS-430 |
| Action | Momentary (Self-Reset) |
| Switch Type | Normally Open (NO) – Press to Make |
| Operating Voltage | 1.5A @ 250V AC / 1A @ 125V AC |
| Mounting Hole | 10 mm |
| Terminals | 2-Pin |
| Color | Yellow |
| Operating Temp | -25°C to 85°C |
| Material | Plastic |
| Shipping Weight | 0.002 kg |
| Shipping Dimensions | 5 × 5 × 2 cm |
