Description

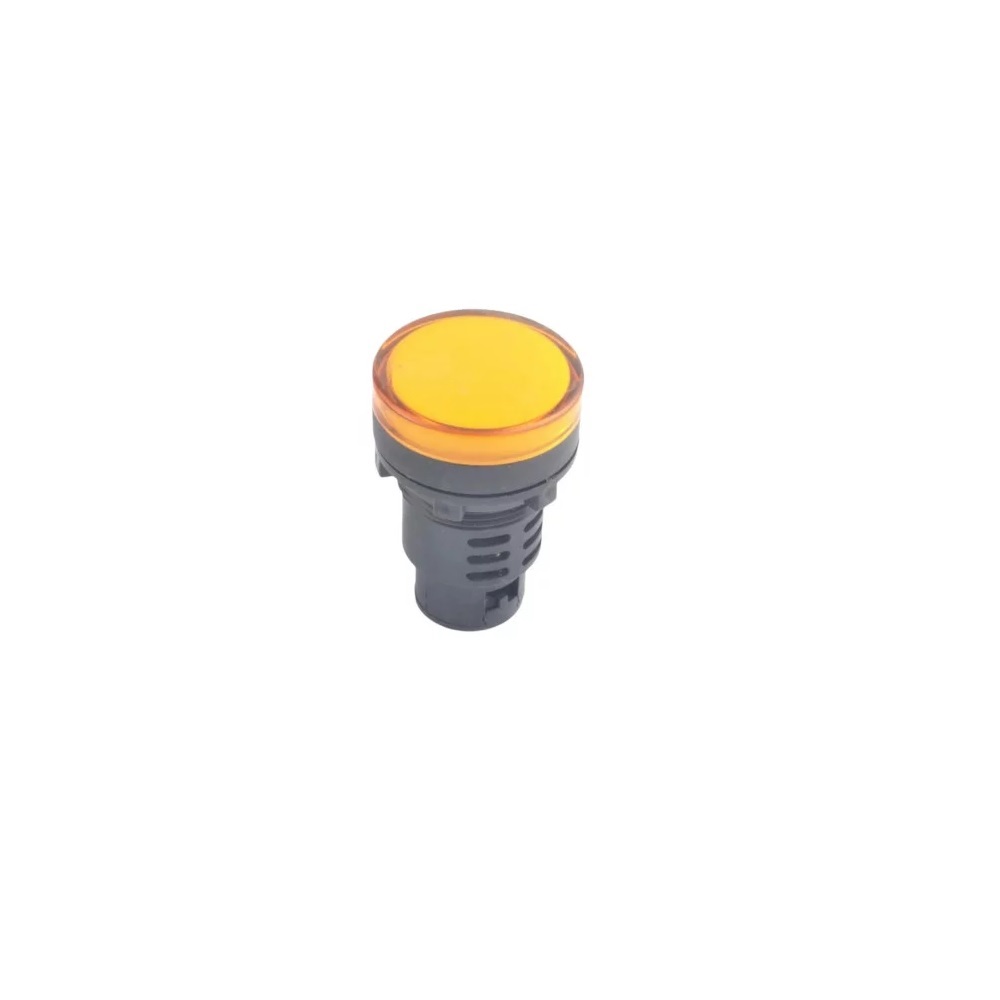

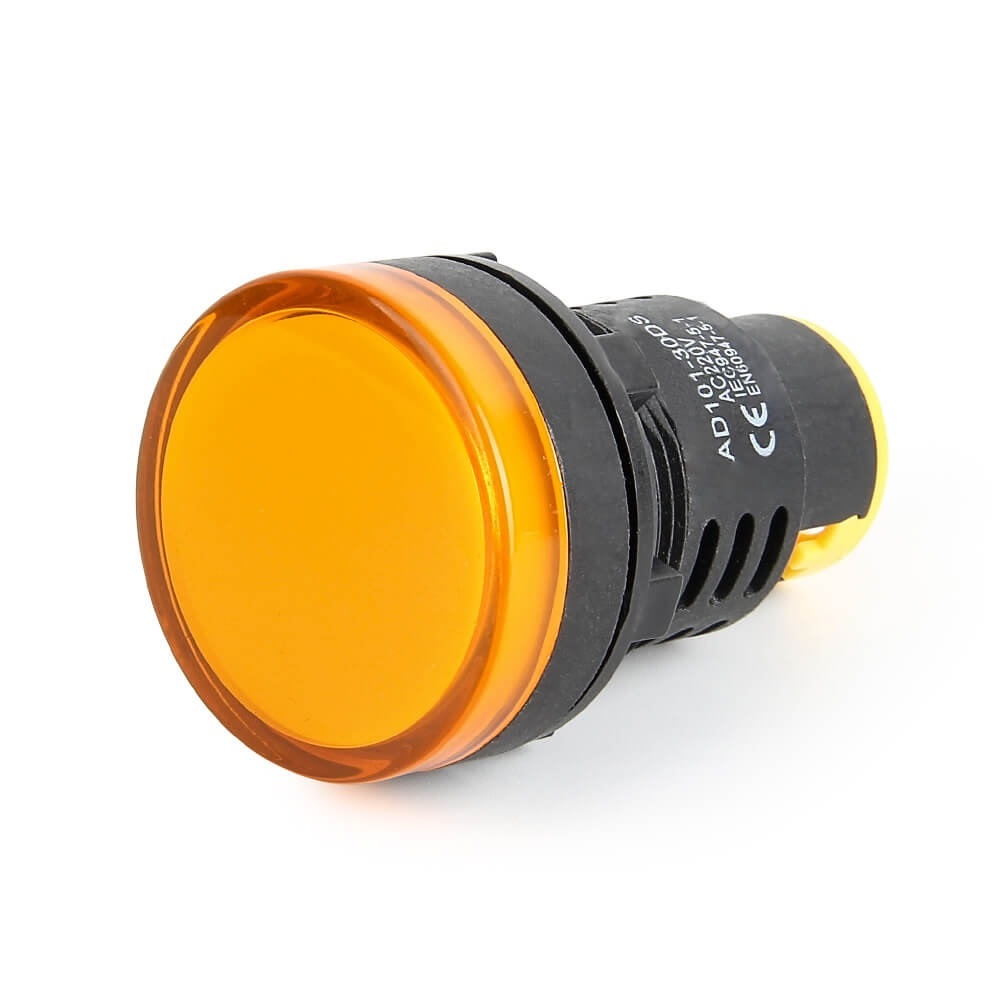

The AD16-30DS LED Power Pilot Indicator is a high-performance signaling solution engineered for modern industrial control panels. Utilizing efficient LED technology, this pilot lamp offers superior visibility for status monitoring, power-on/off indication, or diagnostic alerts while maintaining extremely low power consumption (≤20mA). Its robust PC plastic construction and compact design provide a professional, sleek appearance suitable for any industrial or electrical chassis.
The AD16-30DS is rated IP65, providing high resistance to dust and low-pressure water ingress, making it highly reliable for both indoor and semi-exposed applications. It features an integrated screw-lock mounting system for secure, vibration-resistant installation in standard 28MM panel cutouts.
Applications
- Electrical distribution panels and control cabinets
- 24V AC/DC machinery operational signaling
- Industrial automation and process status monitoring
- Telecommunication equipment diagnostic indicators
- Emergency alert and system status dashboards
Features
- Industrial Grade: High-efficiency LED source with long service life and exceptional brightness.
- Rugged Build: Shock-resistant PC plastic housing with an IP65 protection rating.
- Secure Mounting: Integrated screw-lock mechanism ensures stability in high-vibration environments.
- Energy Efficient: Extremely low power consumption (≤20mA) compared to traditional filament-based pilot lamps.
- Easy Installation: Designed for standard 28MM panel cutouts.
Package Includes
- 1 x AD16-30DS LED Power Pilot Signal Indicator (Yellow, 24V AC/DC)
Specifications
| Parameter | Specification |
|---|---|
| Model Number | AD16-30DS |
| Operating Voltage | AC/DC 24V |
| Current Consumption | ≤ 20 mA |
| LED Color | Yellow |
| Head Diameter | 36 mm |
| Mounting Hole Diameter | 28 mm |
| Body Material | Durable PC Plastic |
| Protection Standard | IP65 |
| Weight | 20 g |
| Shipping Weight | 0.025 kg |
| Shipping Dimensions | 7 × 4 × 5 cm |
