SPIDER Automation XT60 Series Adaptor Connection Plug | Series Battery Harness
Description
SPIDER Automation XT60 Series Adaptor Connection Plug provides a clean, reliable solution for RC modelers and engineers looking to increase system voltage by connecting two LiPo batteries in series. For example, linking two 3S 1000mAh packs together using this adapter combines them into a 6-cell equivalent pack with a total voltage of 22.2V.

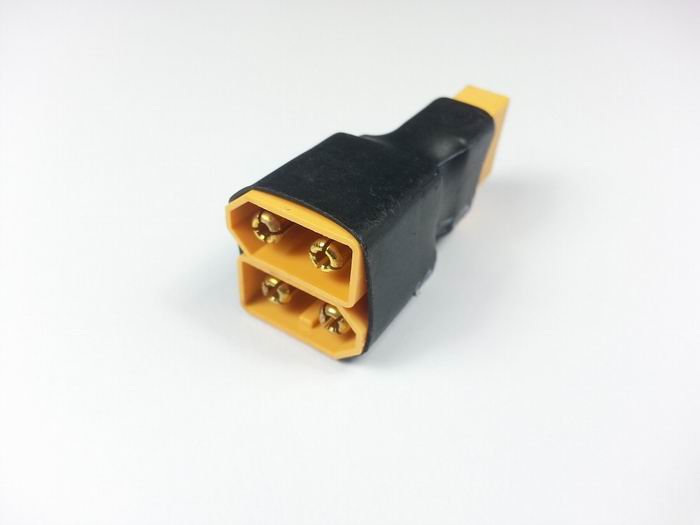

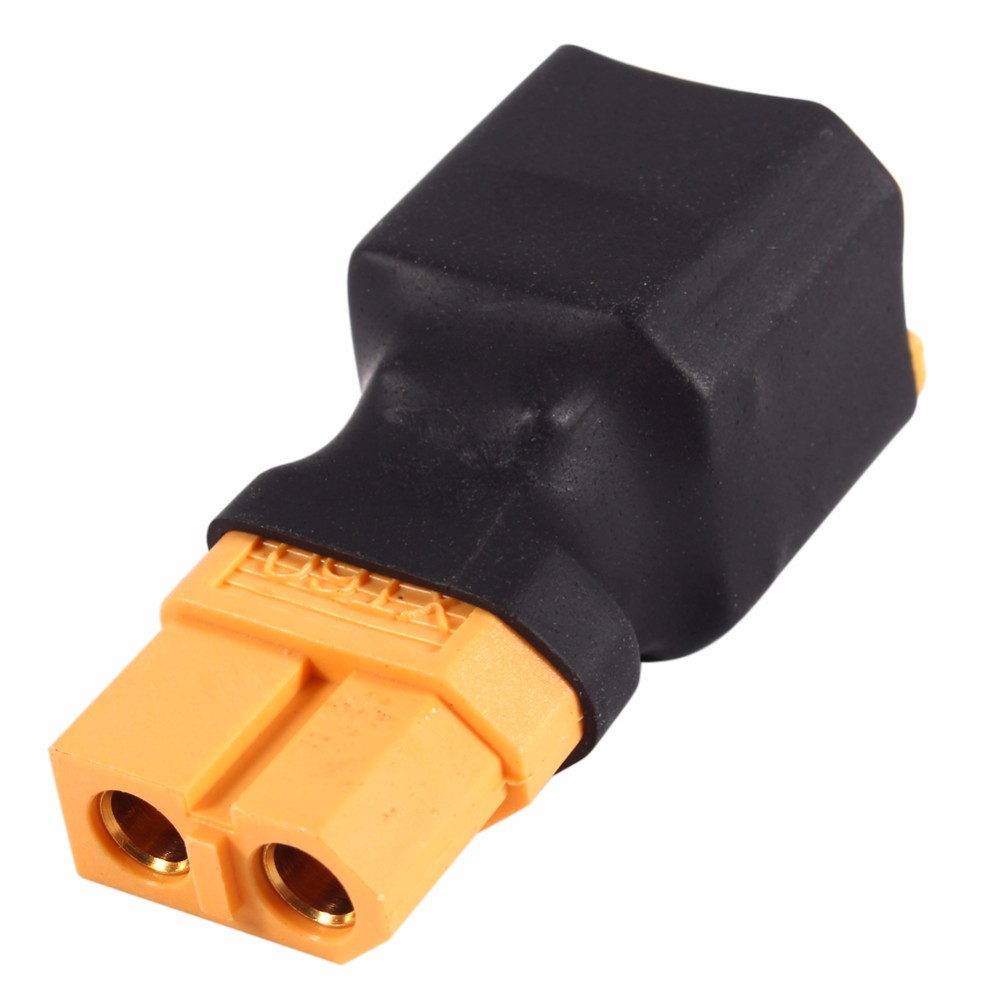

Unlike bulky custom wiring harnesses, this adapter plugs directly in without introducing unnecessary extra cable lengths that add resistance and weight. Built with two XT60 male connectors at one end and a single XT60 female connector at the other, the internal connections are professionally soldered and shielded with durable heat shrink for a secure, low-resistance finish capable of handling demanding high-power setups.
Key Features
- Series Voltage Configuration: Combines two separate battery packs into a single higher-voltage series circuit.
- Heavy-Duty Design: Engineered specifically for high-power RC and robotics applications.
- High-Temp Nylon Housing: Molded from premium high-temperature resistant nylon to prevent melting during high-current draws.
- Gold-Plated Contacts: Features gold-plated spring pins and sockets for minimal electrical resistance and optimal current flow.
- Minimalist Form Factor: Short layout avoids extra cable clutter and reduces overall model weight.
- Professional Assembly: Neatly soldered internal wiring protected by robust heat-shrink tubing insulation.
- High Current Handling: Rated for a steady 60A continuous current and up to 65A peak for 30 seconds.
Benefits
- Instant Voltage Boost: Easily achieve higher voltage tiers without needing to purchase dedicated high-voltage battery packs.
- Ultra-Low Resistance: Gold-plated contacts and direct-plug architecture minimize voltage drop and power loss under load.
- Reduced Weight & Space: Compact dimensions eliminate excess wiring harness lengths to save valuable space inside tight RC models.
- Durability & Safety: High-temperature nylon construction prevents thermal degradation during intense acceleration and heavy discharge cycles.
- Plug-and-Play Simplicity: Factory-soldered configuration allows instant, error-free deployment straight out of the package.
Applications
- RC Airplanes & Helicopters: Doubling pack voltage for high-performance brushless motor setups.
- RC Cars & Monster Trucks: Series configuration for high-speed ESC and motor power requirements.
- FPV Drones & Multirotors: Custom power distribution setups requiring higher cell counts from standard packs.
- Robotics & Heavy-Duty Prototyping: Series battery connections for high-draw DC motors and mobile robotic platforms.
Package Includes
- 1 x XT60 Series Adaptor Connection Plug (2 Male to 1 Female)
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand / Series | SPIDER Automation / XT60 Power Connectors |
| Item Type | Series Battery Adapter / Plug Connector |
| Model Type | XT60 Series Adaptor |
| Connector Configuration | 2 x Male, 1 x Female (Series Connection Layout) |
| Connector Material | Gold-Plated Pins/Sockets & High-Temperature Nylon Housing |
| Constant Current Capacity | 60A Continuous |
| Max Current Capacity | 65A (Up to 30 Seconds) |
| Physical Dimensions | 39 mm (Length) × 18 mm (Width) × 17 mm (Height) |
| Item Net Weight | 12 g |
| Package Shipping Weight | 0.016 kg (16 g) |
| Package Shipping Dimensions | 5 cm × 4 cm × 3 cm |
