Description

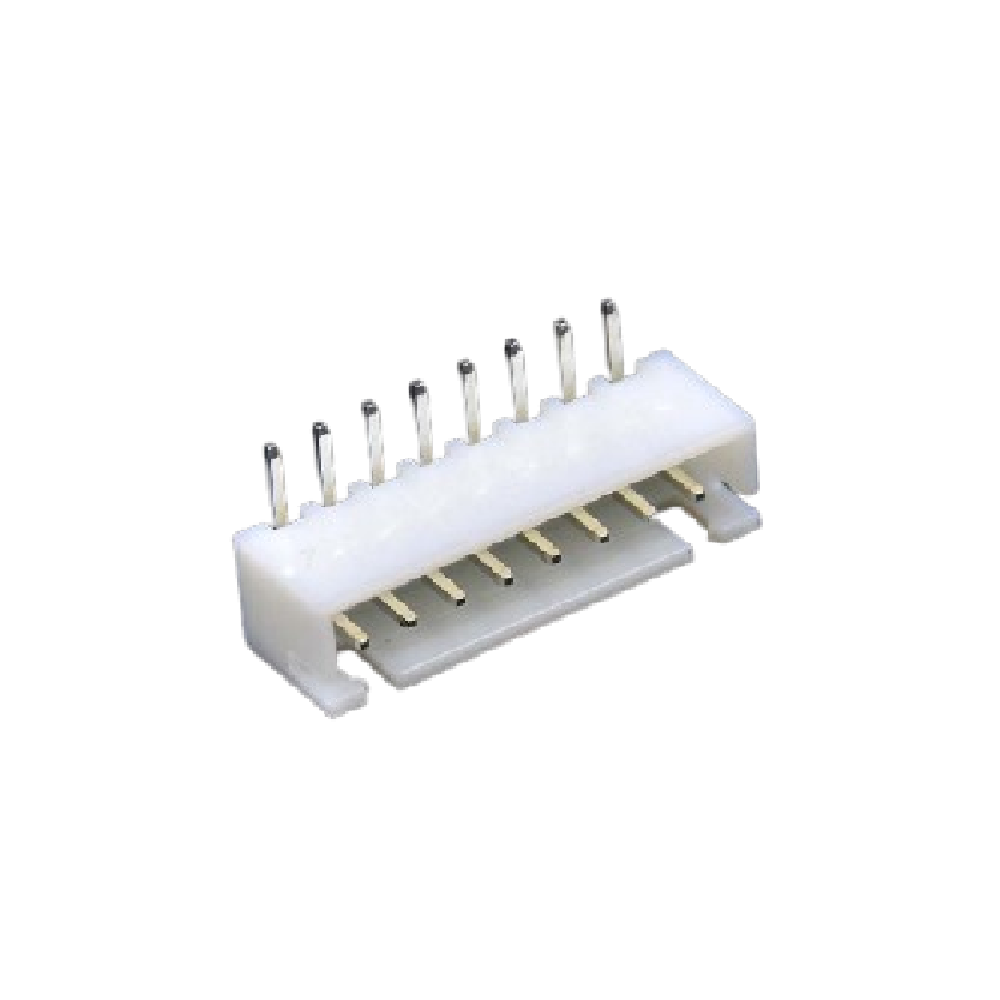

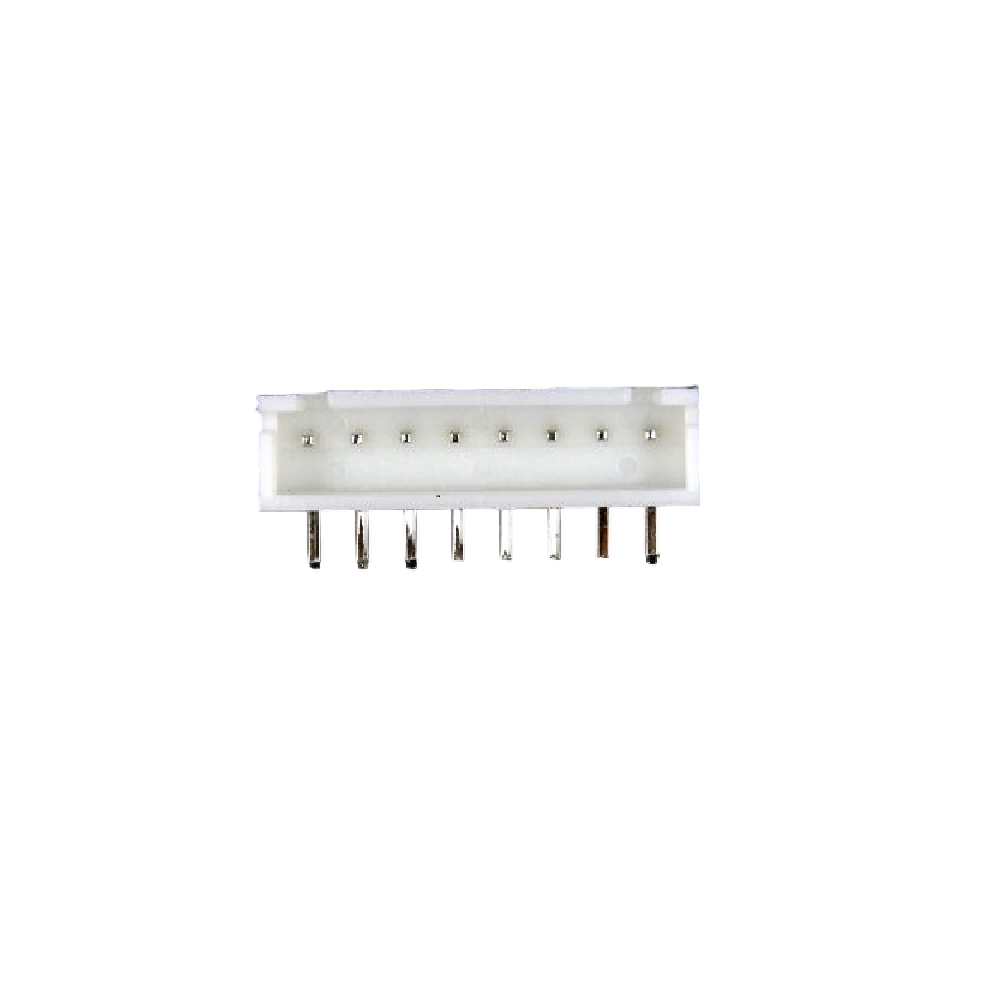

The Boyu XH-AW 2.5mm 8-Pin Right-Angle Wafer Male Connector (MPN: XH-AW) is a robust interconnect solution engineered for reliable PCB-to-wire interfacing. Featuring a space-saving right-angle design, this connector is ideal for applications where cable routing must be kept parallel to the circuit board. With a rated capacity of 3A and 250V AC/DC, it provides excellent electrical integrity and consistent performance for a wide range of electronic projects and industrial systems.
Key Features
- Right-Angle Design: Perfect for low-profile applications and efficient cable management within compact electronic enclosures.
- Robust Electrical Integrity: Supports up to 3A and 250V, with high insulation resistance (1000MΩ) and low contact resistance (20mΩ).
- High Durability: Engineered by Boyu for long-term reliability in diverse operating environments, with a temperature range of -25°C to +85°C.
- Voltage Endurance: Capable of withstanding 1000V AC per minute, ensuring safety and stability during electrical surges.
- Through-Hole Mounting: Provides a secure, vibration-resistant connection for permanent PCB installation.
Applications
- PCB Assemblies: An essential component for routing power and data signals on circuit boards.
- Electronic Systems: Suitable for internal wiring in consumer electronics, small appliances, and control panels.
- Prototyping & Industrial Use: A reliable choice for custom wiring harnesses and high-density electronic designs.
Package Includes
- 1 x Boyu XH-AW 2.5mm 8-Pin Right-Angle Wafer Male Connector
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Boyu |
| Item Type | Right-Angle Wafer Male Connector |
| Pitch | 2.5 mm |
| Number of Pins | 8 |
| Rated Voltage | 250 V AC/DC |
| Rated Current | 3 A AC/DC |
| Operating Temperature | -25°C to +85°C |
| Contact Resistance | 20 mΩ |
| Insulation Resistance | 1000 MΩ |
| Shipping Weight | 0.001 kg |
| Shipping Dimensions | 5 x 5 x 2 cm |
