Description

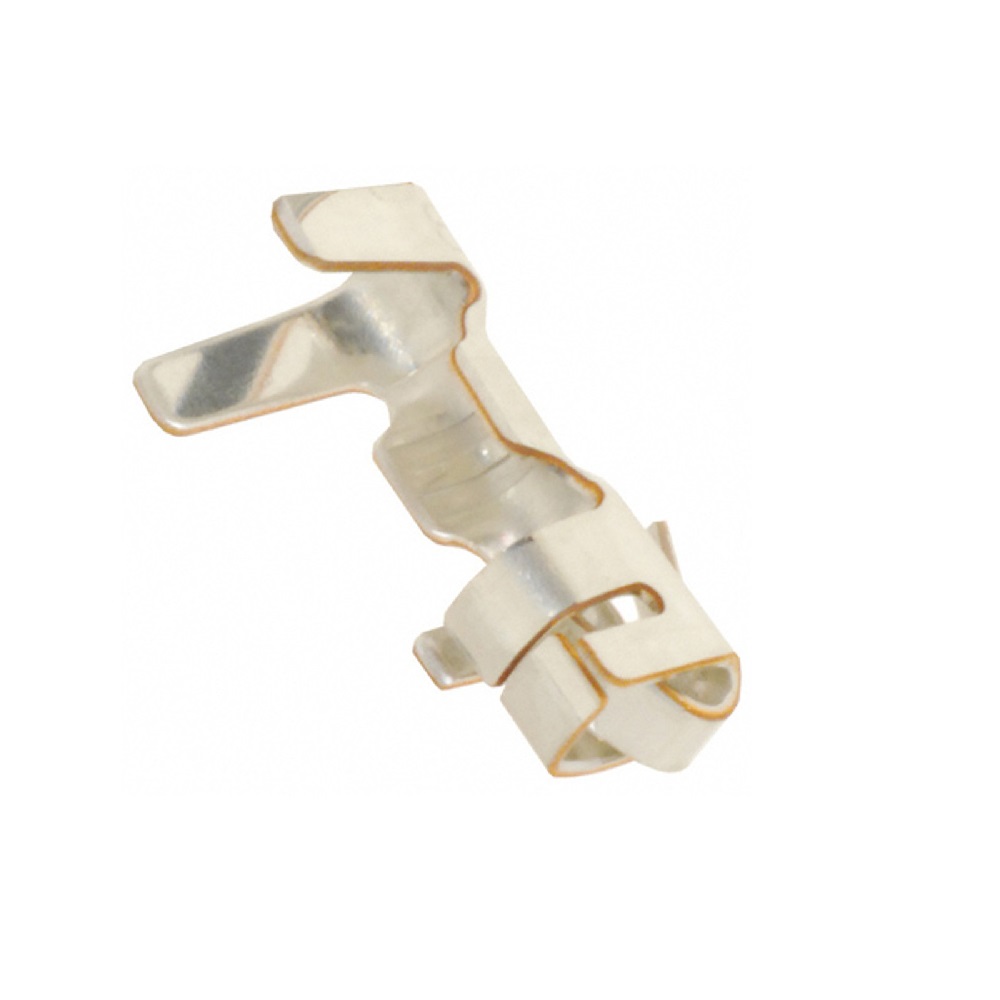

The XH 2.5mm pitch female crimp terminal connector is engineered for high-reliability electrical connections. Utilizing a secure crimp termination method, it ensures a stable and long-lasting contact interface. The terminal features a high-quality tin contact finish, which effectively minimizes contact resistance while enhancing overall electrical conductivity for your circuits.
Designed for versatility, this connector is compatible with a wide range of wire gauges from 24 to 30 AWG, making it an excellent choice for diverse wiring applications. Whether you are working on prototyping, hobbyist electronics, or industrial wiring, this component provides the flexibility and performance required for professional-grade electrical setups.
Features
- Secure Crimp Termination: Ensures a firm, stable connection that resists vibration and mechanical stress.
- Enhanced Conductivity: Tin-plated contact finish maintains low contact resistance for efficient signal and power transfer.
- Wide Wire Compatibility: Supports a flexible range of wire gauges (24 to 30 AWG) to suit different project needs.
- Reliable Performance: Built to provide consistent electrical integrity in various wiring environments.
- Professional Grade: High-quality construction ideal for both experimental DIY projects and final product manufacturing.
Applications
- Consumer Electronics: Standard choice for internal connectivity in audio systems and small appliances.
- PCB-to-Wire Links: Perfect for establishing modular connections between control boards and peripheral components.
- Industrial Automation: Suitable for reliable wiring in compact control panels and sensor modules.
- Prototyping & DIY: Excellent for breadboarding or custom-built hardware requiring secure, removable connections.
- Power & Signal Routing: Reliable interface for low-voltage power distribution and data signal routing.
Package Includes
- 1 x XH 2.5mm Crimp Terminal Connector Female
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Type | Rectangular Connector |
| Gender | Female |
| Pitch Spacing | 2.5mm (as per series) |
| Model Series | XH |
| Number of Rows | 1 |
| Mounting Type | Through-Hole |
| Wire Gauge Compatibility | 24 to 30 AWG |
| Operating Temperature | -25°C to +85°C |
| Shipping Weight | 0.001 kg |
| Shipping Dimensions | 5 × 5 × 3 cm |
