Description

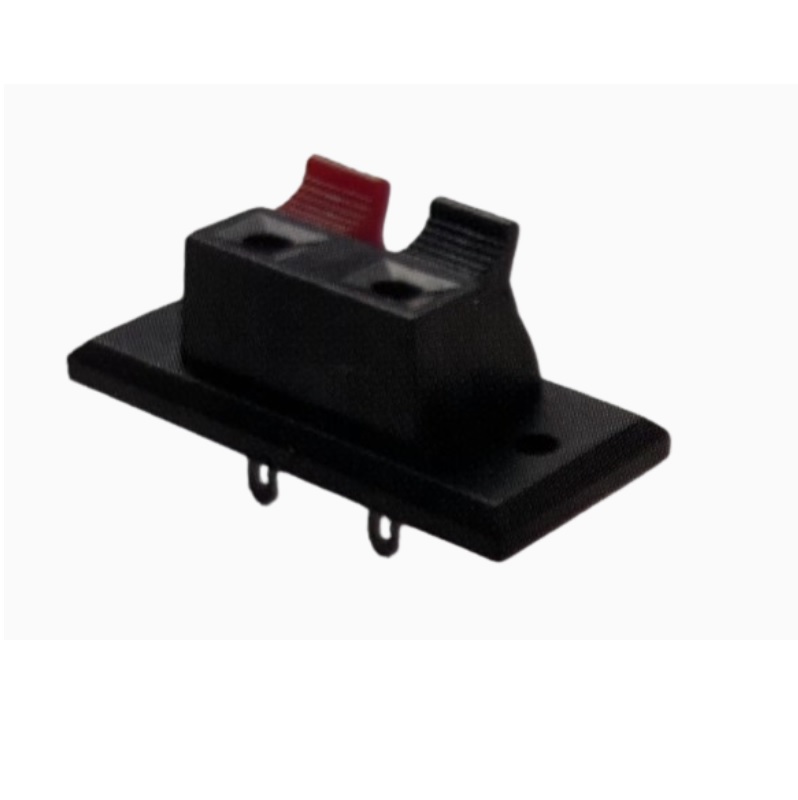

The WP-01 WP Connector Socket is a versatile and robust component engineered for reliable performance in a wide array of electrical applications. Designed to operate efficiently within a temperature range of -40°C to 55°C, this socket maintains consistent electrical conductivity even in demanding environments. With a rated load of AC 50V and 3A, it facilitates efficient power transmission for various electronic and industrial systems.
The WP-01 is built with a focus on safety and longevity, featuring low contact resistance (≤0.03Ω) to minimize energy loss and a high insulation resistance (≥1000MΩ) to effectively prevent electrical leakage. It is capable of withstanding voltage fluctuations up to AC 500V (50Hz) per minute, ensuring exceptional safety. With an impressive mechanical lifespan of 10,000 cycles, this connector is designed for long-term reliability and consistent performance in your electrical circuits.
Note: Product images are shown for reference only. The actual product may vary slightly in appearance. Please verify your system’s voltage and current requirements against these specifications before installation.
Features
- Model: WP Connector Socket WP-01
- Operating temperature range: -40°C to +55°C
- Rated electrical load: AC 50V at 3A
- Superior conductivity with contact resistance ≤0.03Ω
- High insulation resistance (≥1000MΩ) prevents leakage
- Withstand voltage: AC 500V (50Hz)/min
- Exceptional mechanical lifespan of 10,000 cycles
- Designed for flexible integration in various electrical systems
Benefits
- Highly reliable performance in diverse environmental conditions
- Minimizes energy loss, enhancing the efficiency of your circuits
- Robust design ensures safety against voltage fluctuations
- High cycle count provides excellent long-term durability
- Easy to integrate into professional and DIY electrical projects
Applications
- General Purpose Electrical Connections
- Industrial Control Panels
- Power Distribution Modules
- Electronic Test Equipment
- Communication Interface Hubs
- Prototyping and DIY Electronics
- Automotive Electrical Sub-systems
- Audio and Signal Distribution
Package Includes
- 1 x WP Connector Socket – WP-01
Specifications
| Parameter | Specification |
|---|---|
| Model | WP-01 |
| Rated Input | AC 50V / 3A |
| Contact Resistance | ≤0.03 Ω |
| Insulation Resistance | ≥1000 MΩ |
| Withstand Voltage | AC 500V (50Hz)/min |
| Operating Temperature | -40°C to +55°C |
| Shipping Weight | 0.006 kg |
| Shipping Dimensions | 9 × 7 × 3 cm |
