Description

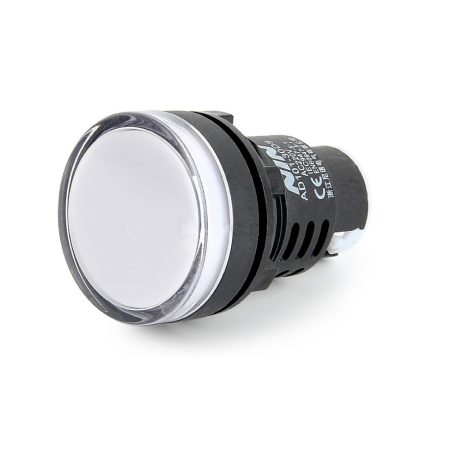

The AD16-30DS LED Power Pilot Indicator is a high-performance signaling solution designed to replace traditional incandescent pilot lamps in industrial control systems. Utilizing energy-efficient LED technology, this pilot light provides brilliant, high-visibility illumination for power-on status, circuit monitoring, or equipment diagnostics. Its compact design ensures a systematic and professional appearance on control dashboards, electrical cabinets, and industrial chassis.
Encased in durable PC plastic, the AD16-30DS is built to withstand significant mechanical shock and environmental stress. It features an IP65 protection rating, ensuring reliable operation even in dusty or wet environments, making it an ideal choice for telecommunications and heavy electrical apparatus. The unit is designed for secure, vibration-resistant installation using an integrated screw-lock mounting system.
Applications
- Electrical distribution panels and control cabinets
- Power availability and status monitoring in 24V DC/AC circuits
- Industrial automation and machinery operational signaling
- Telecommunication equipment status indicators
- Emergency alert and system diagnostic dashboards
Features
- Industrial Grade: High-efficiency LED source with long service life and exceptional brightness.
- Rugged Build: Shock-resistant PC plastic housing with an IP65 protection rating.
- Secure Mounting: Integrated screw-lock mechanism ensures stability in high-vibration applications.
- Energy Efficient: Very low power consumption (≤20mA) compared to traditional filament-based pilot lamps.
- Easy Installation: Designed for standard 28MM mounting holes.
Package Includes
- 1 x AD16-30DS LED Power Pilot Signal Indicator (White, 24V AC/DC)
Specifications
| Parameter | Specification |
|---|---|
| Model Number | AD16-30DS |
| Operating Voltage | 24V AC/DC |
| Current Consumption | ≤ 20 mA |
| LED Color | White |
| Head Diameter | 36 mm |
| Mounting Hole Diameter | 28 mm |
| Body Material | Durable PC Plastic |
| Protection Standard | IP65 |
| Weight | 20 g |
| Shipping Weight | 0.025 kg |
| Shipping Dimensions | 7 × 4 × 5 cm |
