Description

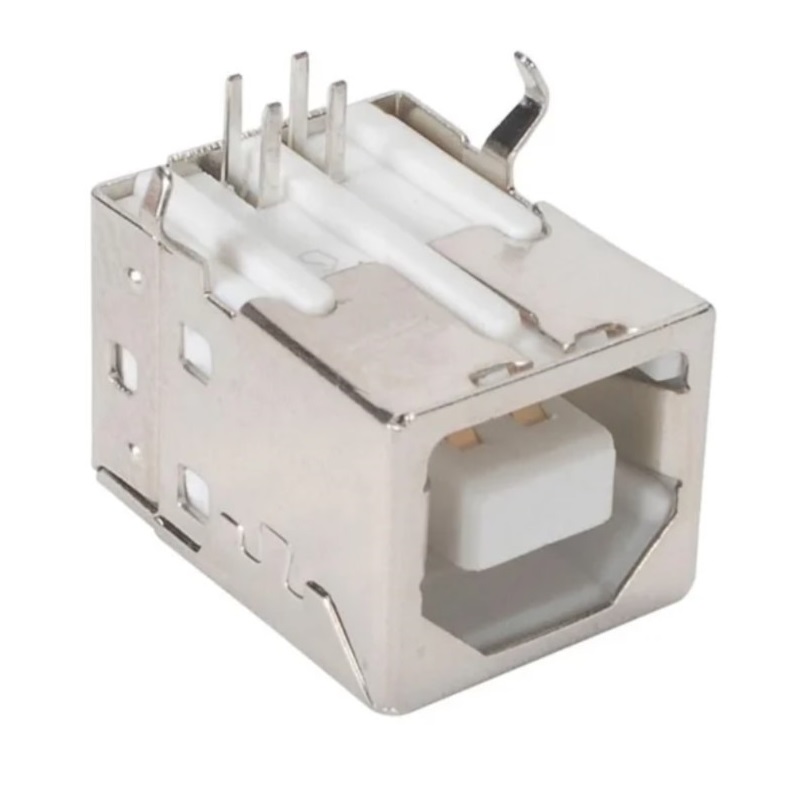

The JDH-11 USB Connector is a robust and highly reliable electronic component engineered for consistent performance in a wide range of applications. Designed to operate efficiently within a harsh temperature range of -40°C to 70°C, this connector ensures stable electrical connectivity in diverse environmental conditions. With a rated load of DC 30V and 0.5A, it provides a dependable interface for various digital and electronic devices.
The JDH-11 is built for safety and efficiency, featuring low contact resistance (≤0.03Ω) to minimize energy loss and a high insulation resistance (≥100MΩ) to prevent electrical leakage. It is capable of withstanding voltage fluctuations up to AC 250V (50Hz) per minute, ensuring operational safety. With an impressive mechanical lifespan of 10,000 cycles, this connector is designed for long-term reliability and consistent performance in your electronic systems.
Note: Product images are shown for reference only. The actual product may vary slightly in appearance. Please verify your device’s USB port configuration and voltage requirements against these specifications before installation.
Features
- Model: USB Connector JDH-11
- Wide operating temperature range: -40°C to +70°C
- Rated electrical load: DC 30V at 0.5A
- Superior conductivity with contact resistance ≤0.03Ω
- High insulation resistance (≥100MΩ) prevents leakage
- Withstand voltage: AC 250V (50Hz)/min
- Exceptional mechanical lifespan of 10,000 cycles
- Robust design for reliable daily use
Benefits
- Highly reliable performance in diverse environmental conditions
- Minimizes energy loss, enhancing the efficiency of data and power transfer
- Robust build ensures safety against voltage fluctuations
- High cycle count provides excellent long-term durability
- Easy to integrate into professional and DIY electronic projects
Applications
- Computer Peripherals and Accessories
- Data Transfer and Communication Modules
- Consumer Electronic Devices
- Electronic Prototyping and Development Boards
- Power Charging Interfaces
- Custom USB Cable Assemblies
- DIY Electronics and Repairs
Package Includes
- 1 x USB Connector – JDH-11
Specifications
| Parameter | Specification |
|---|---|
| Model | JDH-11 |
| Rated Input | DC 30V / 0.5A |
| Contact Resistance | ≤0.03 Ω |
| Insulation Resistance | ≥100 MΩ |
| Withstand Voltage | AC 250V (50Hz)/min |
| Operating Temperature | -40°C to +70°C |
| Shipping Weight | 0.005 kg |
| Shipping Dimensions | 9 × 7 × 2 cm |
