(SPIDER Automation) TowerPro MG959 Full CNC Alloy Case High Torque Metal Gear Servo Motor (28-32 KG) | Robotics & RC
Description

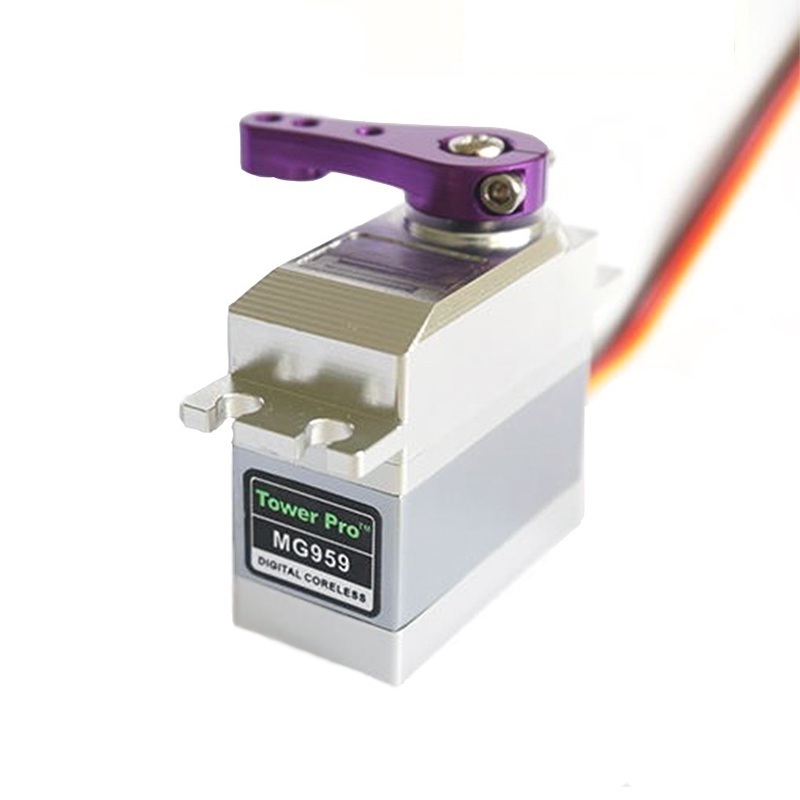

Power your heavy-duty mechanical projects, robotic builds, and large-scale RC models with the SPIDER Automation TowerPro MG959 High Torque Servo Motor. Housed in a rigid full CNC alloy case for superior physical protection and heat dissipation, this high-performance servo integrates a coreless motor drive, dual ball bearings, and heavy-duty metal gears. It generates a massive stall torque of up to 32 kg-cm at 6V, making it an affordable yet highly reliable choice for high-load automation tasks.
Key Features
- 28 to 32 kg-cm High Torque: Exceptional mechanical strength designed to handle heavy resistance and high-load articulation.
- Full CNC Alloy Enclosure: Rugged metal shell providing enhanced structural rigidity and protection against harsh operating environments.
- Metal Gear Train: Durable internal metal gears built to resist stripping under severe mechanical shocks.
- Dual Ball Bearing Support: Minimizes operational friction for smoother shaft rotation and increased longevity.
- Coreless Motor Drive: Provides efficient responsiveness and steady actuation under load.
- Standard Wire Configuration: 32 cm cable featuring standard Red (+), Brown (-), and Orange (Signal) pin-out layout.
Benefits
- Reliable Load Handling: High holding power ensures stability in multi-axis robotic joints and heavy steering linkages.
- Durable Build: CNC metal case handles physical stress far better than standard plastic-body servos.
- Complete Hardware Kit: Ships with matching servo arms, screws, and accessory parts for immediate mounting.
Applications
- Robotics & Automation: Heavy-duty robotic arms, automated test rigs, and high-load mechanical fixtures.
- RC Aircraft & Vehicles: Large-scale airplane control surfaces, monster truck steering, and custom ground vehicles.
- Custom Mechatronic Projects: Heavy moving mechanisms requiring dependable pulse-width positioning.
Package Includes
- 1 x TowerPro MG959 Full CNC Alloy Case High Torque Servo Motor
- 1 x Accessories & Servo Arm Parts Set
Specifications
| Parameter | Specification |
|---|---|
| Item Type | High Torque Metal Gear Servo Motor |
| Brand | SPIDER Automation |
| Model Series / Number | MG Series / MG959 (CNC Alloy Case Edition) |
| Torque Rating | 28 kg-cm to 32 kg-cm |
| Stall Torque @ 4.8V | 28.0 kg-cm |
| Stall Torque @ 6.0V | 32.0 kg-cm |
| Operating Speed @ 6V | 0.13 sec / 60° (at no load) |
| Control System | Pulse Width Control (1520 µs neutral) |
| Motor Type | Coreless Motor |
| Gear & Bearing Type | Metal Gears / Dual Ball Bearing |
| Cable Length | 32 cm (Red: Positive, Brown: Negative, Orange: Signal) |
| Physical Length | 55 mm |
| Certifications | CE & RoHS Compliant |
| Shipping Weight | 0.035 kg |
| Shipping Dimensions | 12 x 8 x 4 cm |
