Description

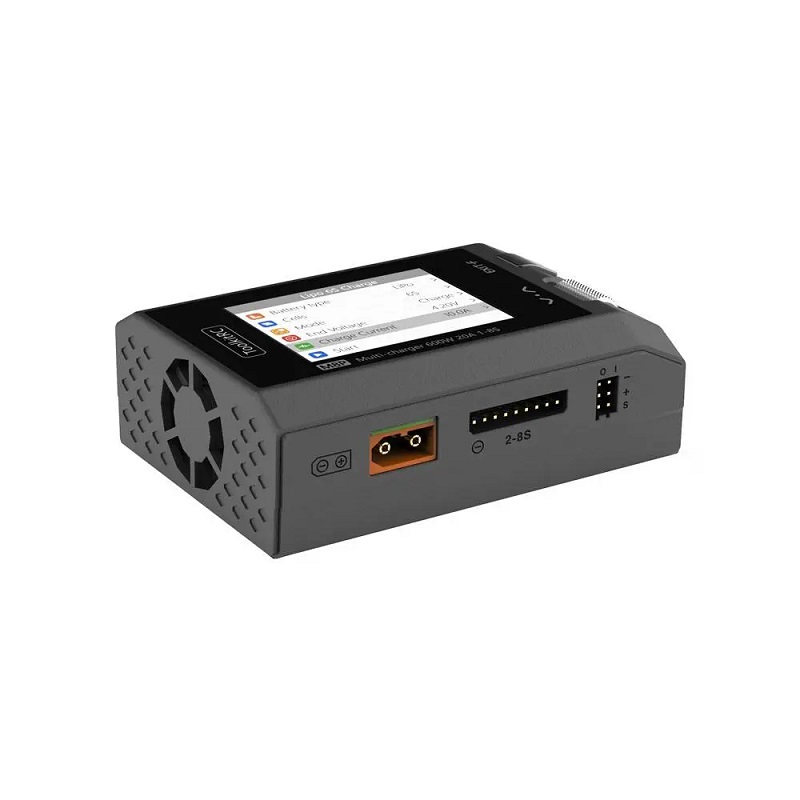

The ToolkitRC M8P DC Smart Charger is a high-power, versatile charging powerhouse engineered for demanding RC enthusiasts, FPV pilots, and robotics builders. Operating from a wide DC input range (7.0V to 35.0V at up to 25A), the M8P delivers an impressive 600W of charging power at up to 20A, supporting 1 to 8S LiPo, LiHV, LiFe, Lion, and LTO batteries, alongside up to 20S NiMh and 10S Pb packs.
Featuring a vibrant 2.4-inch IPS wide-angle color display (320×240 resolution, 65,535 colors) optimized for outdoor daylight visibility, the M8P introduces a tactile metal scroller wheel and a streamlined, intuitive interface. Equipped with elite cell balancing accuracy (<0.005V deviation, 1000mA balance current), a 600W recycle discharge mode, signal testing capabilities (PWM, PPM, SBUS), and a 5V/2.1A USB port, it packs professional-grade multi-function utility into a compact 180g housing.
Note: Product images are for reference only; actual appearance, firmware versions, or packaging may vary slightly based on manufacturing batches.
Key Features
- High-Power 600W Performance: Delivers up to 600W of charging power and 20A maximum current output from a 7.0–35.0V DC input source.
- Wide Battery Chemistry Support: Fully compatible with 1–8S LiPo, LiHV, LiFe, Lion, and LTO packs, as well as 1–20S NiMh and 1–10S Pb batteries.
- Elite Balance Precision: Advanced internal architecture delivers a high balance current (1000mA @ 4.2V) with exceptional balance accuracy of <0.005V.
- Vibrant Sunlight-Readable Display: 2.4-inch IPS wide-angle color screen renders 65,535 rich colors for crystal-clear visibility outdoors.
- Tactile Metal Scroller Control: Robust metal scroll wheel combined with a simplified, intelligent software interface makes navigation fast and precise.
- Multi-Function Tool Suite: Functions as a smart charger, high-power 600W recycle discharger, signal/servo tester (PWM, PPM, SBUS), wattmeter, and a 5V/2.1A USB power source.
Benefits
- Rapid Field Charging: Charge massive multi-cell flight packs quickly and safely at high amp rates between flying sessions.
- Superior Battery Health: High-precision cell balancing prevents voltage drift, maximizing the lifespan and safety of expensive lithium battery packs.
- Ergonomic Operation: The physical metal scroller offers superior tactile feedback compared to touchscreens, especially when wearing field gloves or working in outdoor environments.
Applications
- Large FPV Drones & X-Class Quads: High-capacity charging hub for heavy-duty 6S to 8S LiPo flight batteries.
- RC Airplanes, Helis & Surface Models: Versatile workbench and field station for high-cell-count battery cycling, charging, and maintenance.
- Signal Diagnostics & Testing: Handy tool for checking receiver outputs, servo signals, and throttle calibration on location.
Package Includes
- 1 x ToolkitRC M8P 1-8S 600W 20A DC Charger
- 1 x USB Cable for Firmware Updates
- 1 x Screen Protector Film
- 1 x User Manual / Quick Guide
Specifications
| Parameter | Specification |
|---|---|
| Item Type | High-Power DC Smart Balance Charger & Toolkit |
| Brand / Series Name | ToolkitRC (M Series) |
| Model Number | M8P |
| DC Input Voltage Range | 7.0 – 35.0V DC (Max 25A) |
| Charging Power | Max 600 W (Max 20.0A) |
| Discharge Power | 20W @ 3A (Normal Mode) Max 600W @ 20A (Recycle / Internal Mode) |
| Supported Battery Types & Cell Counts | LiPo / LiHV / LiFe / Lion / LTO (1 – 8S) NiMh (1 – 20S) Pb (1 – 10S) |
| Balance Current | 1000 mA @ 4.2V per cell |
| Balance Accuracy | < 0.005 V |
| USB Port Output | 5.0V @ 2.1A (Supports Phone Charging & Firmware Upgrade) |
| Signal Tester Modes | PWM / PPM / SBUS signal analysis and generation |
| Display Screen | 2.4-inch IPS Wide-Angle Color LCD (320 × 240 resolution, 65,535 colors) |
| Control Interface | Tactile Metal Scroller Wheel |
| Dimensions (L × W × H) | 99 mm × 72 mm × 35 mm |
| Net Weight | 180 g |
| Shipping Weight | 0.275 kg |
| Shipping Dimensions | 13 × 9 × 4 cm |
