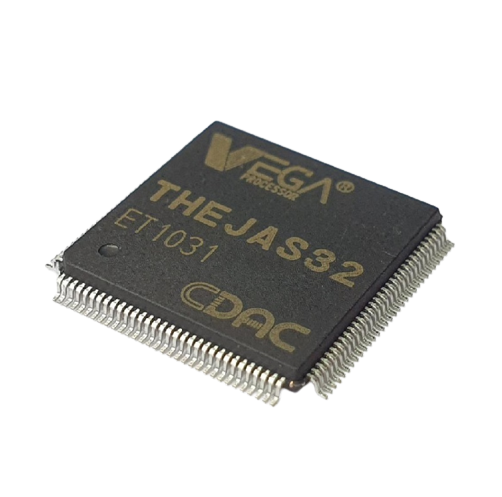

SPIDER Automation THEJAS32 RISC-V SoC Development Board | VEGA ET1031 Processor
Description
SPIDER Automation THEJAS32 SoC-Based Microprocessor Development Board is built around the VEGA ET1031, a compact, efficient 3-stage in-order 32-bit RISC-V processor core. Engineered for low-power IoT domains, industrial monitoring, and academic research, this system-on-chip combines a Harvard architecture with low interrupt latency and vectored interrupt support to deliver reliable real-time performance.
The board packs a robust set of onboard peripherals—including multiple UART, SPI, and I2C channels, PWM outputs, analog-to-digital converter channels, and 32 versatile GPIO pins. With a clock frequency scaling up to 100 MHz and 3.3V I/O compatibility, THEJAS32 provides engineers, students, and makers with an accessible indigenous platform to explore open-source RISC-V architecture and build custom embedded applications.
Key Features
- VEGA ET1031 Microprocessor: 32-bit RISC-V ISA core featuring a 3-stage in-order pipeline and high-performance multiply/divide unit.
- Clock Frequency: Operates reliably up to 100 MHz for demanding control loops and data processing tasks.
- Onboard Memory: Includes 128KB SRAM for firmware execution and variable data storage.
- Extensive Communication Interfaces: Multiple SPI, UART, and I2C serial communication ports for interfacing with sensors and displays.
- Analog & PWM Support: Built-in ADC channels and 8 PWM output channels for motor control and signal measurement.
- Flexible General-Purpose I/O: 32 GPIO pins featuring external interrupt capabilities on designated lines (GPIO0–GPIO12).
- Low-Power 3.3V Operation: Designed specifically for energy-conscious portable devices and smart IoT nodes.
Benefits
- Open-Source RISC-V Architecture: Ideal for developers looking to gain hands-on experience with modern RISC-V toolchains and instruction sets.
- Cost-Effective Prototyping: Compact, lightweight board design suited for educational laboratories and proof-of-concept IoT devices.
- Rich Peripheral Integration: Eliminates the need for external interface ICs by bundling common timers, converters, and serial buses directly onto the SoC.
- Low Interrupt Latency: Vectored interrupt support ensures rapid response times for time-critical embedded applications.
Applications
- Low-Power IoT Nodes: Smart environmental sensors, remote data loggers, and wireless telemetry transceivers.
- Embedded Systems Education: University laboratories teaching computer architecture, RISC-V assembly, and microcontroller programming.
- Industrial Automation: Localized sensor monitoring units, actuator controllers, and embedded control logic.
- DIY Electronics & Robotics: Custom robotics controllers requiring multiple PWM channels and serial communication buses.
- Smart Home Devices: Energy-efficient automation switches and localized appliance monitors.
Package Includes
- 1 x THEJAS32 SoC-Based Microprocessor Development Board (VEGA ET1031 RISC-V Core)
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand / Series | SPIDER Automation / THEJAS32 RISC-V Evaluation Series |
| Item Type | RISC-V SoC Microprocessor Development Board |
| Processor Core | VEGA ET1031 (32-Bit RISC-V ISA, 3-Stage In-Order Pipeline) |
| Clock Frequency | Up to 100 MHz |
| System Memory (RAM) | 128 KB SRAM |
| I/O Operating Voltage | 3.3V |
| Serial Communication | 3 × UART, 3 × SPI, 2 × I2C Channels |
| Analog & Control | 4 × ADC/DAC Channels, 8 × PWM Output Channels |
| Digital I/O Pins | 32 × GPIO Pins (External Interrupt Capable on GPIO0–GPIO12) |
| Package Type | 128-Pin LQFP Package (Board Level) |
| Package Shipping Weight | 0.001 kg (1 g) |
| Package Shipping Dimensions | 5 cm × 5 cm × 1 cm |
