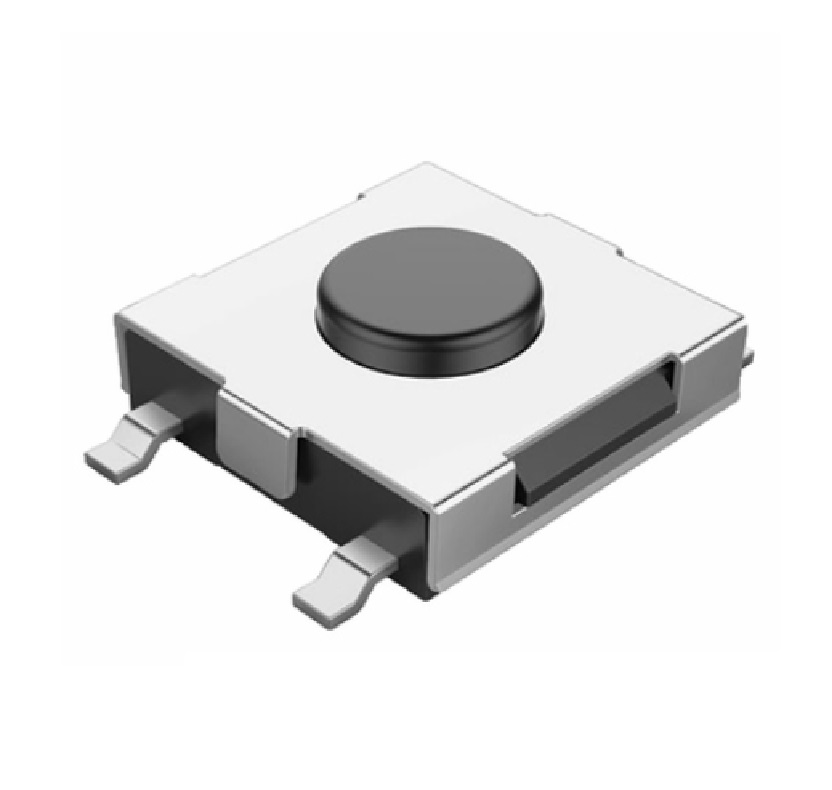

TVCM04 Tactile Switch | 4.5 x 4.3mm | SMT | Compact Vertical Push

Description

The TVCM04 Tactile Switch is a high-reliability, low-profile vertical push switch designed specifically for Surface Mount Technology (SMT) assembly. With a compact footprint of 4.5 x 4.3mm, this switch is engineered to provide a sharp, distinct tactile response, making it an excellent choice for modern consumer and industrial electronics where precise input feedback is essential.

Built with a contact-sealed structure, the TVCM04 ensures long-term operational reliability by protecting internal contacts from environmental contaminants. This switch is fully reflow solderable and is provided in 12mm wide embossed taping, facilitating seamless integration into high-speed automated pick-and-place manufacturing lines.

Note: Product images are for reference only. The actual product may vary slightly in appearance or manufacturer markings depending on stock availability.

Key Features

• Compact Form Factor: 4.5 x 4.3mm dimensions ideal for high-density PCB designs.
• Reliable Sealed Construction: Contact-sealed internal structure enhances longevity and resistance to contaminants.
• Manufacturing-Ready: Reflow solderable and packaged in 12mm embossed tape for automated assembly.
• Sharp Tactile Feedback: Designed for a distinct “click” feel, ensuring responsive and accurate user interaction.

Benefits

• Design Efficiency: Low-profile vertical push design helps save valuable board space in slim device enclosures.
• Assembly Optimized: Suitable for high-volume production environments using SMT equipment.
• Consistent Performance: Sealed contacts maintain signal integrity across a wide range of operating conditions.

Applications

• Audio & Video: Control interfaces for TVs, media players, and recording equipment.
• Office & Communication: Reliable input switches for printers, scanners, and peripheral communication devices.
• Measuring Instruments: Compact, tactile button interface for portable diagnostic and field tools.
• General Electronics: Versatile switching solution for various consumer-facing control panels.

Package Includes

• 1 x Tact Switch-TVCM04-4.5X4.3mm

Specifications
