Description

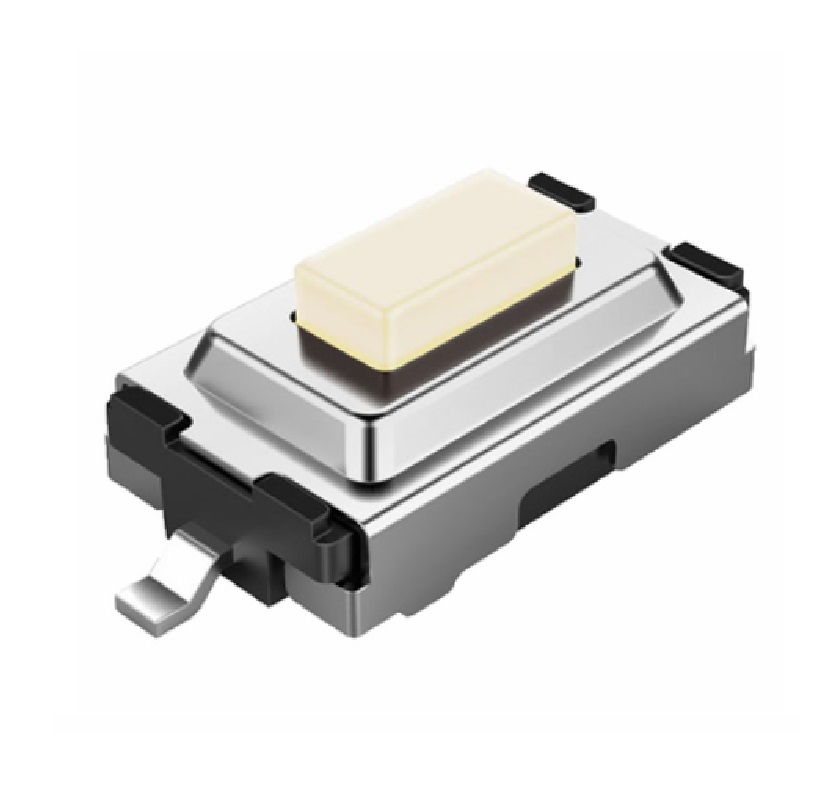

The TVBM17 Tact Switch (MPN: TVBM17) is a high-reliability vertical push switch designed specifically for surface-mount technology (SMT) applications where environmental resilience is required. With a compact 6.1×3.7mm footprint, this switch is engineered to fit into modern, space-constrained electronic devices while providing a sharp, precise tactile sensation for clear user feedback.
To ensure long-term functionality, the TVBM17 features a dust-proof, contact-sealed structure, making it highly resilient against environmental contaminants that can cause switch failure in less robust components. Designed for efficient manufacturing, the switch incorporates a larger top stem surface to improve pick-and-place mounting speed and is fully reflow solderable. Whether integrated into office equipment, audio gear, or portable electronics, the TVBM17 offers the durability and performance needed for professional-grade hardware design.
Note: Product images are for reference only. The actual product may vary slightly in appearance or manufacturer markings depending on stock availability.
Key Features
- Dust-Proof Sealed Structure: Advanced contact sealing prevents dust and debris ingress, significantly extending the switch’s operational life.
- Optimized 6.1×3.7mm Footprint: Compact dimensions designed to save valuable PCB real estate in slim-profile devices.
- Enhanced Mountability: Features an enlarged stem top surface to facilitate faster and more accurate automated assembly.
- Sharp Tactile Feedback: Calibrated for a crisp “click” response, ensuring clear input confirmation for the user.
- SMT & Reflow Ready: Fully compatible with modern lead-free reflow soldering processes for high-volume production.
- Vertical Push Design: Standard vertical actuation suitable for front-panel or top-mounted control interfaces.
Benefits
- Increased Reliability: The sealed design protects the contacts from oxidation and contamination, reducing field failure rates.
- Improved Production Throughput: The larger stem surface minimizes placement errors and speeds up the SMT assembly line.
- Premium User Feel: Provides the consistent, professional-grade tactile response expected by end-users of high-quality electronics.
- Flexible Integration: Its small size and dust-proof nature make it a versatile choice for a wide variety of hardware environments.
- Reduced Maintenance: The robust construction ensures long-term serviceability even in environments prone to dust.
Applications
- Office Equipment: Ideal for function buttons on printers, copiers, and multifunctional office hardware.
- Audio Apparatus: Reliable input for volume, mode selection, and power control in high-fidelity audio systems.
- Communication Apparatus: Perfect for control interfaces on networking gear, intercoms, and portable communication devices.
- Measuring Instruments: Responsive and durable input for laboratory-grade diagnostic and test equipment.
- Consumer Electronics: Versatile enough for TVs, video recording hardware, and smart home control units.
Package Includes
- 1 x Tact Switch-TVBM17-2 Pin 6.1×3.7mm
Specifications
| Parameter | Specification |
|---|---|
| Model | TVBM17 |

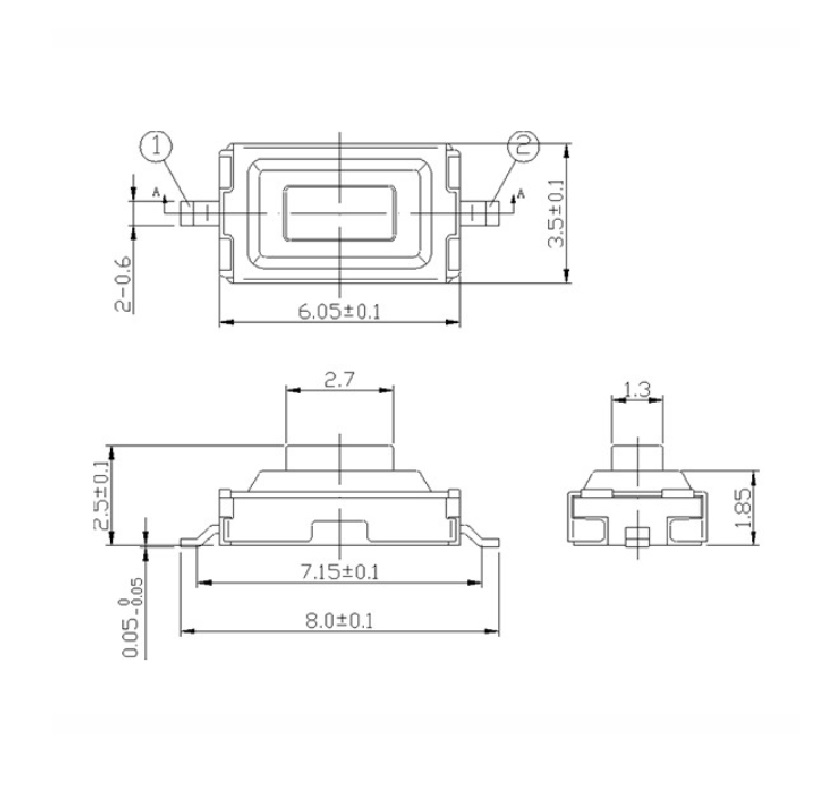

| Dimensions | 6.1 × 3.7 mm |
| Mounting Type | SMT (Surface Mount) |
| Features | Dust-Proof, Sealed Contact Structure, Larger Stem Surface |
| Soldering | Reflow Solderable |
| Shipping Weight | Approx. 0.001 kg |
