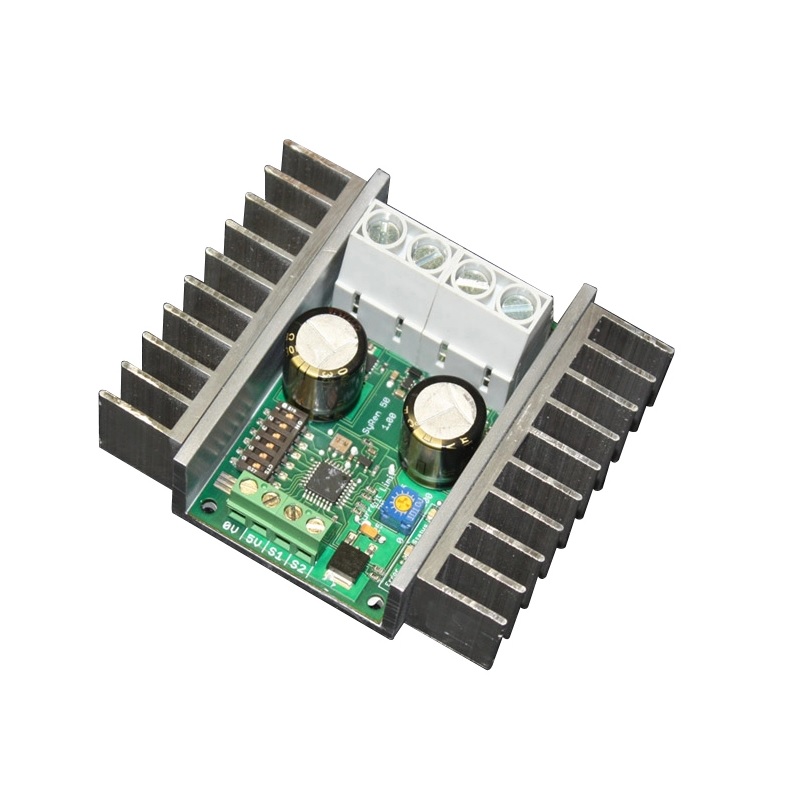

SyRen 50A Regenerative Motor Driver (High-Power Robotics Motor Controller)
Description
The SyRen 50A Regenerative Motor Driver is a high-performance motor control solution designed for powerful robotics applications requiring high current handling and precise bidirectional motor control. It is part of the SyRen series and is engineered for demanding robotic systems where efficiency, responsiveness, and reliability are critical.
This driver uses synchronous regenerative drive technology, allowing energy generated during deceleration or reverse motion to be fed back into the power source. This improves overall system efficiency and enables fast, responsive braking and direction changes, making robotic motion more agile and controlled.
The module features a built-in 5V BEC (Battery Eliminator Circuit) that can directly power microcontrollers or RC receivers, simplifying system integration. It also includes lithium battery protection mode, ensuring safe operation with Li-ion and Li-Po battery packs commonly used in high-performance robotics.
With ultrasonic switching at 32kHz, the driver operates silently, making it suitable for applications where noise reduction is important. The module supports multiple control interfaces including analog input, RC control, serial, and packetized serial, enabling flexible integration into both simple and advanced robotic systems.
Features
- Synchronous regenerative motor drive technology
- High-current capability for heavy-duty robotics
- Built-in 5V BEC for microcontroller and RC receiver power
- Lithium battery protection mode (Li-ion / Li-Po compatible)
- Ultra-sonic switching at 32kHz for silent operation
- Supports analog, RC, serial, and packetized serial control
- Fast braking and rapid direction reversal capability
- Built-in thermal and overcurrent protection
Applications
- High-power combat robots
- Heavy-duty mobile robotics platforms
- Industrial automation systems
- Tank-style differential drive robots
- Large DIY robotic vehicles
- Advanced educational robotics projects
Package Includes
- 1 × SyRen 50A Regenerative Motor Driver Module
Specifications
| Parameter | Value |
|---|---|
| Product Type | SyRen Regenerative Motor Driver |
| Operating Voltage | 6V – 30V DC |
| Peak Current | 100A |
| Continuous Current | 50A |
| Control Modes | Analog, RC, Serial, Packetized Serial |
| Switching Frequency | 32 kHz (Ultrasonic) |
| Length | 89 mm |
| Width | 76.5 mm |
| Height | 33 mm |
| Weight | 176 g |
| Shipping Weight | 0.242 kg |
| Shipping Dimensions | 12 × 8.5 × 6 cm |
