SunFounder Pironman 5 NVMe M.2 SSD PCIe Mini PC Case for Raspberry Pi 5

Description

Enhance your Raspberry Pi 5 with the Pironman 5, built with sturdy aluminum, superior cooling, NVMe M.2 SSD support, OLED display, RGB lighting, standard HDMI ports x2, and a secure power switch. It is perfect for NAS, Home Assistant, Media and Game Centers. The Pironman 5 is not just a case; it is an upgrade that transforms your Raspberry Pi 5 into a powerful, efficient, and stylish device.

The Pironman 5 includes the Pi 5 NVMe PIP (PCIe Peripheral Board), a PCIe adapter board specifically designed for NVMe solid-state drives. This board supports four sizes of NVMe SSDs: 2230, 2242, 2260, and 2280, all of which can be installed in an M.2 M key slot. The connection is certified for Gen 2.0 speeds (5 GT/sec) but can be forced to Gen 3.0 (10 GT/sec) for faster performance.

Note:

• Only Case is Included
• You need to install an OS that supports Raspberry Pi 5. Please use the latest Raspberry Pi Imager tool for system installation.

Useful Link

https://docs.sunfounder.com/projects/pironman5/en/latest/

Features

• Raspberry Pi 5 mini-PC enclosure
• 0.96 inch OLED Display showing Raspberry Pi’s CPU usage, temperature, disk usage, IP address, RAM usage, etc.
• Tower cooler can cool a 100% CPU load Pi to 39°C at 25°C room temperature.
• PWM Fan on the Tower Cooler is controlled by the Raspberry Pi system.
• Supports four (PCIe Gen 2.0 / PCIe Gen 3.0) NVMe M.2 SSD sizes: 2230, 2242, 2260, and 2280.
• 4 WS2812 Addressable RGB LEDs light up the whole case with cool light effects.
• IR Receiver for multi-media centers like Kodi or Volumio.
• Retro metal power button for safe shutdown.
• External GPIO extender with pin name labels for easy access.
• Equipped with a spring-loaded socket for easy card removal.
• Aluminum main body with clear acrylic side panel.

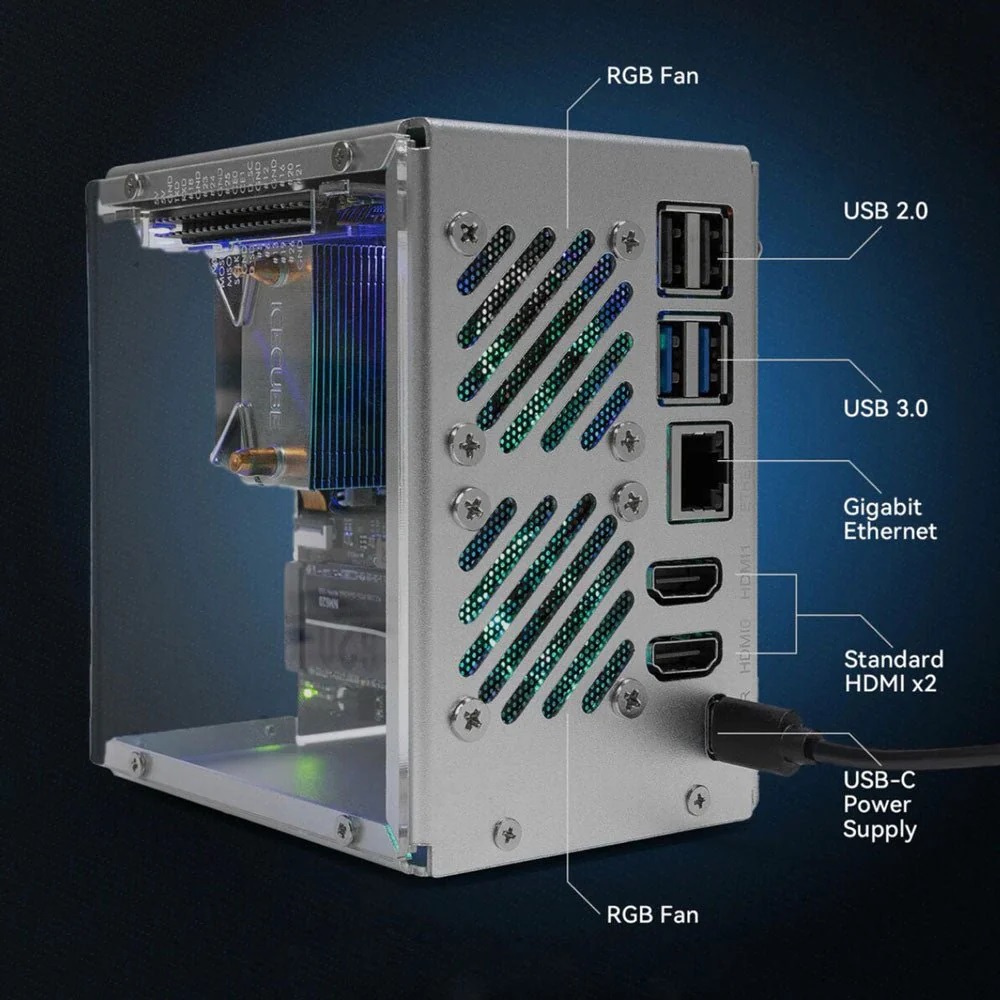

• Features two standard HDMI ports.

Package Includes

• 1 x SunFounder Pironman 5 NVMe M.2 SSD PCIe Mini PC Case for Raspberry Pi 5
