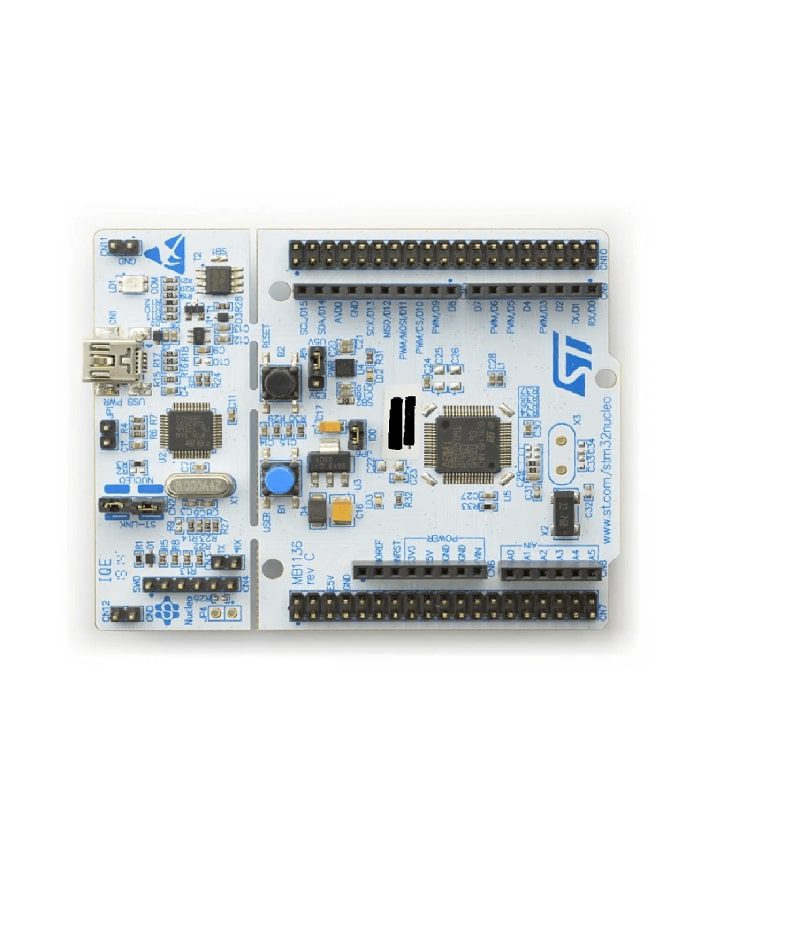

SPIDER Automation STMicroelectronics NUCLEO-L053R8 Development Board | Ultra-Low-Power ARM Cortex
Description
SPIDER Automation STMicroelectronics NUCLEO-L053R8 Development Board provides an affordable and flexible way for engineers, students, and makers to test new concepts and build functional prototypes for embedded applications. Built around the high-efficiency STM32L053R8 microcontroller, the Nucleo series leverages ARM Cortex-M 32-bit RISC architecture optimized for exceptional energy efficiency and high-density instruction performance, complete with a Nested Vectored Interrupt Controller (NVIC) for superior interrupt handling.
Designed for absolute convenience, the board integrates an on-board ST-LINK/V2-1 debugger/programmer, eliminating the need for separate external debugging probes. It supports three distinct USB interfaces—Virtual COM port, Mass storage, and Debug port—and features Arduino Uno V3 connectivity combined with ST Morpho extension headers for effortless expansion. Backed by comprehensive software HAL libraries and support for major IDEs like IAR, Keil, and GCC-based tools, it delivers an out-of-the-box development environment.
Key Features
- Onboard STM32L053R8 MCU: Energy-efficient 32-bit RISC microcontroller optimized for low-power operation.
- Integrated ST-LINK/V2-1 Debugger: Built-in programmer/debugger featuring an SWD connector and USB virtual COM port capabilities.
- Triple USB Interface Support: Supports Virtual COM port, Mass Storage device class, and Debug port over a single USB connection.
- Arduino Uno V3 Connectivity: Standardized headers allowing effortless plug-and-play stacking of commercial Arduino shields.
- ST Morpho Extension Resources: Pin headers granting complete, unhindered access to all microcontroller I/Os for custom wiring.
- User-Friendly Peripherals: Equipped with dedicated user push-buttons, a reset button, and three status indicator LEDs (Power, User LED, USB Communication).
- Comprehensive Software Ecosystem: Fully supported by STM32 HAL libraries and major Integrated Development Environments (IDEs) including Keil, IAR, and GCC.
Benefits
- Zero External Hardware Needed: Onboard ST-LINK/V2-1 debugger lets you connect directly via USB and begin programming instantly.
- Ultra-Low Power Prototyping: ARM Cortex-M architecture ensures minimal battery drain, making it ideal for portable and energy-sensitive IoT designs.
- Maximum Expandability: Dual shield compatibility (Arduino + ST Morpho) provides access to a massive ecosystem of sensors and actuators.
Applications
- Ultra-Low-Power IoT Sensor Nodes: Building battery-operated environmental monitoring and telemetry devices.
- Wearable Technology & Handheld Gadgets: Developing power-constrained consumer electronics and smart accessories.
- Educational & Embedded Labs: Ideal learning platform for engineering students studying 32-bit microcontroller architecture and real-time interrupts.
- Industrial Automation & Control: Prototyping low-power remote data loggers and smart field transmitters.
Package Includes
- 1 x STMICROELECTRONICS NUCLEO-L053R8 Development Board (STM32L053R8 MCU, ST-LINK/V2-1 Debugger, Arduino & Morpho Compatible)
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand / Model Series | SPIDER Automation / STMicroelectronics STM32 Nucleo-64 |
| Model Part Number | NUCLEO-L053R8 |
| Item Type | Embedded Development Board with Onboard Debugger |
| Microcontroller Core | STM32L053R8 32-Bit ARM Cortex-M0+ RISC Architecture |
| System Clock Speed | 32 MHz |
| On-Board Debugger / Programmer | ST-LINK/V2-1 with SWD Connector |
| USB Interface Modes | Virtual COM Port, Mass Storage, and Debug Port |
| Operating Supply Voltage | 3.3V, 5V (USB Bus), or 7V to 12V (External Power) |
| Shield Expansion Support | Arduino Uno V3 Connectivity & STMicroelectronics Morpho Headers |
| Software & IDE Compatibility | STM32 HAL Library, STM32CubeIDE, IAR, Keil, and GCC-Based IDEs |
| Supported Host Operating Systems | Windows OS (XP, 7, 8, 10, 11), Linux 64-Bit, and Mac OS X |
| Device Net Weight | 0.078 kg (78 g) |
| Package Shipping Dimensions | 20 cm × 15 cm × 3 cm |
