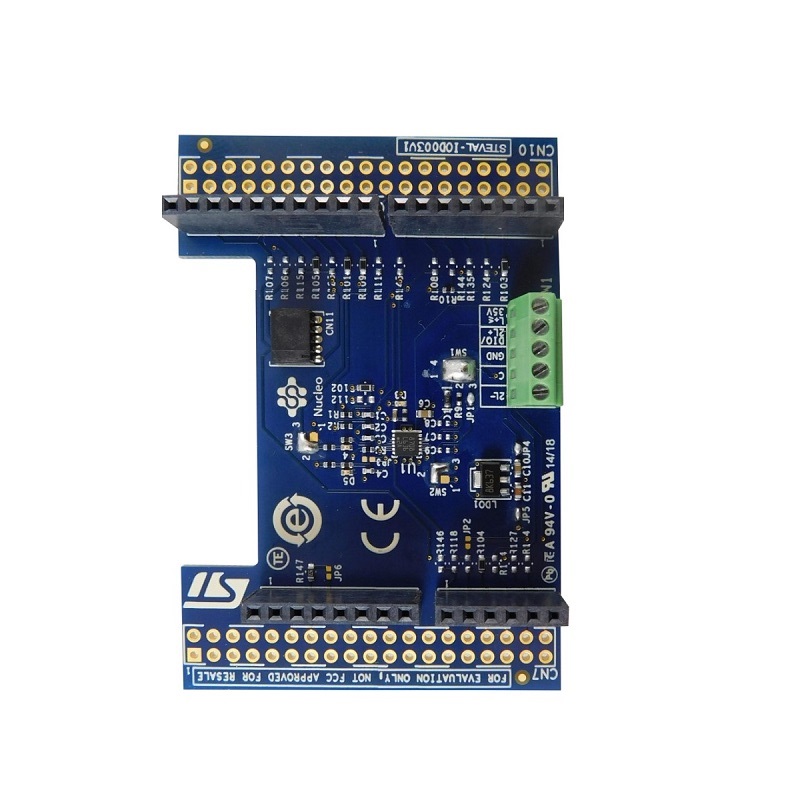

SPIDER Automation STMicroelectronics STEVAL-IOD003V1 IO-Link PHY Device Evaluation Board offers engineers and industrial automation developers a cost-effective, ready-to-use platform to test and evaluate industrial communication systems. At its core lies the L6362A IO-Link physical layer transceiver, engineered to deliver reliable bi-directional data transmission in harsh factory floor environments.

The evaluation board is fully equipped with integrated EMC protection adhering to IO-Link v1.1 standards and rigorous surge protection compliant with IEC 60947-5-2. It incorporates crucial safety features such as ground and VCC wire break protections, safeguarding connected hardware during wiring faults. Communicating with host controllers via UART and standard GPIOs, the STEVAL-IOD003V1 features Arduino UNO R3 compatible connectors for effortless stacking onto STM32 Nucleo development boards.

Key Features

• L6362A IO-Link PHY Device: Advanced physical layer transceiver designed specifically for industrial sensor and actuator nodes.
• IO-Link v1.1 Compliance: Fully integrated EMC and communication architecture adhering to official IO-Link v1.1 protocol specifications.
• IEC 60947-5-2 Surge Protection: Built-in industrial surge suppression ensuring robust defense against high-energy transients.
• Ground & VCC Wire Break Protection: Advanced safety mechanisms preventing device damage during accidental power or ground disconnections.
• Arduino UNO R3 Connectors: Standardized header layout allowing quick stacking onto compatible STM32 Nucleo development boards.
• UART & GPIO Communication: Simple, reliable interface linking transceiver status and data streams directly to the host microcontroller.
• Wide Operating Voltage Range: Supports a robust 6.5V to 35V DC input voltage range suitable for standard industrial power rails.
• Cost-Effective Prototyping: Affordable and easy-to-use platform designed for rapid evaluation of SIO and IO-Link communication features.
• STSW-IOD003 Software Support: Backed by comprehensive software packages and sample applications provided by STMicroelectronics.
• Compact Form Factor: Small-footprint layout engineered to fit easily into standard laboratory testing rigs and industrial enclosures.

Benefits

• Accelerated Industrial Prototyping: Drastically reduces development time when designing IO-Link smart sensors and actuators.
• Enhanced Electrical Robustness: Built-in surge and EMC protection shield sensitive electronics from factory floor electrical noise and transients.
• Plug-and-Play Stacking: Arduino-compatible pinouts eliminate complex breadboard wiring when connecting to STM32 Nucleo boards.
• Fault-Tolerant Operation: Wire break and reverse-condition safeguards protect hardware from common installation errors.
• Cost-Effective Evaluation: Provides a complete, budget-friendly gateway into industrial IO-Link network deployment.

Applications

• Industrial Smart Sensors: Proximity switches, photoelectric sensors, and temperature transmitters with IO-Link connectivity.
• Factory Automation Actuators: Intelligent valve terminals, pneumatic controls, and stack lights.
• Industrial Fieldbuses & SIO Devices: Standard input/output (SIO) mode communication and point-to-point industrial data links.
• Process Control Systems: Distributed monitoring devices requiring robust long-distance serial communication.
• Embedded Systems & R&D Education: Professional training platform for studying industrial communication protocols and physical layer design.

Package Includes

• 1 x STMicroelectronics STEVAL-IOD003V1 Evaluation Board with L6362A IO-Link PHY Device (Arduino Compatible, For STM32 Nucleo)
