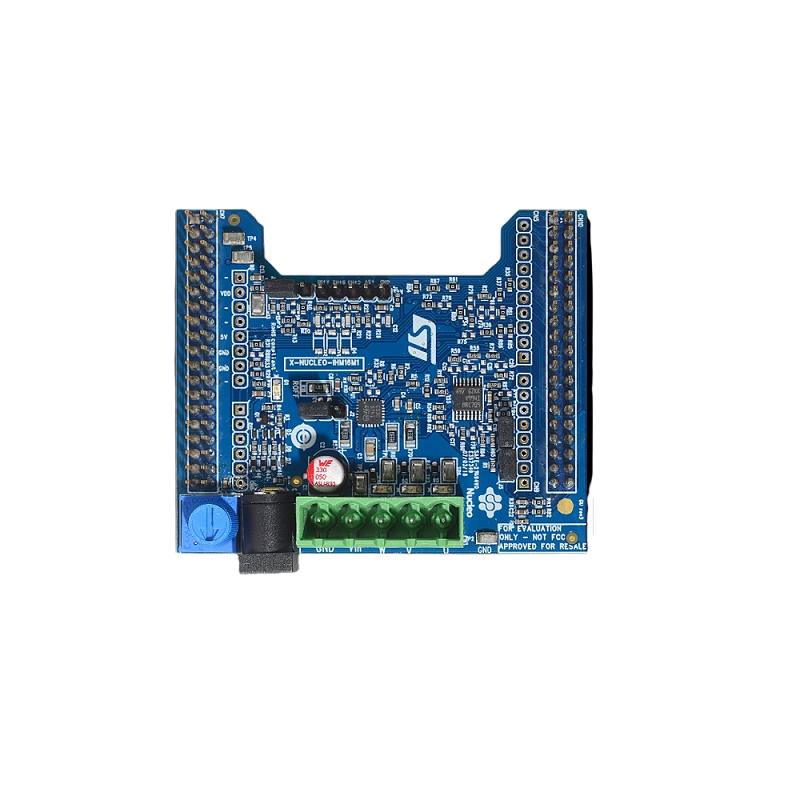

SPIDER Automation STMicroelectronics STSPIN830 3-Phase BLDC Motor Driver Expansion Board

Description

SPIDER Automation STMicroelectronics STSPIN830 3-Phase BLDC Motor Driver Expansion Board represents an affordable, easy-to-use solution for driving brushless DC motors in your STM32 Nucleo development projects. Centered around the robust STSPIN830 driver IC, it provides a complete motor control stage supporting both single-shunt and three-shunt current sensing topologies. The board operates across an input voltage range of 7V to 45V, delivering up to 1.5 Arms of continuous output current with exceptional thermal and electrical reliability.

The STSPIN830 embeds a precise PWM current limiter with an adjustable reference threshold, paired with a full suite of industrial-grade safety protections. Designed for maximum versatility, it includes dedicated BEMF sensing circuitry, bus voltage monitoring, PCB temperature sensing, and standard input headers for Hall effect-based sensors and rotary encoders. Fully compatible with Arduino Uno V3 and ST Morpho connectors, it plugs directly into any STM32 Nucleo development board and can be stacked effortlessly with additional Nucleo expansion shields.

Key Features

• STSPIN830 3-Phase Motor Driver: Integrated low-voltage brushless DC driver optimized for high-efficiency inverter stages.
• Wide Operating Voltage Range: Supports motor power supply inputs from 7V DC up to 45V DC.
• High Output Current Capability: Delivers up to 1.5 Arms output current, suitable for a wide variety of robotic and industrial BLDC motors.
• Advanced Current Sensing: Implements flexible single-shunt and three-shunt current sensing architectures for precise field-oriented control (FOC).
• Adjustable PWM Current Limiter: Built-in current limiter with an adjustable reference threshold to protect motor windings and driver stages.
• Robust Protection Suite: Comprehensive fault handling including overcurrent protection, short-circuit shutdown, high-side/low-side interlocking, thermal shutdown, and undervoltage lockout (UVLO).
• Feedback & Telemetry Circuitry: Features BEMF sensing, bus voltage monitoring, and onboard PCB temperature sensing.
• Sensor & Encoder Inputs: Dedicated input connector supporting Hall effect-based magnetic sensors and quadrature encoders.
• Stackable Nucleo Compatibility: Outfitted with Arduino™ and ST Morpho connectors for plug-and-play stacking with STM32 Nucleo boards.

Benefits

• Rapid Motor Control Prototyping: Eliminates custom PCB design work, allowing engineers to test BLDC and PMSM motor algorithms in minutes.
• Stackable Modular Architecture: Arduino and ST Morpho headers let you combine motor drivers with Wi-Fi, sensors, or display shields on a single Nucleo stack.
• Complete Built-in Safety: Industrial-grade thermal and electrical protections prevent board burnout during stalled rotor or overload conditions.
• Precise Closed-Loop Control: Hall sensor, encoder, and BEMF feedback options enable accurate speed and position tracking.

Applications

• Robotic Arm & Rover Drives: Precise brushless motor control for mobile robots, automated guided vehicles (AGVs), and robotic joints.
• Small Industrial Pumps & Fans: Variable-speed BLDC blowers, cooling fans, and micro-fluidic metering pumps.
• CNC & 3D Printer Extruders: High-torque brushless motor stages for advanced motion control systems.
• Gimbals & Camera Stabilizers: Smooth multi-axis brushless camera stabilization and positioning gimbals.
• Embedded Motor Control Education: University and R&D labs teaching 3-phase inverter switching, PWM generation, and FOC algorithms.

Package Includes

• 1 x STMicroelectronics STSPIN830 3-Phase BLDC Motor Driver Expansion Board (Arduino & ST Morpho Compatible for STM32 Nucleo)
