SkyRC iMAX B6 Mini | 60W 6A DC Compact Professional Balance Charger & Discharger

Description

The SkyRC iMAX B6 Mini is a compact, upgraded evolution of the legendary IMAX B6 charger, delivering 20% more power and charging current in a significantly smaller footprint. Equipped with a high-performance microprocessor, the B6 Mini handles all common battery chemistries—including LiPo, Li-Ion, LiFe, NiCd, NiMH, and Lead-Acid (Pb)—delivering up to 60W of charging power (6.0A max) and 5W of discharging power.

Designed for advanced monitoring and control, the B6 Mini features PC connectivity via the “Charge Master” software, smartphone app compatibility, terminal voltage adjustment, and built-in diagnostic tools like a lithium battery meter and internal resistance tester. Complete with a versatile assortment of charging leads, it provides professional-grade power management in a pocket-sized package.

Note: Product images are for reference only; actual appearance, packaging, or included charging leads may vary slightly based on manufacturing batches.

Key Features

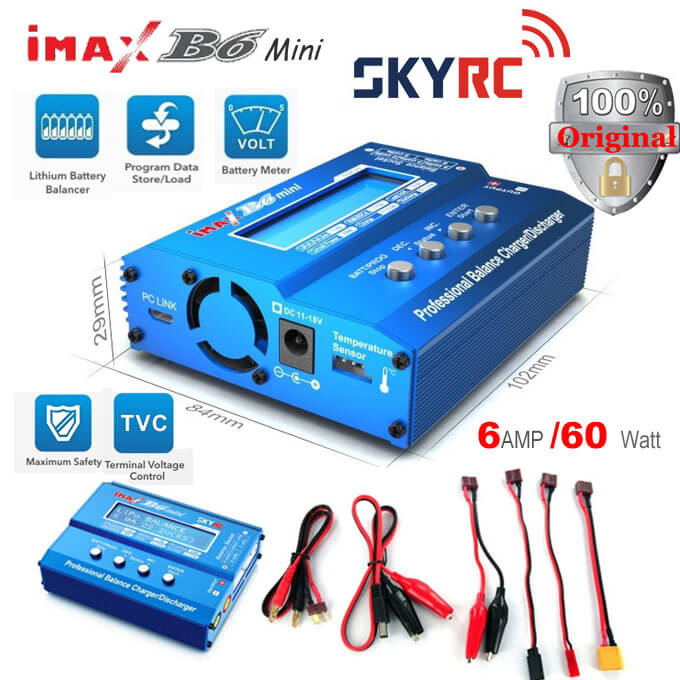

• Compact High-Power Design: Delivers up to 60W of charging power and 6.0A max current in a lightweight, ultra-portable 102×84×29mm housing.
• Multi-Chemistry Compatibility: Fully supports 1–6S LiPo, Li-ion, and LiFe packs, 1–15S NiCd/NiMH cells, and 2–20V Lead-Acid (Pb) batteries.
• PC & Smartphone Control: Connects to PCs via USB for real-time graphs and firmware updates, or pairs with optional modules for smartphone monitoring.
• Advanced Battery Diagnostics: Functions as a precision lithium battery meter and internal resistance meter to evaluate pack health and cell matching.
• Terminal Voltage Control: Allows expert users to manually adjust end-voltages to optimize charging parameters for specialized high-capacity packs.
• Comprehensive Safety Suite: Includes delta-peak sensitivity, automatic charge current limits, capacity thresholds, time limits, and input voltage monitoring.

Benefits

• Ultra-Portable Footprint: Pocket-sized housing takes up virtually zero space on crowded workbenches or in mobile field boxes.
• Precise Health Tracking: Built-in internal resistance testing and cell voltage metering let you spot fading packs before they fail.

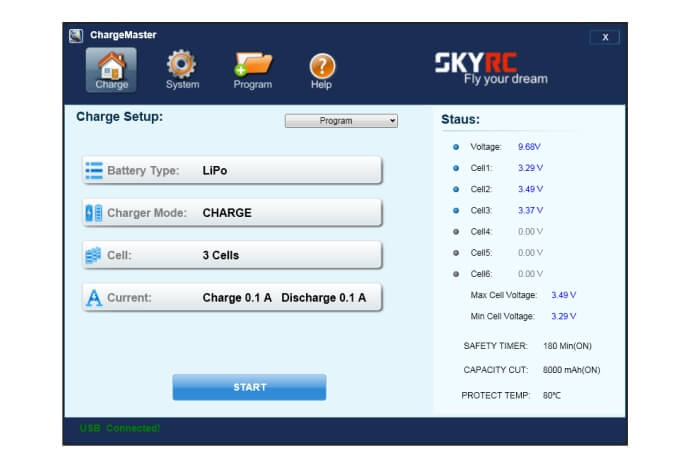

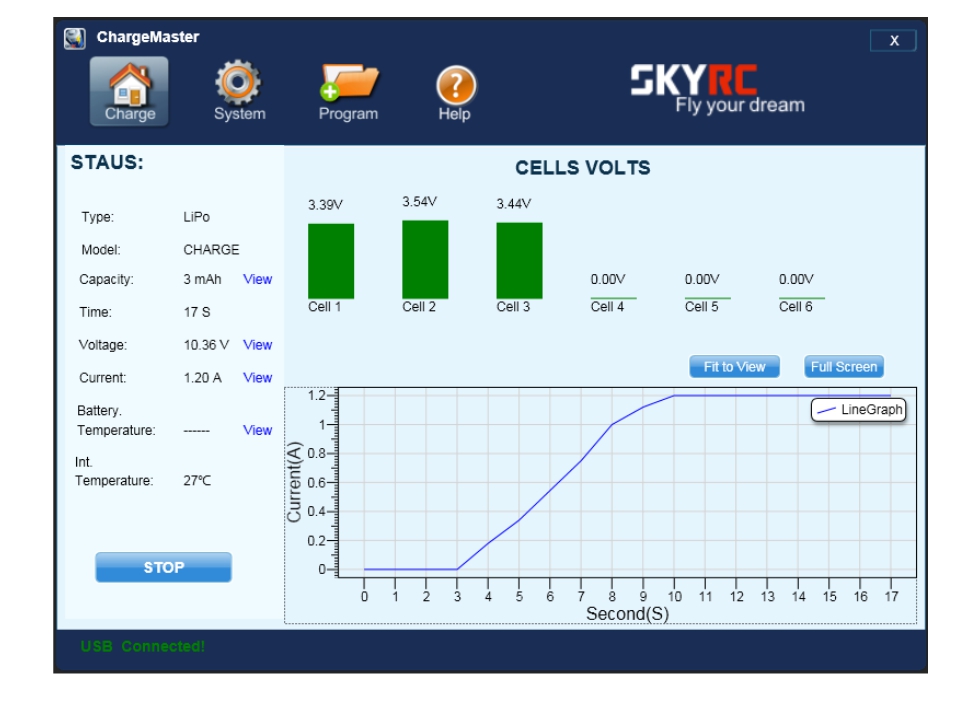

• Visual Real-Time Data: Monitor live charging curves and pack statistics directly on your computer screen using Charge Master software.
• Versatile Accessory Bundle: Comes equipped with an extensive array of charge leads and connector adapters right out of the box.
• Flexible DC Power Input: Operates efficiently off any 11–18V DC power source or field battery pack.

Applications

• RC Car & Truck Maintenance: Essential compact charger for managing 2S-3S LiPo drive packs and NiMH receiver batteries.
• FPV Drone & Multirotor Flying: Convenient field charger for powering up smaller practice flight packs between flying sessions.
• Robotics Development Labs: Reliable desktop unit for testing, cycling, and maintaining diverse prototype power systems.
• Workshop Bench Setup: Space-saving charger for routine battery storage prep, cycling, and general electronic maintenance.
• Field Maintenance Kits: Highly portable DC charger easily powered from car batteries or mobile field packs.

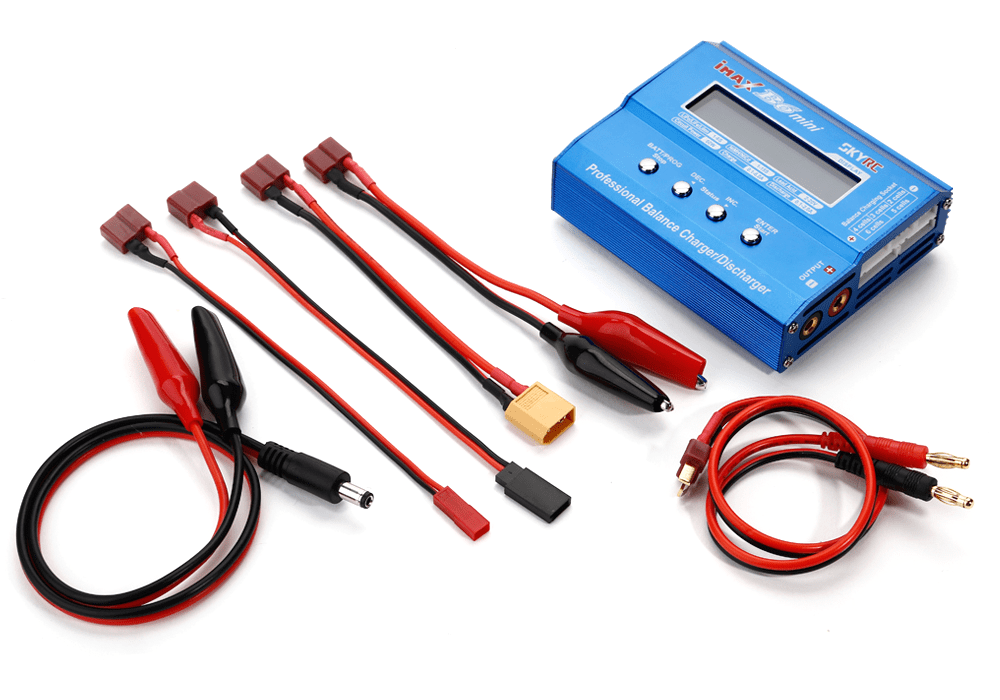

Package Includes

• 1 x SkyRC iMAX B6 Mini Balance Charger
• 1 x T-Plug with Banana Connector Charging Cable
• 1 x DC Cable with Alligator Clip Charging Connector
• 1 x T-Plug with Alligator Clip Connector Charging Cable
• 1 x T-Plug with Futaba Connector Charging Cable
• 1 x T-Plug with JST Connector Charging Cable
• 1 x T-Plug with XT60 Connector Charging Cable
• 1 x Instruction Manual / Quick Guide

Specifications
