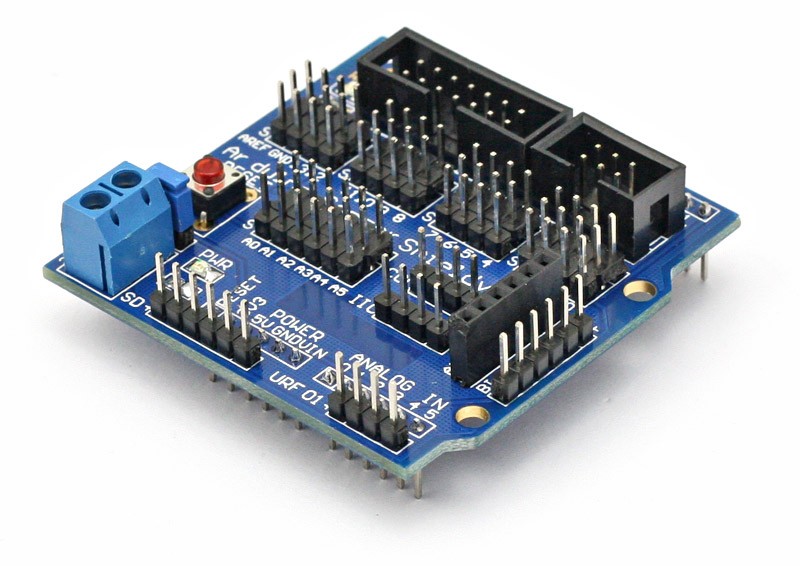

Sensor Shield V5 Expansion Board with 32-Channel Servo & IIC | Multi-Interface Sensor Expansion Shield | For Arduino Uno & Due Microcontrollers
Description
The SPIDER Automation Sensor Shield V5 Expansion Board is engineered to streamline prototyping by providing a centralized connectivity platform for Arduino-based development systems. Building upon the success of version V4.0, this stackable shield integrates advanced PCB immersion gold processing and introduces a wide array of specialized communication interfaces, including IIC, Bluetooth, SD card slots, and an ultrasonic sensor header.
Designed to eliminate the complexity of traditional jumper wiring, the Sensor Shield V5 features buckled 3-pin ports (VCC, GND, and Signal) for every channel. This allows engineers, students, and hobbyists to effortlessly hook up analog and digital sensors, servo motors, and wireless modules using standard 2.54mm cables, resulting in clean, reliable, and professional-grade electronic builds.
Key Features
- Stackable Laminated Design: Retains core V4 benefits while allowing multi-board stacking with host microcontrollers.
- Extensive Communication Ports: Includes native breakout headers for IIC, Bluetooth modules, SD card storage, and APC220 wireless RF modules.
- Dedicated Servo Controller Interface: Supports up to 32 servo motor connections with proper power and signal routing.
- Standardized 3-Pin Connectors: Every functional module port features clearly mapped VCC, GND, and Output lines.

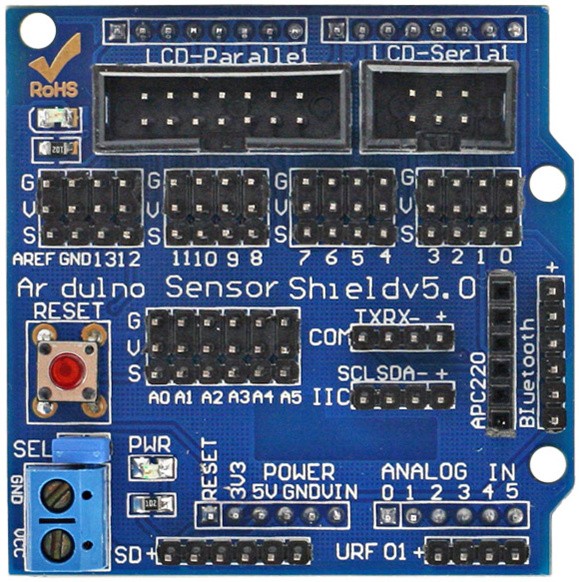

- Display Compatibility: Built-in support for 12864 LCD string line and parallel interface connections.
- High-Grade Manufacturing: Fabricated using robust PCB immersion gold processing technology for enhanced durability.
Benefits
- Simplifies Complex Wiring: Replaces messy breadboards with structured 3-pin cable hookups, drastically reducing setup errors.
- Rapid Prototyping Workflow: Lets developers focus purely on programming and data acquisition rather than cumbersome circuit assembly.
- Versatile Peripheral Integration: Connect sensors, actuators, and wireless communication cards simultaneously on a single board.
-
Reliable Mechanical Contact: Immersion gold pads and secure pin configurations ensure stable, low-resistance electrical connections.
Applications
- Robotics & Servo Control Systems: Centralized interface hub for multi-axis robotic arms and walking robots using up to 32 servos.
- Wireless Sensor Networks: Rapid deployment platform for remote monitoring rigs utilizing Bluetooth or RF communication modules.
- Educational Electronics Labs: Ideal teaching aid for students learning microcontroller programming without hardware wiring frustrations.
-
Automated Monitoring Rigs: Prototyping environmental data recorders integrated with LCD screens and IIC sensors.
Package Includes
- 1 x SPIDER Automation Sensor Shield V5 Expansion Board
Specifications
| Item Type | Sensor & Servo Expansion Shield |
| Brand / Series | SPIDER Automation |
| Model Type | Sensor Shield V5 |
| Compatibility | Arduino Uno, Arduino Due (and compatible microcontroller boards) |
| Key Interfaces | IIC, 32-Channel Servo, Bluetooth, SD Card, APC220 Wireless, Ultrasonic |
| PCB Dimensions | 58 × 56 mm |
| Board Height | 20 mm |
| Board Weight | 20 g |
| Shipping Weight | 0.022 kg |
| Shipping Dimensions | 7 × 7 × 2 cm |
