Description

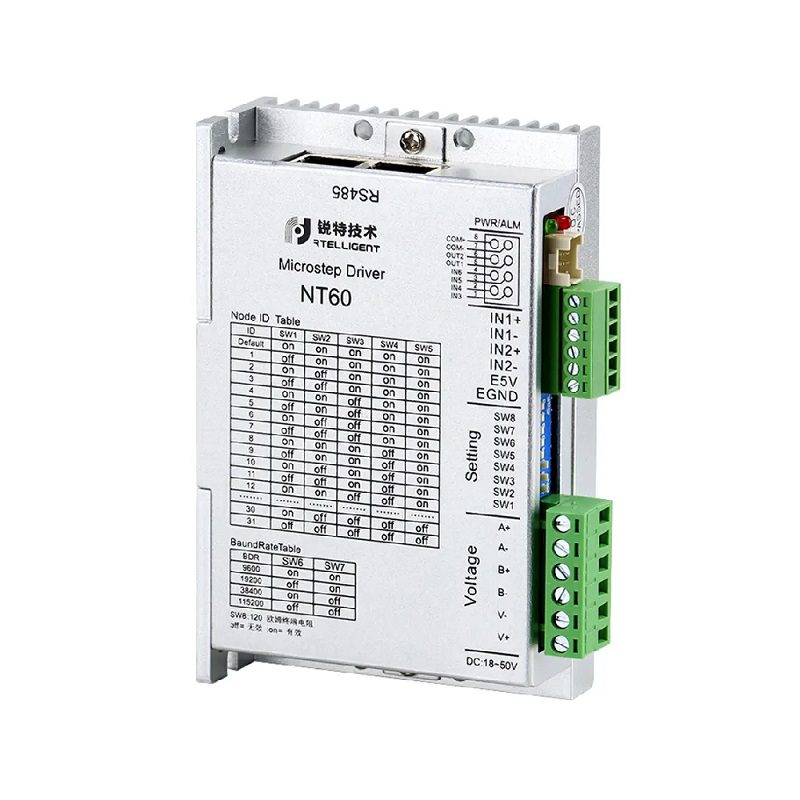

The Rtelligent RS485 Modbus RTU Stepper Driver is designed for open-loop and closed-loop stepper motors below NEMA 24. It operates with a voltage range of 18-50VDC and is compatible with two-phase stepper motors. The driver features easy configuration via DIP switches for slave addresses and baud rates. It supports 24V I/O ports for flexible input/output functions and utilizes RS485 Modbus RTU communication for reliable data exchange. Ideal for applications in automation, medical detectors, and electronic assembly.
Key Features
- Voltage Range: Operates with 18V to 50VDC for versatile power supply options.
- Motor Compatibility: Supports both open-loop and closed-loop stepper motors up to NEMA 24.
- RS485 Communication: Uses Modbus RTU for reliable and efficient data transmission.
- DIP Switch Configuration: Allows easy setting of slave addresses and baud rates.
- 24V I/O Ports: Provides configurable input and output functions for flexibility.
- Two-Phase Motor Support: Designed for two-phase stepper motors for precise motion control.
- High Reliability: Ensures stable operation in industrial environments.
- Compact Design: Space-saving form factor for integration into various applications.
- Network Integration: Ideal for networked motion control systems.
- Wide Application Range: Suitable for automation, medical, and assembly equipment.
Benefits
- Seamless Network Control: RS485 Modbus RTU communication allows multi-axis synchronization and remote parameter management.
- Flexible Connectivity: Configurable 24V I/O ports adapt easily to varied industrial signal requirements.
- Hassle-Free Setup: Onboard DIP switches simplify device addressing and communication baud rate configuration without complex software.
Applications
- Industrial Automation & Control: Networked motion control systems and automated assembly lines.
- Medical Equipment: Precise and reliable drive solution for medical detectors and diagnostic instruments.
- Electronic Assembly Systems: High-precision component placement and manufacturing machinery.
Package Includes
- 1 x Rtelligent RS485 Modbus RTU Stepper Driver
- 1 x Connector Cable
Specifications
| Parameter | Specification |
|---|---|
| Item Type / Series | Motor Driver / Rtelligent Series |
| Model Type | Stepper Driver For Open / Closed Loop |
| Driver Model | Rtelligent RS485 Modbus RTU |
| Voltage Rating (Nominal) | 18V to 50 VDC |
| Current Rating (Output) | 6 Amps |
| Power Capacity | 300 W |
| Number of Channels | 1 Channel |
| Motor Compatibility | Open-loop and closed-loop stepper motors up to NEMA 24 (Two-Phase) |
| Communication Interface | RS485 Modbus RTU |
| Shipping Dimensions & Weight | 16 × 11 × 6 cm | Net Weight: ~0.329 kg |
