Description

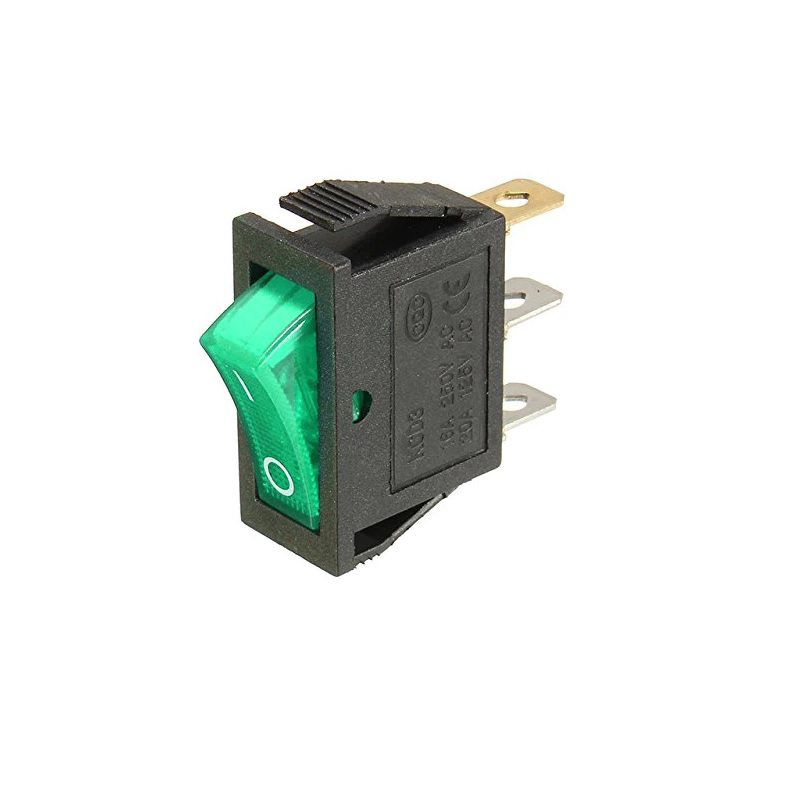

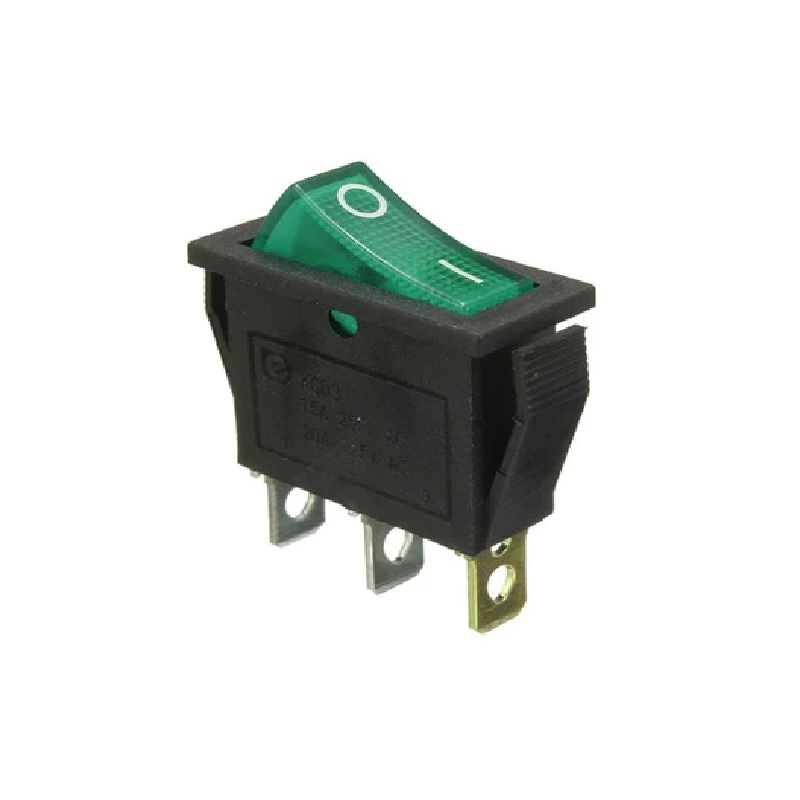

The 15A 250V SPDT Illuminated Rocker Switch is a heavy-duty, reliable power control solution designed for demanding applications. Featuring a high load rating of 15A at 250VAC, this switch is perfectly suited for controlling DC motors in robotics, automotive systems, industrial machinery, and home appliances like water dispensers. Its snap-in tab design allows for quick, screwless installation into enclosures, while the clear “I/O” markings and bright green LED indicator ensure users can easily identify the operational status at a glance.
Built for longevity, this switch is rated for an impressive 50,000 to 100,000 switching cycles, providing consistent performance even in high-use environments. The SPDT (Single-Pole, Double-Throw) configuration offers versatility for various circuit control requirements, making it an essential component for both industrial projects and custom DIY builds.
Key Features
- Design: 3-Pin SPDT (Single-Pole, Double-Throw) configuration
- Illumination: Integrated green LED light indicates On/Off status
- High Load Capacity: Rated for heavy-duty 15A @ 250V operation
- Mounting: Snap-in “tab” design for fast, secure, and tool-free installation
- Visibility: Clearly marked “I” (On) and “O” (Off) positions
- Reliability: Engineered for an extensive lifespan of 50,000–100,000 cycles
Technical Benefits
- High amperage rating handles significant loads, perfect for motors, pumps, and high-power tools
- Illuminated interface prevents accidental activation and improves user safety in low-light conditions
- SPDT structure allows for flexible wiring options, enabling control over two separate circuits or modes
- Durable construction ensures consistent tactile feedback and electrical reliability over years of use
- Compact, space-saving footprint fits standard panel cutouts
Applications
- Robotics & Automation: DC Motor control for automated systems
- Automotive & Marine: Power control for cars, motorcycles, and boats
- Industrial Machinery: Operation switches for industrial motors and equipment
- Appliances: Water dispensers, humidifiers, and heavy-duty kitchen hardware
- Power Management: General-purpose ON-OFF power control for custom projects
Package Includes
- 1 x 15A 250V Green SPDT Illuminated Rocker Switch
Specifications
| Parameter | Specification |
|---|---|
| Switch Type | Rocker Switch |
| Configuration | SPDT (3-Pin) |
| Max Current | 15 A |
| Max Voltage | 250 V |
| Light Color | Green |
| Switching Life | 50,000 – 100,000 Cycles |
| Dimensions | 3 x 3 x 2 cm (Shipping dimensions) |
