Description:

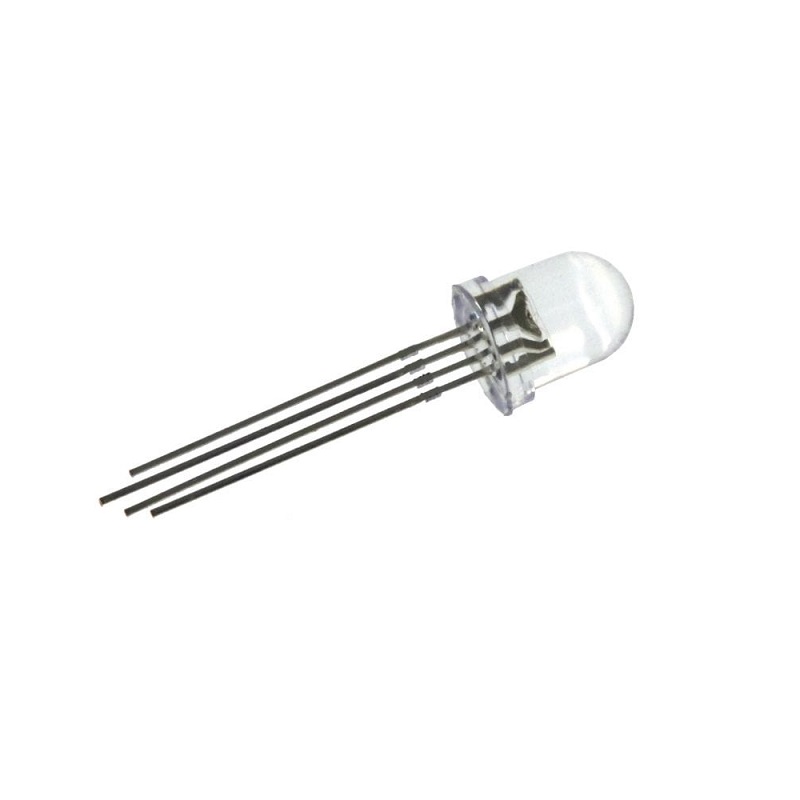

The 10mm RGB Common Anode Tricolor LED is a high-brightness through-hole LED that integrates red, green, and blue LED chips into a single transparent package. By controlling the intensity of each color individually, it can generate a wide spectrum of colors, making it ideal for decorative lighting, status indication, and creative electronic projects.
This LED features a Common Anode configuration, where the common pin is connected to the positive supply while the individual color pins are controlled independently through current-limiting resistors. The transparent lens provides excellent light transmission and smooth color mixing, making it suitable for Arduino, Raspberry Pi, DIY electronics, educational projects, and embedded systems.
Applications:
- RGB lighting projects
- Status and indication LEDs
- Arduino and Raspberry Pi projects
- DIY electronics
- Decorative lighting
- Embedded systems
- Educational and STEM projects
- Electronic prototypes
Features:
- 10mm transparent through-hole RGB LED
- Common Anode configuration
- Integrated Red, Green, and Blue LED chips
- Excellent color mixing capability
- Wide viewing angle
- High brightness output
- Low power consumption
- Easy PCB mounting and soldering
Package Includes:
- 5 x 10mm RGB Common Anode Transparent Tricolor LED
Specifications:
| Product Type | RGB Tricolor LED |
| Configuration | Common Anode |
| Mounting Type | Through Hole |
| Lens Type | Transparent |
| LED Diameter | 10 mm |
| Viewing Angle | 50° |
| Red Wavelength | 630–640 nm |
| Green Wavelength | 515–525 nm |
| Blue Wavelength | 465–475 nm |
| Forward Voltage (Red) | 1.8–2.0 V |
| Forward Voltage (Green) | 3.2–3.4 V |
| Forward Voltage (Blue) | 3.2–3.4 V |
| Brightness (Red) | 1000–1200 mcd |
| Brightness (Green) | 3000–5000 mcd |
| Brightness (Blue) | 2000–3000 mcd |
| Shipping Weight | 0.008 kg |
| Shipping Dimensions | 7 × 5 × 1 cm |
