SPIDER Automation Raspberry Pi Zero W V1.1 Complete Starter Kit | Industrial & Maker Evaluation Bundle
Description
The SPIDER Automation Raspberry Pi Zero W V1.1 Complete Starter Kit provides a fully equipped, ultra-compact computing platform tailored for professional automation projects, educational laboratories, and IoT edge nodes. Retaining the micro-footprint and mounting configuration of the original Pi Zero, this version integrates high-speed wireless networking directly onto the printed circuit board, eliminating the need for external USB dongles or network adapters.
This comprehensive bundle eliminates sourcing friction by packaging the core single-board computer alongside a modular protective case, 16GB high-speed storage, a regulated power supply, and critical video/data conversion adapters. Its low power consumption and versatile 40-pin expansion header make it an exceptional choice for headless servers, custom data loggers, and space-constrained control systems.
Key Features

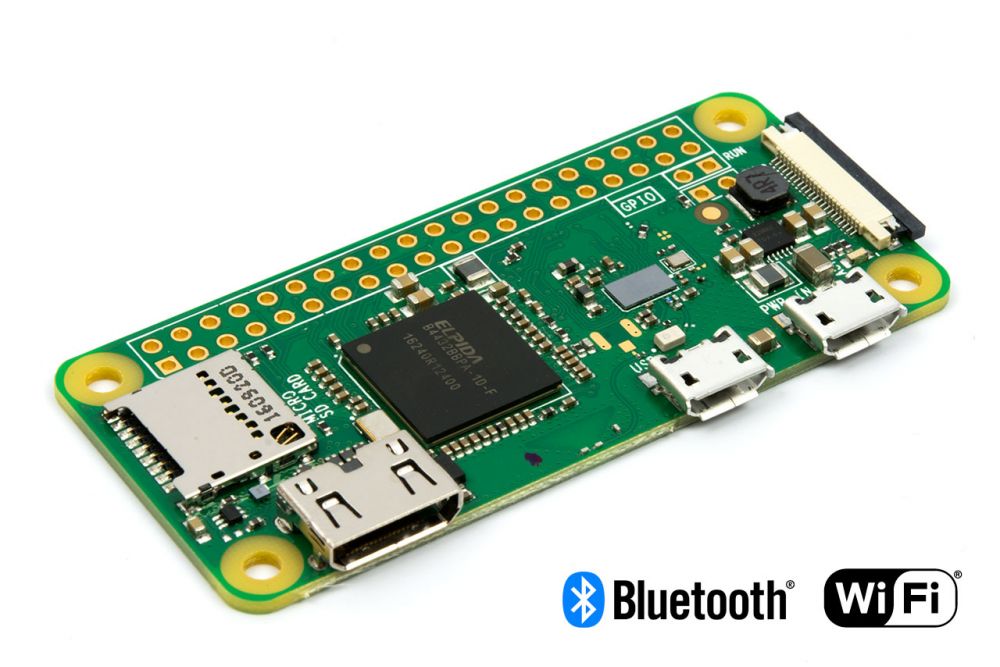

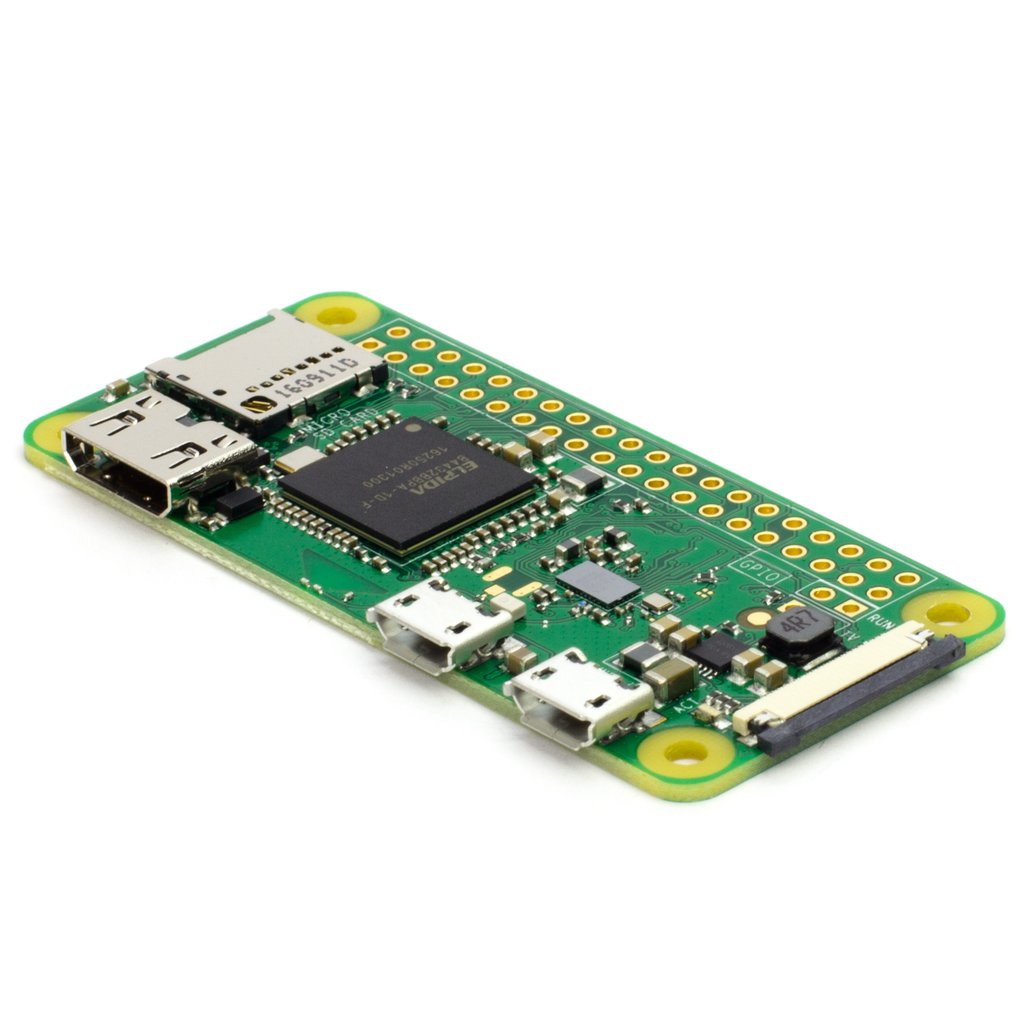

- 1GHz ARM Processing Core: Powered by the Broadcom BCM2835 32-bit system-on-chip delivering reliable processing speeds for embedded applications.
- Native Wireless LAN: Built-in 802.11 b/g/n wireless networking providing seamless local network and internet connectivity.
- Bluetooth 4.1 & BLE: Integrated Bluetooth Low Energy support for wireless peripheral pairing and short-range telemetry exchange.
- Compact Form Factor: Precision-molded PCB measuring only 65mm × 30mm × 5mm for effortless panel integration.
- Standard 40-Pin GPIO Header: Unpopulated pin layout offering full compatibility with industrial HATs, sensors, and actuator interfaces.
- Mini-HDMI Display Output: High-definition digital video interface supporting external monitors and configuration displays via adapter.
- Micro-B USB Interfaces: Dedicated ports for high-speed data transfer (OTG) and stable system power input.

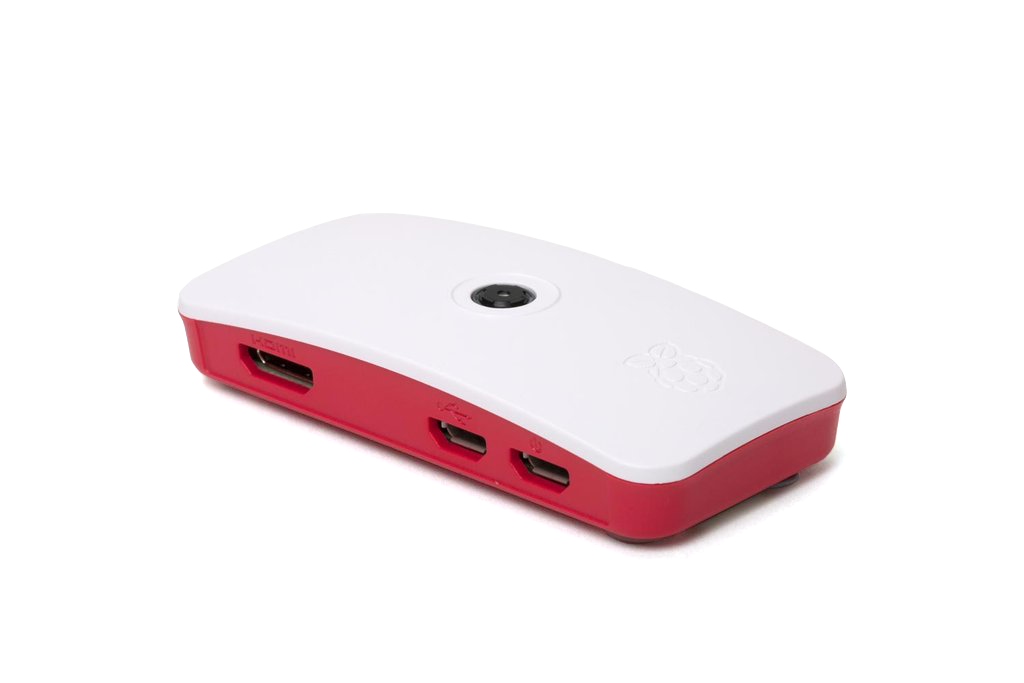

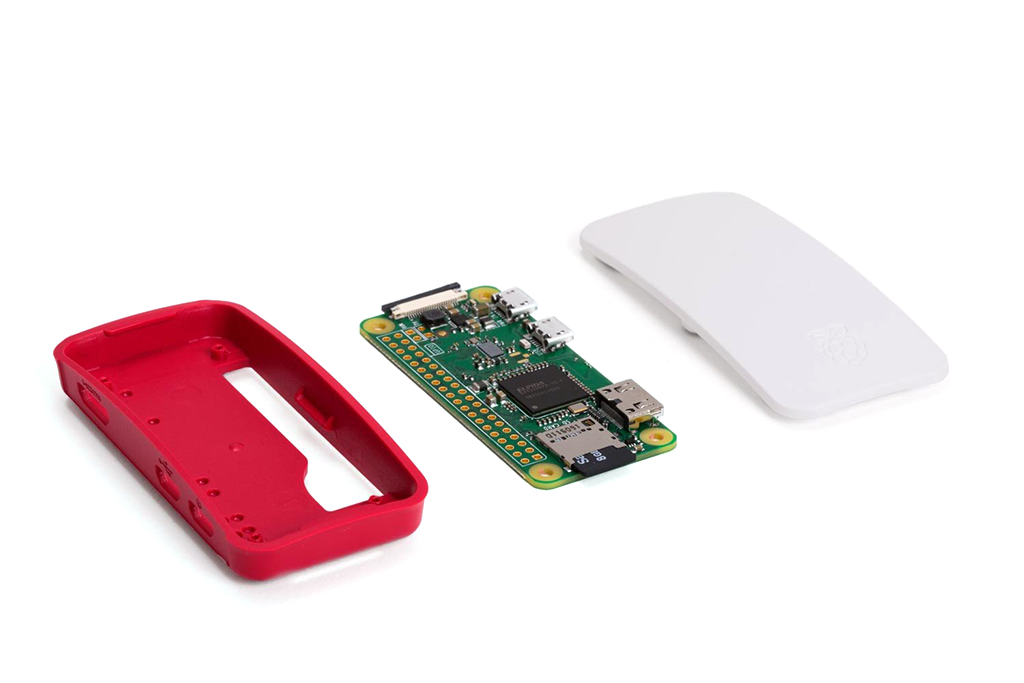

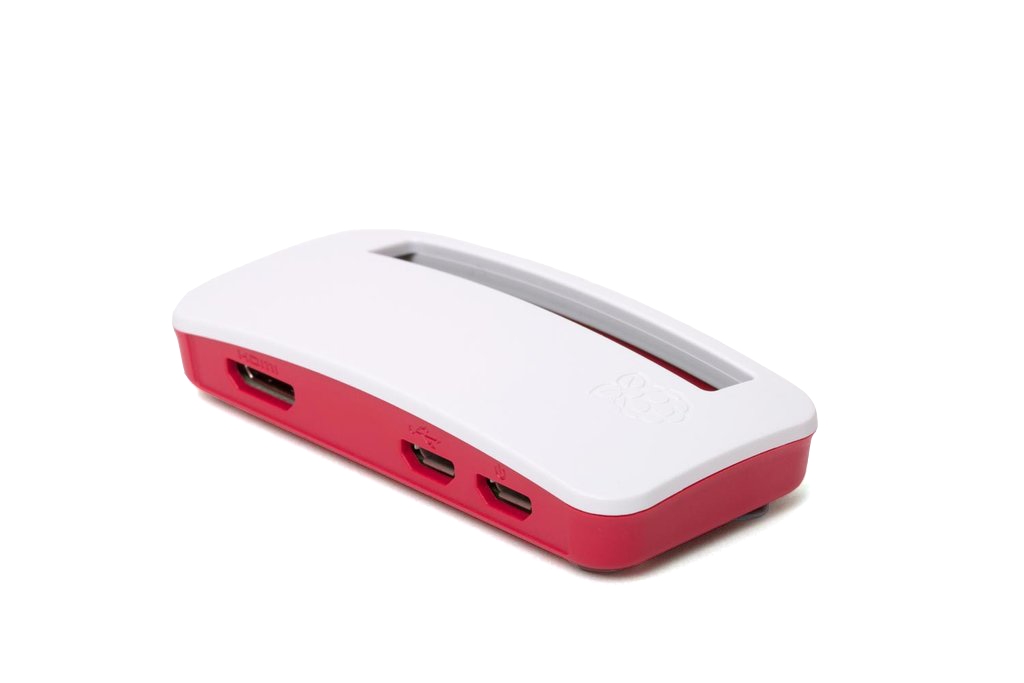

- Modular Protective Enclosure: Includes durable polymer housing featuring three interchangeable top lids (solid, GPIO access, and camera mount).
- Pre-Configured Storage & Power: Bundled with a 16GB Class 10 MicroSD card and a reliable 12.75W regulated power supply unit.
Benefits
- Immediate Out-of-the-Box Deployment: Eliminates individual component sourcing delays by bundling all vital power, storage, and housing accessories.
- Reduces System Footprint: Ultra-small physical dimensions allow integration into tight industrial enclosures and mechanical assemblies.
- Cost-Effective IoT Solution: Highly economical computing platform ideal for scaling multi-node sensor networks and automated monitoring stations.

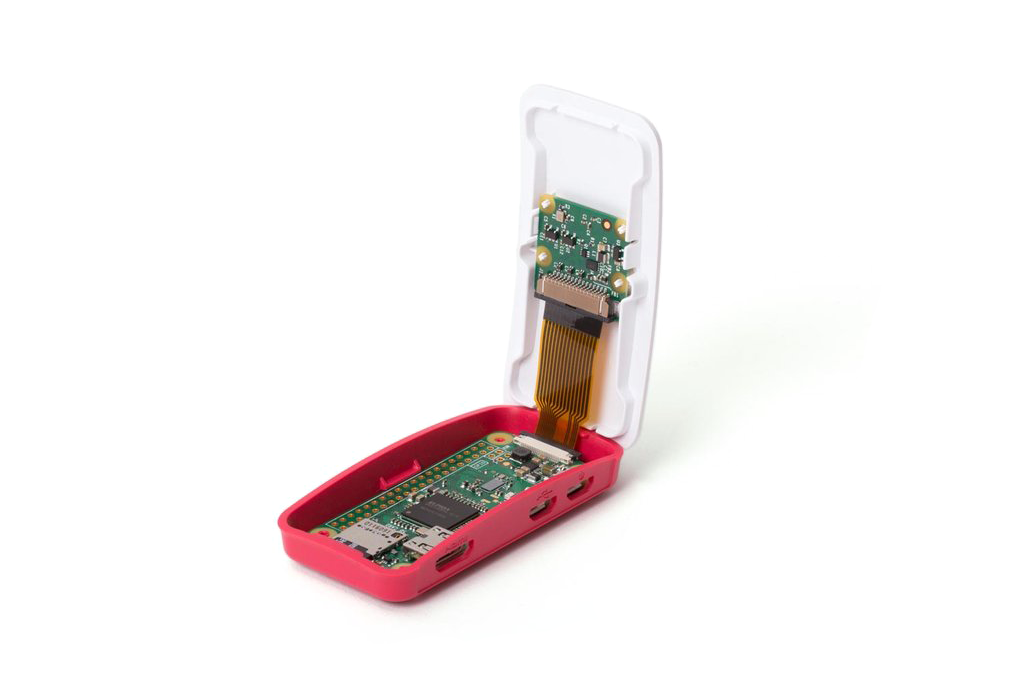

- Versatile Enclosure Configuration: Interchangeable case lids accommodate direct GPIO header access or ribbon cable routing for camera modules.
- Robust Ecosystem Compatibility: Maintains exact form-factor and pinout alignment with standard Raspberry Pi Zero accessories and mounting points.
Applications
- Industrial IoT Edge Gateways: Collecting and transmitting sensor telemetry in remote automated manufacturing environments.
- Embedded Automation Controllers: Acting as a dedicated local controller for machinery monitoring and relay switching.
- Headless Network Servers: Operating lightweight local DNS, VPN, or file-sharing server nodes.
- Machine Vision & Monitoring: Interfacing compact camera modules for local security imaging and process inspection.
- Educational Computing Labs: Affordable hardware platform for teaching embedded Linux programming and electronics.
- Smart Home Automation Hubs: Centralized control processing for wireless lighting, climate, and security peripherals.

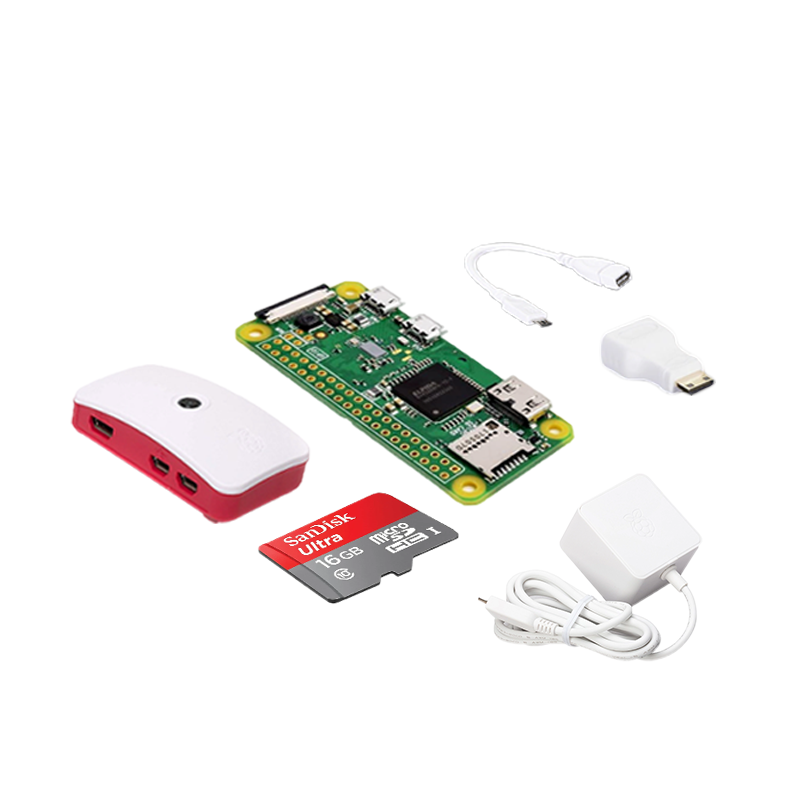

Package Includes
- 1 x Raspberry Pi Zero W V1.1 Single Board Computer (Built-in WiFi & Bluetooth)
- 1 x Official Raspberry Pi Zero/Zero W Protective Case (with 3 Interchangeable Lids & Rubber Feet)
- 1 x Mini HDMI Male to HDMI Female Adapter
- 1 x Official Raspberry Pi 12.75W Power Supply Unit (White)
- 1 x SanDisk 16GB Class 10 MicroSDHC Memory Card (Up to 98MB/s Read Speed)
- 1 x Official USB-B Male to USB-A Female Adapter
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Brand / Manufacturer | SPIDER Automation Component Line / Raspberry Pi Foundation Hardware |
| Product Category | Single-Board Computers & Starter Kits |
| Device Type | Embedded Micro-Computer Kit with Peripherals |
| Series / Model | Raspberry Pi Zero W V1.1 Complete Starter Bundle |
| SKU Identifier | SKU-SPIDER-RPI-ZERO-W-KIT |
| Main Processor (SoC) | Broadcom BCM2835 32-bit ARM-based Processor @ 1.0 GHz |
| System Memory (RAM) | 512MB LPDDR2 SDRAM |
| Wireless Communication | BCM43143 WiFi (802.11 b/g/n) & Bluetooth 4.1 with BLE |
| Display & Audio Output | Mini-HDMI Port (Supports High-Definition Video/Audio via Adapter) |
| USB & Data Interfaces | 1 × Micro-B USB for Data (OTG) & 1 × Micro-B USB for Power Input |
| Expansion Interface | Unpopulated 40-Pin GPIO Header (HAT Compatible) |
| Camera Interface | CSI Camera Connector (Requires 0.5mm Pitch Adapter Cable) |
| Storage Media | 16GB Class 10 MicroSDHC Card (Expandable via Onboard Slot) |
| Power Supply Rating | 12.75W Regulated Power Input Unit |
| Board Physical Dimensions | 65 mm × 30 mm × 5 mm |
| Shipping Weight | 0.25 kg (250 grams) |
| Shipping Dimensions (L × W × H) | 15.0 cm × 10.0 cm × 5.0 cm |
