Description

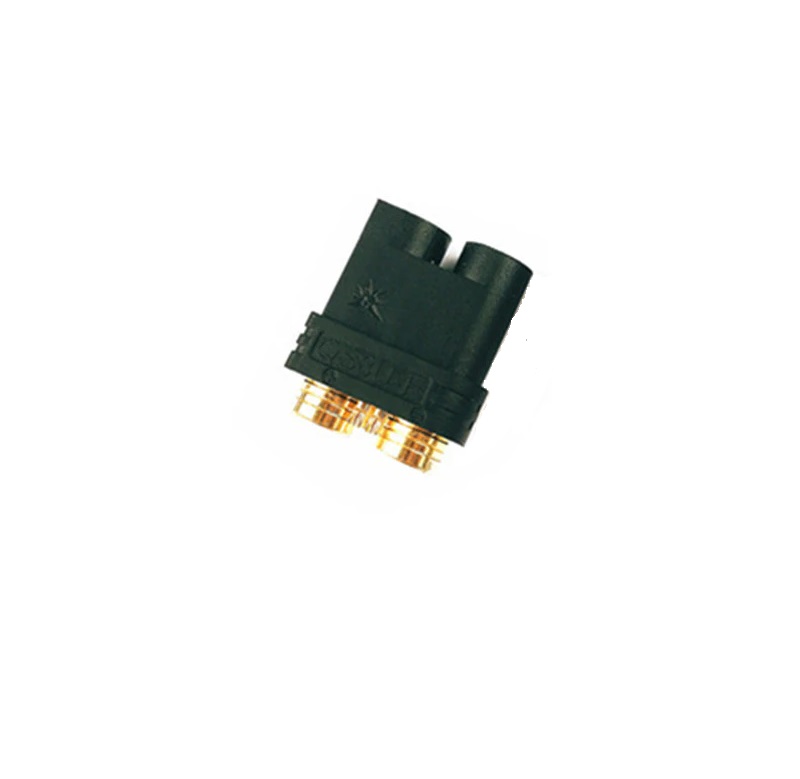

The QS8U Black Anti-Spark Female Connector is engineered for high-performance electrical applications, including custom electric vehicles, industrial drones, and energy storage systems. Built with rugged, high-temperature nylon housing, this connector is designed to withstand extreme thermal stress and demanding physical environments safely.
Featuring an integrated anti-spark mechanism, it effectively neutralizes initial surge currents to protect your speed controllers, ESCs, and battery packs from damaging electrical arcing. Equipped with pure gold-plated brass contacts, this female connector supports continuous currents ranging from 110A to 180A and accommodates wire sizes from 8AWG to 12AWG for ultra-efficient, low-resistance power transmission.
Note: This package includes the female connector housing and contact. Ensure proper wire stripping, crimping, and insulation methods are used to match the 8AWG-12AWG gauge range securely.
Key Features
- Advanced Anti-Spark Technology: Built-in resistance safely neutralizes initial surge currents, preventing dangerous sparks and contact pitting during plug-in.
- High-Current Capacity: Handles continuous current loads from 110A to 180A, ideal for high-drain power systems.
- Pure Gold-Plated Brass Contacts: Delivers superior electrical conductivity, maximum efficiency, and excellent resistance to oxidation over time.
- Rugged Housing: Durable construction provides exceptional durability and safety under extreme operational conditions.
- Wide Wire Compatibility: Designed to fit wire gauges ranging from 8AWG to 12AWG for flexible cabling setups.
Benefits
- Protect Sensitive Electronics: Eliminates high-amp connection arcs that can fry expensive controller capacitors and battery management systems.
- Rugged & Reliable: Built to endure the high vibrations and demanding operational cycles of electric mobility and heavy-duty applications.
- Low Power Loss: Premium gold-plated contacts minimize heat generation during peak power draws.
Applications
- Electric Vehicles & Mobility: High-power connections for custom e-bikes, electric scooters, and light electric vehicles.
- Energy Storage Systems (ESS): Safe power routing for auxiliary lithium battery banks and portable power stations.
- Heavy-Duty Drones & UAVs: Main power supply harness connections for industrial multirotors and high-performance craft.
Package Includes
- 1 x QS8U Black Anti-Spark High-Current Female Connector
Specifications
| Parameter | Specification |
|---|---|
| Item Type | High-Current Anti-Spark Power Connector |
| Model Number | QS8U-B.F (Female Housing) |
| Gender | Female |
| Color | Black |
| Contact Material | Pure Gold-Plated Brass |
| Housing Material | High-Temperature Resistant Nylon Plastic |
| Current Handling Capacity | 110A to 180A Continuous |
| Recommended Wire Gauge | 8AWG to 12AWG |
| Operating Temperature Range | -30°C to +200°C |
| Net Weight / Shipping Weight | ~30 g / 0.045 kg |
| Shipping Dimensions | 12 cm × 8 cm × 2 cm |
