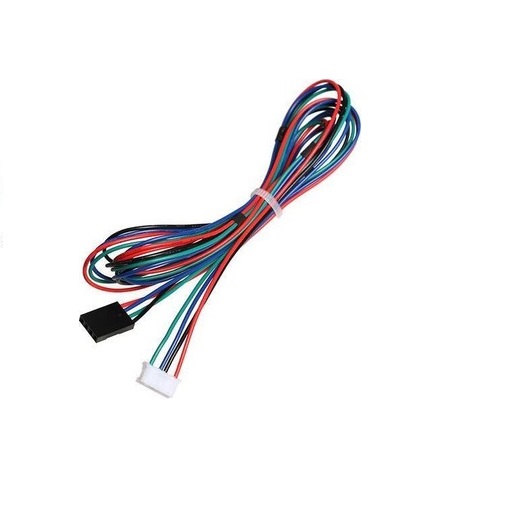

SPIDER Automation 700 mm Pure Copper NEMA 17 Stepper Motor Cable | Flexible Wiring Harness
Description
Systematize your 3D printer and automation wiring with the reliable SPIDER Automation 700 mm Pure Copper Replacement Cable for NEMA 17 Stepper Motor. Designed specifically as a high-quality replacement or extension harness, the conductors of this 700 mm cable consist of pure copper to ensure low resistance and stable signal transfer. Featuring an overall length of 700 mm, it provides the flexibility needed to install your stepper motors neatly across custom builds, enclosures, or 3D printer chassis. The cable is equipped with a 6-pin JST XH connector on one end and a 4-pin Dupont connector on the other, making it exceptionally easy to interface NEMA 17 stepper motors with a wide variety of stepper motor drivers.
Key Features
- Pure Copper Wiring: Constructed with high-purity copper conductors for excellent electrical conductivity and long-term durability.
- 700 mm Optimized Reach: Convenient length allows for clean, organized, and systematic cable management in standard builds.
- Dual-Connector Configuration: Features a standard 6-pin JST XH connector on the motor end and a 4-pin Dupont connector on the driver end.
- High Flexibility: Specially engineered flexible cable jacket designed to withstand movement and vibration in active machinery.
Benefits
- Reliable Signal Integrity: Pure copper construction prevents voltage drops and ensures precise pulse transmission to the motor coils.
- Hassle-Free Routing: Balanced length eliminates excess slack or awkward splicing during assembly.
- Easy Installation: Pre-crimped with factory-matched connectors for plug-and-play compatibility.
- Versatile Application: Perfect for 3D printers, DIY CNC routers, engravers, and custom mechatronic projects.
Applications
- 3D Printer Wiring: Extending or replacing axis motor cables (X, Y, Z, or Extruder axes).
- CNC & Laser Engravers: Systematic wiring layouts for moving gantry systems.
- Custom Automation Jigs: Prototyping setups requiring clean, reliable stepper motor interconnections.
Package Includes
- 1 x 700 mm Pure Copper Cable for NEMA 17 Stepper Motor
Specifications
| Parameter | Specification |
|---|---|
| Item Type | Stepper Motor Replacement Cable |
| Brand / Series | SPIDER Automation / Stepper Accessories |
| Compatible Motor Type | NEMA 17 Stepper Motors |
| Conductor Material | Pure Copper |
| Cable Length | 700 mm |
| Connector Type | 6-Pin JST XH (Motor Side) and 4-Pin Dupont (Driver Side) |
| Shipping Weight | 0.14 kg |
| Shipping Dimensions | 5 × 5 × 3 cm |
