Description

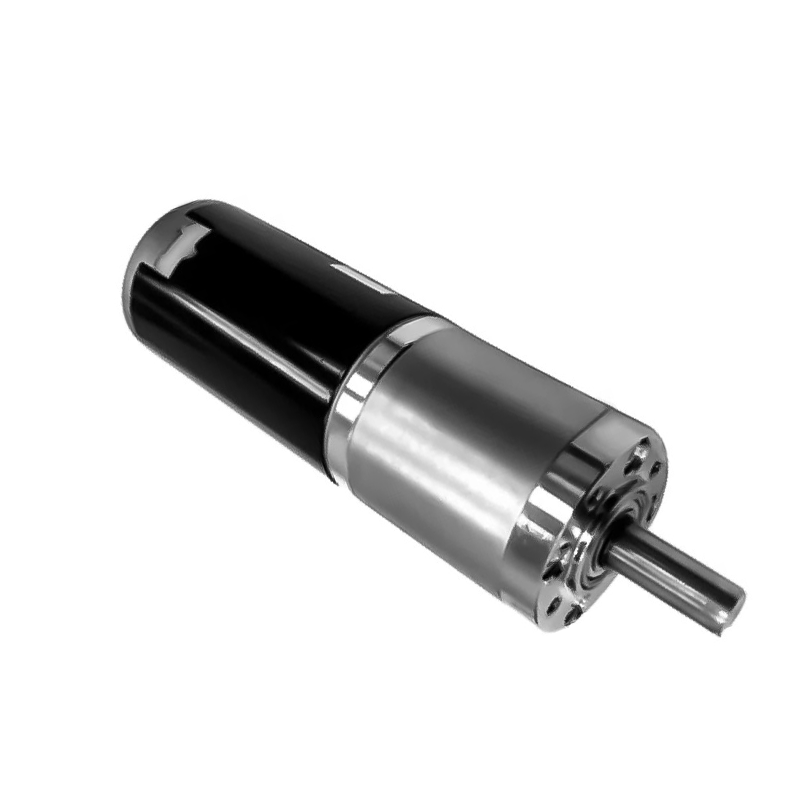

Considered the “Big Brother” to the popular IG32 and IG42 series, the IG45-14K Planetary DC Geared Motor is a heavy-duty, high-power actuator built for demanding automation and robotics applications. Featuring a robust 45mm diameter planetary (epicyclic) gearbox with a 14:1 gear ratio, this 24V motor delivers an impressive rated torque of 78 N-cm (with a massive stall torque up to 40 kg-cm) at 438 RPM. By omitting built-in encoders, the IG45 series provides exceptional torque density and industrial-grade power at a highly cost-effective price point.
Driven by a reliable brushed permanent magnet DC motor drawing up to 3.5A rated current (12.42A stall) with a 49.5W power rating, this motor is engineered to handle extreme mechanical loads with minimal backlash and high transmission efficiency. Every unit is rigorously bench-tested at the warehouse for its extreme pushable limits, ensuring dependable performance. Whether you are building heavy mobile rovers, automated industrial machinery, or high-torque mechanical systems, the IG45-14K provides unmatched muscle for your build.
Note: Product images are for reference only. The actual product may vary slightly in appearance or dimensions.
Key Features
- High-Efficiency Planetary Gearbox: Precision metal epicyclic gearing ensures low backlash, high torque capacity, and smooth power transmission under heavy loads.
- Heavy-Duty 45mm Form Factor: Larger diameter robust housing designed to deliver significantly more power and torque than smaller 32mm and 42mm models.
- Massive Torque Output: Delivers 78 N-cm of rated torque and an incredible 40 kg-cm stall torque capability at 24V.
- Reversible & Variable Speed: Brushed permanent magnet DC motor supports bidirectional control and easy speed regulation via PWM drivers.
- Industrial Power Delivery: Outputs 49.5W of rated power, making it ideal for high-demand automation and drive systems.
Benefits
- Exceptional Cost-to-Torque Value: Delivers heavy-duty industrial performance without the added cost of integrated encoder feedback.
- Reliable Under Extreme Stress: Robust all-metal internal gearing distributes mechanical forces evenly, preventing premature gear stripping.
- Versatile 24V Operation: Easily integrates with standard heavy-duty motor controllers, robot drivers, and 24V power supply systems.
- Rigorously Tested: Verified for extreme operating limits to guarantee long-term operational durability.
Applications
- Heavy Mobile Robots & AGVs: Excellent high-torque drive motor for large autonomous rovers and heavy robotic platforms.
- Industrial Automation & Conveyors: Perfect for driving automated production lines, heavy-duty material handling, and sorting equipment.
- Custom Mechanical Actuators: Ideal for building powerful linear actuators, automated gates, and motorized lifting mechanisms.
- Robotics & Mechatronics Projects: A robust power source for advanced maker and engineering projects requiring high torque density.
Package Includes
- 1 x IG45-14K Planetary DC Geared Motor (24V, 438 RPM, 78 N-cm)
Specifications
| Parameter | Specification |
|---|---|
| Model Series | IG45-14K |
| Item Type | Planetary DC Geared Motor |
| Rated Voltage | 24V DC |
| Rated Speed | 438 RPM |
| Rated Torque | 78 N-cm |
| Stall Torque | 40 kg-cm |
| Power Rating | 49.5W |
| Rated Current | 3.5A |
| Stall Current | 12.42A |
| Gearbox Diameter | 45 mm |
| Gear Ratio | 14:1 (Approx. 0.584) |
| Gear Material | All-Metal Gears |
| Motor Type | Brushed Permanent Magnet DC Motor |
| Motor Length | 127.5 mm |
