Description

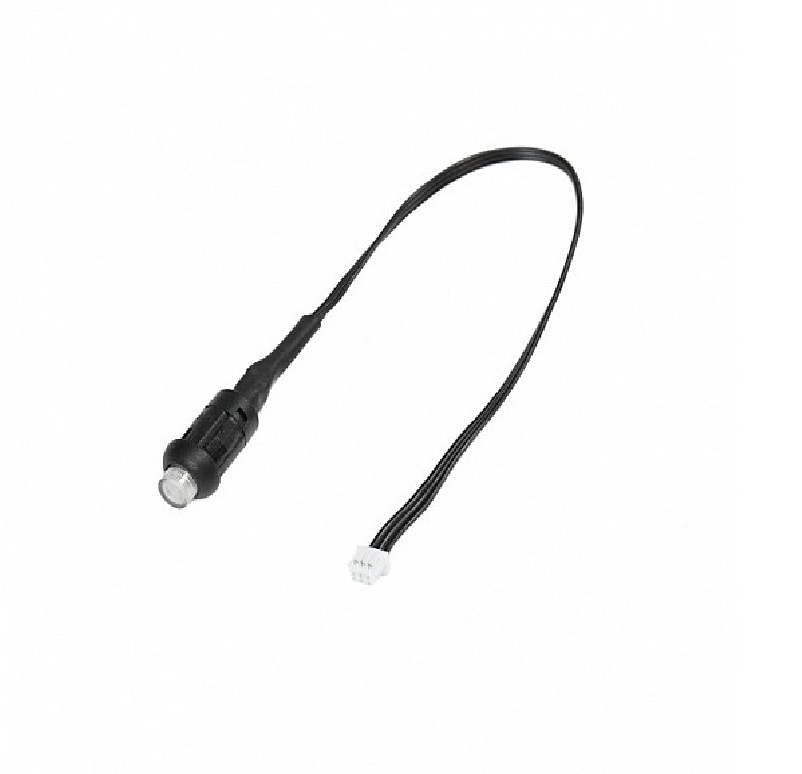

The Pixhawk Passive Safety Switch is an essential safety accessory designed for Pixhawk-based flight controllers used in drones, UAVs, autonomous vehicles, and robotics projects. It allows the user to safely enable or disable motor and servo outputs, preventing accidental motor startup during system initialization, configuration, transportation, or maintenance.
The module features an integrated status LED indicator that provides clear visual feedback about the flight controller’s operating state. During startup, the LED blinks continuously while the system initializes. Once initialization is complete, the LED blinks intermittently to indicate that the system is ready. Pressing the safety switch enables motor outputs, after which the LED remains solid until the system is disarmed.
The Pixhawk Passive Safety Switch improves operational safety by ensuring that ESCs and motors remain disabled until the operator intentionally activates the system. Its lightweight and compact design allows easy installation on UAV frames, fixed-wing aircraft, VTOL platforms, autonomous ground vehicles, and other Pixhawk-compatible control systems.
Note: Product appearance may vary slightly depending on the manufacturing batch. This passive safety switch is intended for use with compatible Pixhawk flight controllers.
Features
- Compatible with Pixhawk flight controllers
- Dedicated safety switch for motor enable/disable control
- Integrated status LED indication
- Provides safe motor arming operation
- Compact and lightweight design
- Simple plug-and-play installation
- Reliable operation for UAV and robotics applications
- Designed for repeated operation and long service life
Benefits
- Prevents accidental motor startup during setup
- Improves operator safety during maintenance
- Provides clear visual indication of controller status
- Reduces the risk of unintended motor activation
- Easy integration with Pixhawk autopilot systems
- Lightweight design minimizes payload impact
- Suitable for professional and hobby UAV platforms
- Enhances overall flight system safety
Applications
- Pixhawk Flight Controllers
- Multirotor Drones
- Quadcopters
- Hexacopters
- Octocopters
- Fixed-Wing UAVs
- VTOL Aircraft
- Autonomous Ground Vehicles (UGV)
- Robotics Projects
- Drone Research & Development
- Autonomous Vehicle Platforms
- Educational UAV Projects
- Industrial Drone Systems
- Flight Controller Development
- RC Aircraft Systems
Package Includes
- 1 x Pixhawk Passive Safety Switch with Status LED
Specifications
| Parameter | Specification |
|---|---|
| Product Name | Pixhawk Passive Safety Switch |
| Compatible Controller | Pixhawk Flight Controller |
| Function | Motor and Servo Output Safety Enable Switch |
| LED Indicator | Integrated Status LED |
| System Status | Blinking (Initialization), Slow Blinking (Ready), Solid (Outputs Enabled) |
| Length | 40 mm |
| Width | 30 mm |
| Height | 5.5 mm |
| Buzzer Volume | 50 dB |
| Shipping Weight | 0.003 kg |
| Shipping Dimensions | 5 × 4 × 1 cm |
