Description

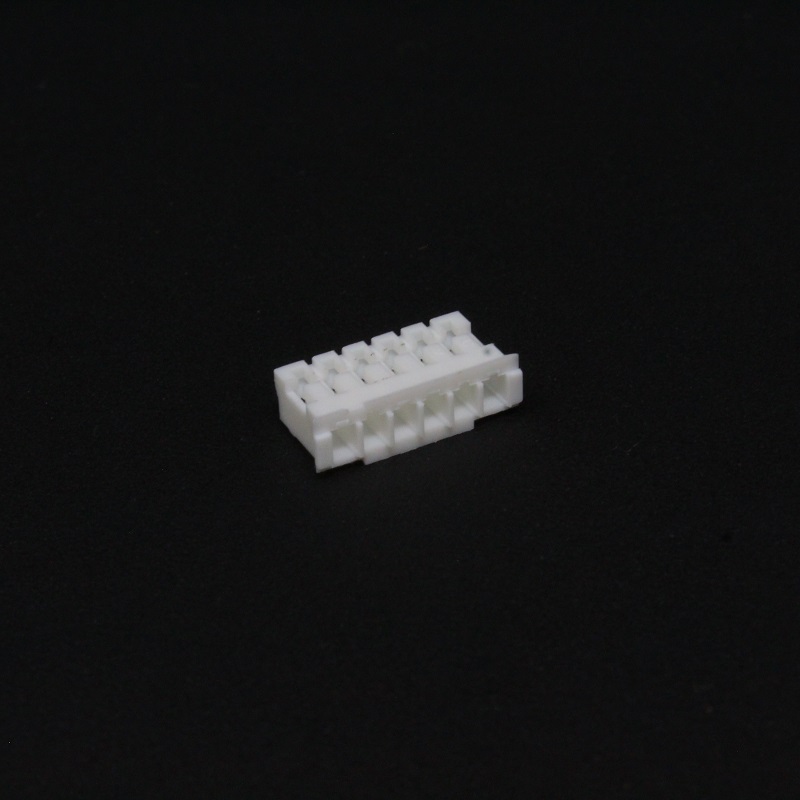

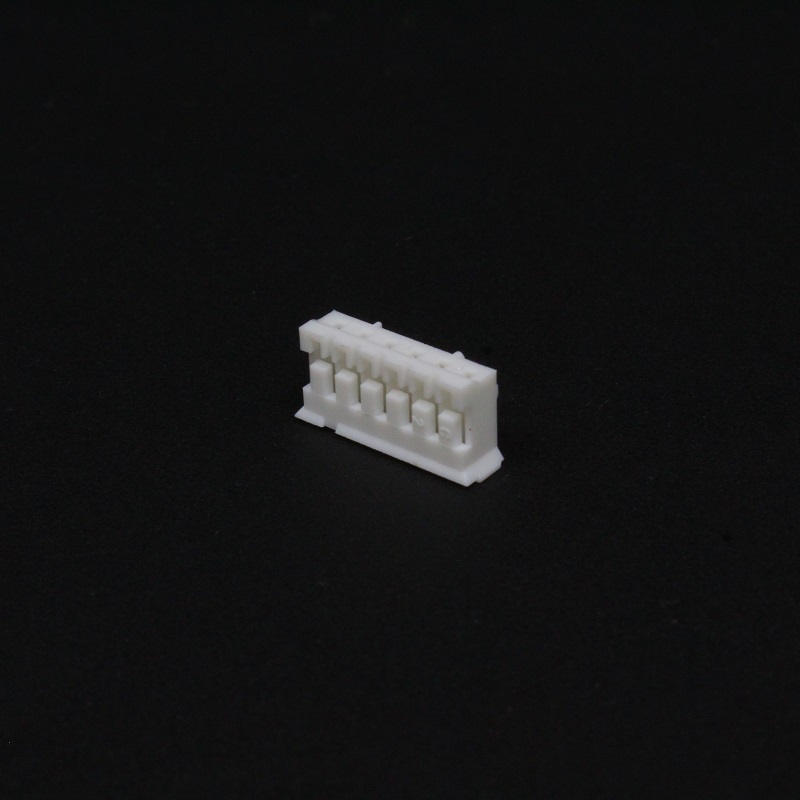

The PH-A/AW 2.0mm 6-pin female housing connector is engineered to provide reliable electrical connectivity for a wide range of electronic applications. This component is rated to support a current of 2A AC/DC and a voltage of 250V AC/DC, facilitating efficient power and signal transmission.
Designed for high performance, this connector features a maximum contact resistance of 10MΩ and a minimum insulation resistance of 1000MΩ. It is built to operate consistently within an environmental temperature range of -25°C to +85°C and is compatible with wire gauges ranging from AWG #30 to #24, offering flexibility for various wiring requirements.
Key Features
- Connector Type: 6-pin Female Housing Connector.
- Pitch: 2.0 mm compact spacing.
- Electrical Ratings: 2A AC/DC current and 250V AC/DC voltage.
- Resistance Specifications: 10MΩ max contact resistance and 1000MΩ min insulation resistance.
- Temperature Range: -25°C to +85°C operating capacity.
- Wire Compatibility: Supports AWG #30 to #24 wire gauges.
Applications
- PCB-to-wire signal routing in compact electronics.
- Internal connectivity for sensor modules and consumer devices.
- Reliable interfaces for modular control systems.
Package Includes
- 1 x PH-A/AW 2mm 6-pin Female Housing Connector
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Current | 2A AC, DC |
| Rated Voltage | 250V AC, DC |
| Contact Resistance | 10MΩ max |
| Operating Temperature | -25°C to 85°C |
| Wire Gauge Compatibility | AWG #30 to #24 |
| Number of Pins | 6 |
| Shipping Weight | 0.005 kg |
| Shipping Dimensions | 5 × 5 × 2 cm |
