SPIDER Automation NanoPi Fire3-LTS Octa-Core ARM Board | Samsung S5P6818 Mini Development Board | for Embedded Systems, AI & IoT
Description

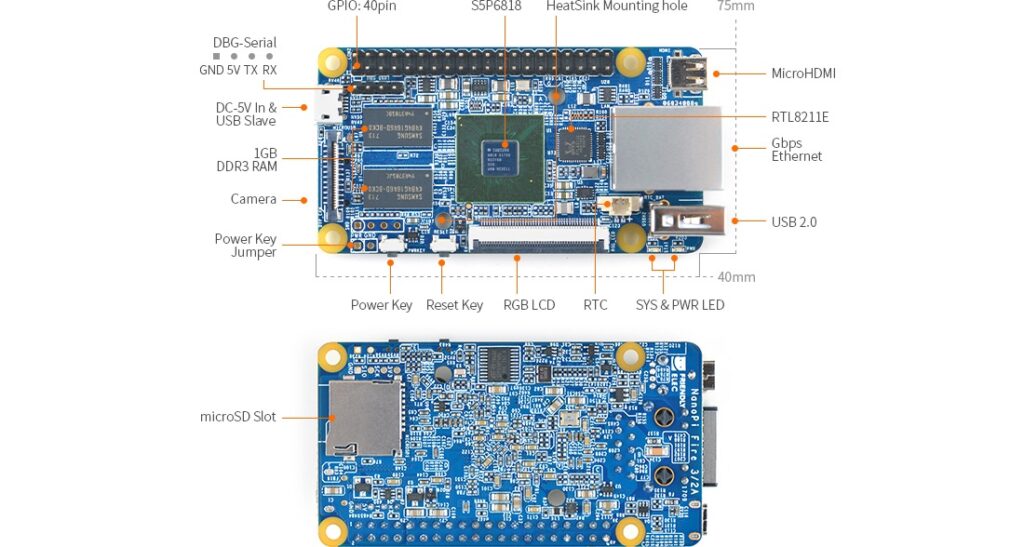

The SPIDER Automation NanoPi Fire3-LTS is a super tiny Octa-Core Cortex-A53 ARM board. It uses Samsung’s S5P6818 SoC and has onboard 1G DDR3 RAM, Gbps Ethernet, MicroHDMI port, CMOS camera interface, and RGB LCD interface. Its GPIO is compatible with RPi’s GPIO. Measuring only 75 x 40 mm, the NanoPi Fire3 features an MCU-based power management system and supports dynamic voltage control with good performance and reliability.
Key Features
- Octa-Core Processing: Built with Samsung’s S5P6818 Octa-Core Cortex-A53 processor clocked at 1.4GHz.
- Efficient Memory: Integrated with 1GB DDR3 RAM for responsive multitasking and smooth task execution.
- High-Speed Networking: Onboard Gigabit Ethernet port for fast and reliable wired network connections.
- Display & Multimedia: RGB LCD interface with capacitive touch support alongside a Micro-HDMI port supporting 1080P at 60fps.
- Smart Power Management: MCU-based power system supporting dynamic voltage control and time settings for power on/off.
- Versatile OS Compatibility: Flexible operating system support including Android, Debian, FriendlyCore, and FriendlyWrt 64-bit.
Benefits
- Ultra-Compact Footprint: Minimalist 75 x 40 mm board design fits effortlessly into tight DIY enclosures and custom embedded rigs.
- Raspberry Pi GPIO Compatibility: Easily reuse existing RPi HATs, sensors, and expansion modules without extra hassle.
- Advanced Visual Interfaces: Direct support for RGB LCD touch displays and high-definition HDMI output for custom user interfaces.
Applications
- Artificial Intelligence & Edge Computing: Compact processing unit for lightweight machine learning models and edge AI tasks.
- Distributed Computing & IoT Systems: Scalable nodes for cluster computing, smart automation gateways, and sensor monitoring.
- Embedded Prototyping & HMI Terminals: Excellent core board for developing custom industrial human-machine interfaces and smart displays.
- Custom Linux & Android Development: Powerful platform for developers testing custom scripts, Qt applications, and embedded operating systems.
Package Includes
- 1 x SPIDER Automation NanoPi Fire3-LTS
Specifications
| Parameter | Specification |
|---|---|
| Item Type / Series | Single Board Computer / Nano Series |
| Model Name | NanoPi Fire3-LTS |
| Brand | SPIDER Automation |
| CPU | Samsung S5P6818, Octa-Core ARM Cortex-A53 |
| Clock Speed | 1.4 GHz |
| RAM Capacity | 1GB DDR3 |
| Network Interface | Gigabit Ethernet Port (Gbps) |
| USB Host | USB 2.0 Type A x 1 |
| Debug Port | DEBUG UART x 1 |
| Storage Interface | Micro SD Card Slot |
| Display & Video | HDMI 1.4A, microHDMI (Type-D), 1080P60, RGB LCD Interface w/ Capacitive Touch |
| Indicators & Power | Power LED x 1, System LED x 1 | MCU-based Power Management |
| Operating Temperature | -20°C to 70°C |
| Supported Operating Systems | Android, Debian, FriendlyCore (Linux Kernel 4.4 + Qt5.9 + OpenGL ES2.0), FriendlyWrt 19.07-snapshot (64-bit) |
