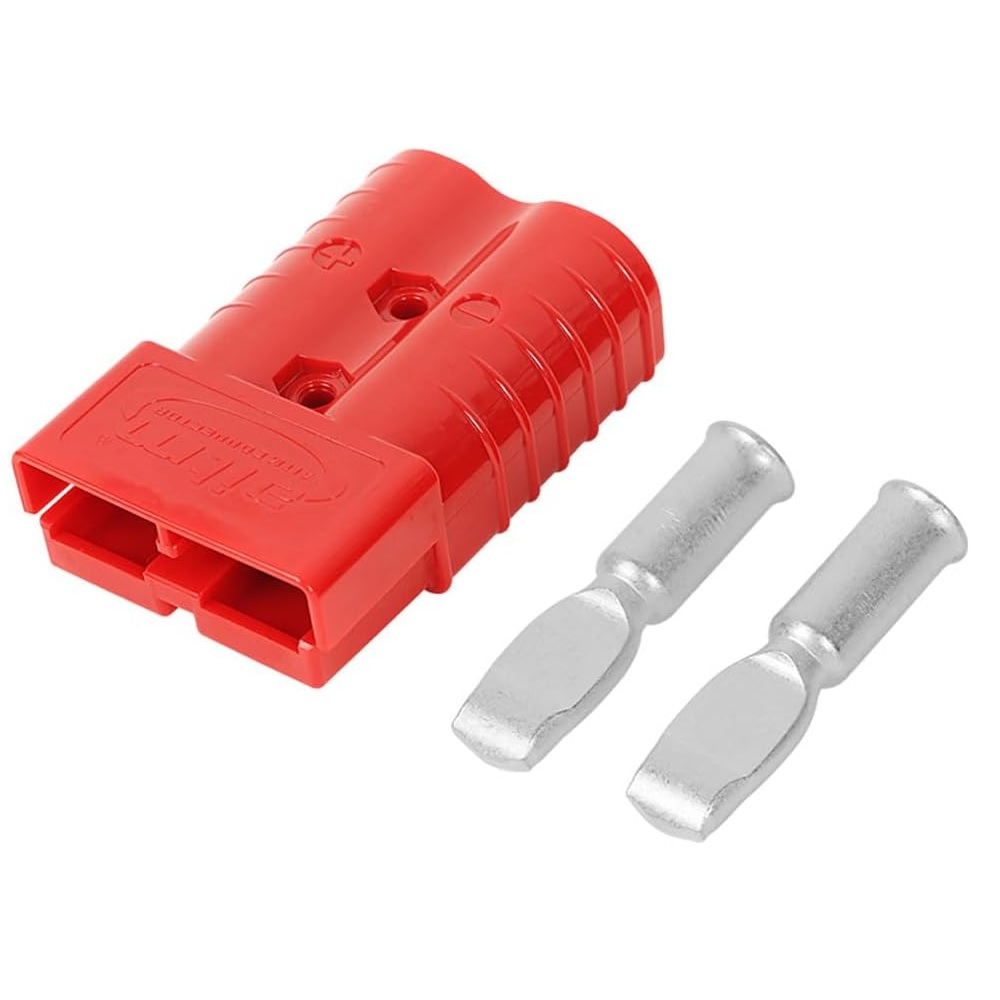

SPIDER Automation SA350 High-Current Power Plug 350A
Description
SPIDER Automation SA350 High-Current Power Plug 350A is built for heavy-duty electrical systems requiring ultra-high current transmission with maximum safety. Whether you are wiring industrial battery storage banks, electric vehicle charging infrastructure, or heavy material handling equipment, this multipole power connector delivers uncompromising performance.
Constructed with durable polycarbonate (PC) insulation meeting rigorous UL94 V-0 flame-retardant standards, the SA350 withstands harsh operating environments, temperature extremes, and mechanical stress. Designed to accept heavy 1/0 to 3/0 AWG power cables, it guarantees secure, low-resistance conduction to prevent overheating during peak high-drain operations.
Key Features
- Massive 350A Current Rating: Engineered specifically for extreme power transfer in high-capacity DC systems.
- Heavy Cable Support: Accommodates thick 1/0 to 3/0 AWG multi-strand power leads for minimal electrical resistance.
- UL94 V-0 Flame Retardant: High-grade polycarbonate housing offers superior thermal resilience and fire safety.
- Robust Mechanical Design: Withstands rigorous physical handling, heavy vibration, and industrial wear.
- High Withstanding Voltage: Rated up to 2,200V AC dielectric strength with 5,000 MΩ insulation resistance.
- Wide Operating Range: Performs reliably in harsh environments from -20°C up to +105°C.
Benefits
- Safe High-Power Handling: Safely manages massive electrical loads without thermal breakdown or connector degradation.
- Industrial Durability: Rugged engineering ensures long-term operational reliability in commercial and mobile setups.
- Low Voltage Drop: Heavy pin contact area ensures efficient energy delivery across high-drain power circuits.
Applications
- Energy Storage Systems (ESS): High-capacity lithium battery racks and solar power bank interconnects.
- Electric Vehicles & Charging: Heavy-duty DC power links for commercial EVs, forklifts, and utility carts.
- Industrial Equipment: High-current power distribution for factory machinery, welding gear, and backup generators.
- Renewable Energy Rigs: Heavy solar and wind power harvesting arrays requiring robust disconnect terminals.
Package Includes
- 1 x SA350 High-Current Power Plug Unit (350A)
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand / Series | SPIDER Automation / SA High-Current Power Series |
| Item Type | Multipole High-Current Power Plug / Connector |
| Model Order Code / SKU | SA350H-R.2T / SKU-SPIDER-SA350-350A |
| Housing Material | Polycarbonate (PC) with UL94 V-0 Flammability Rating |
| Operating Temperature Range | -20°C to +105°C |
| Maximum Current Capacity | < 350 A |
| Recommended Wire Gauge | 1/0 to 3/0 AWG |
| Withstanding Voltage | 2,200 Volts AC |
| Insulation Resistance | 5,000 MΩ |
| Item Weight | 231 g |
| Package Shipping Weight | 0.231 kg (231 g) |
| Package Shipping Dimensions | 11 cm × 8 cm × 4 cm |
