Description
The Motoron M1U550 is a high-efficiency, single-channel motor controller designed for precise, bidirectional control of a single brushed DC motor. With an ultra-compact form factor of only 0.6″ × 0.6″, this module is specifically engineered for extremely space-constrained environments such as miniature robotics, precision actuators, or portable mechatronic devices. It supports a wide motor supply voltage range of 1.8V to 22V and can handle up to 1.8A of continuous current, with transient peak bursts up to 5A.
Unlike standard PWM-based controllers, the M1U550 communicates via a UART serial (TTL) interface, which eliminates the need for dedicated PWM pins on your host microcontroller and allows for easy daisy-chaining of multiple controllers on a single serial bus. The module is fully programmable, offering customizable acceleration, starting speeds, and direction-change delay parameters to protect your hardware and ensure smooth motion. This version comes pre-assembled with soldered header pins for immediate, reliable integration.
Key Features
- Single-Channel Control: Dedicated, high-precision bidirectional control for one brushed DC motor.
- UART Serial Interface: Uses standard TTL serial communication, simplifying wiring and reducing GPIO pin usage on your microcontroller.
- Wide Operating Range: Supports motor supply voltages from 1.8V to 22V, making it highly versatile for various battery-operated or DC-powered setups.
- High-Current Capability: Delivers 1.8A continuous output with 5A peak capacity for high-torque startup requirements.
- Advanced Firmware: Features fully configurable acceleration profiles, command timeouts, and directional-change delays for professional-grade motion control.
- Robust Safety Features: Integrated reverse-voltage protection safeguards the internal circuitry against accidental polarity reversal.
- Daisy-Chain Scalability: The serial bus architecture allows multiple M1U550 units to be connected to the same UART line for complex, multi-motor systems.
Industrial Utility
- System Integration: Small footprint and header-based connectivity make it ideal for rapid prototyping in dense, miniature electronic enclosures.
- Resource Efficiency: Offloads complex motor timing/PWM generation to the controller, freeing up host microcontroller resources for higher-level tasks.
- Software Flexibility: Comprehensive library support for Arduino and Python ensures rapid deployment in a wide range of embedded environments.
Package Includes

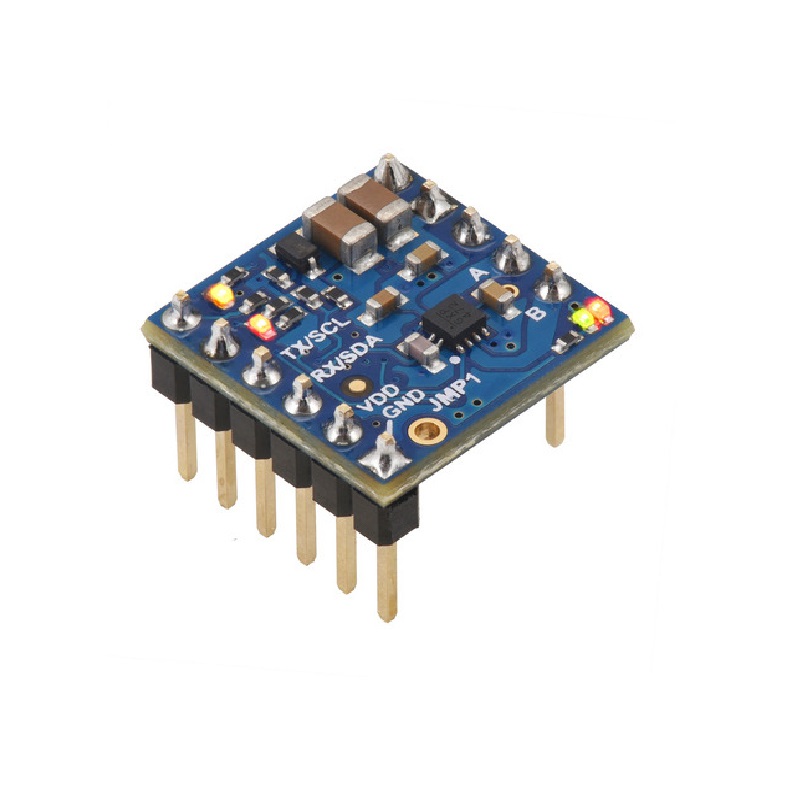

- 1 x Motoron M1U550 Single Serial Motor Controller (Soldered Header Pins)
Technical Specifications
| Parameter | Specification |
|---|---|
| Item Type | Single-Channel Serial Motor Controller |
| Controller Model | Motoron M1U550 |
| Number of Channels | 1 |
| Motor Supply Voltage | 1.8V to 22V DC |
| Continuous Current | 1.8A |
| Peak Current | 5A |
| Communication | UART (TTL Serial) |
| Dimensions | 0.6″ × 0.6″ |
| Physical Interface | Soldered Header Pins |
