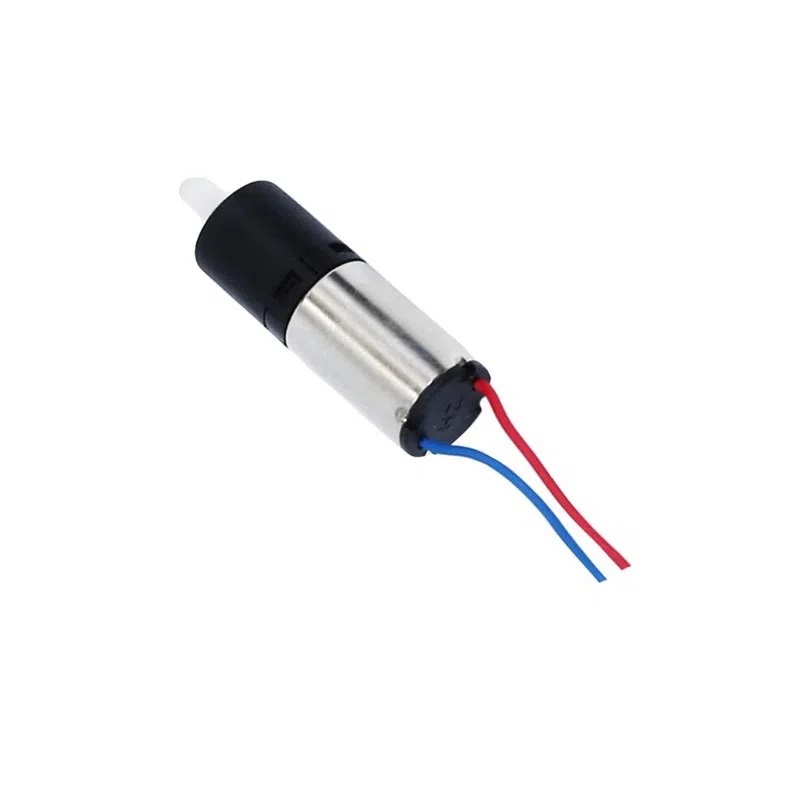

SPIDER Automation Micro Planetary Gear Motor 6mm Dia 242RPM | DC Gear Motor | Low-Speed High-Torque Miniature Actuator
Description
SPIDER Automation Micro Planetary Gear Motor uses all levels of gear transmission to achieve the purpose of speed reduction. The gearbox of the gear motor is composed of various gear pairs. A small gear can be used to drive a large gear to achieve a certain reduction. This kind of structure can greatly reduce speed. The miniature dc gear motor is generally used for low-speed and high-torque transmission equipment. The gear with fewer teeth on the input shaft of the gearbox will be meshed with a larger gear on the output shaft to achieve the purpose of deceleration of high-speed rotating electric motors.
Key Features
- Low Noise: Precision engineering ensures quiet mechanical operation during continuous duty cycles.
- Low Current Draw: Optimized electrical parameters draw minimal current (60mA) for battery-powered efficiency.
- Long Service Life: Durable gear pairs and structural components built for extended operational longevity.
- High Torque Density: Small-sized DC gear motor delivering big torque performance at low output speeds.
- Multi-Layer Gearbox: Features a robust 3-layer gear configuration for reliable speed reduction and force transmission.
Benefits
- Miniature Scale Integration: Extremely lightweight build (1 gram shipping weight) fits seamlessly into ultra-compact designs.
- Precision Deceleration: High gear ratio of 136.02 effectively converts rapid motor RPM down to a usable 242 RPM.
- Reliable Micro-Actuation: Stable electrical characteristics provide dependable performance for miniature automation tasks.
Applications
- Miniature Robotics: Micro-servos, miniature crawler drives, and compact actuation limbs.
- Precision Medical Devices: Miniature pumps, diagnostic mechanisms, and wearable health gadgets.
- Precision Instruments: Small-scale optical focusers, automated gauges, and miniature mechanical counters.
- Model Making: Scale models, motorized miniatures, and custom hobbyist engineering projects.
- Consumer Electronics: Tiny motorized mechanisms in cameras, smart gadgets, and automated toys.
Package Includes
- 1 x Micro Gear Motor, 6mm Dia., 140g.cm
Specifications
| Parameter | Specification |
|---|---|
| Item Type / Motor Type | Micro Planetary / DC Gear Motor |
| Brand | SPIDER Automation |
| Motor Diameter | 6 mm |
| Rated Voltage | 3V DC |
| Operating Voltage Range | 2.5V ~ 3V DC |
| Rated Current | 60 mA |
| Rated Speed | 242 RPM |
| No Load Speed | 33,000 RPM |
| Gear Ratio | 136.02 |
| Gear Layers | 3 Layers |
| Shipping Weight | 0.001 kg |
| Shipping Dimensions | 9 × 7 × 1 cm |
