Description
The MC33079DT is a high-performance, low-noise quad operational amplifier IC manufactured by STMicroelectronics. It is specifically designed for applications where high bandwidth, low distortion, and low-noise performance are critical. This device combines high-gain bandwidth and a fast slew rate, making it an excellent choice for demanding audio, active filter, and signal conditioning applications.
The quad-channel architecture allows for high-density analog design, and its robust 28V supply rating provides sufficient headroom for high-swing signal processing. Its compact SOIC-14 surface-mount package is optimized for modern, high-density printed circuit board (PCB) layouts.

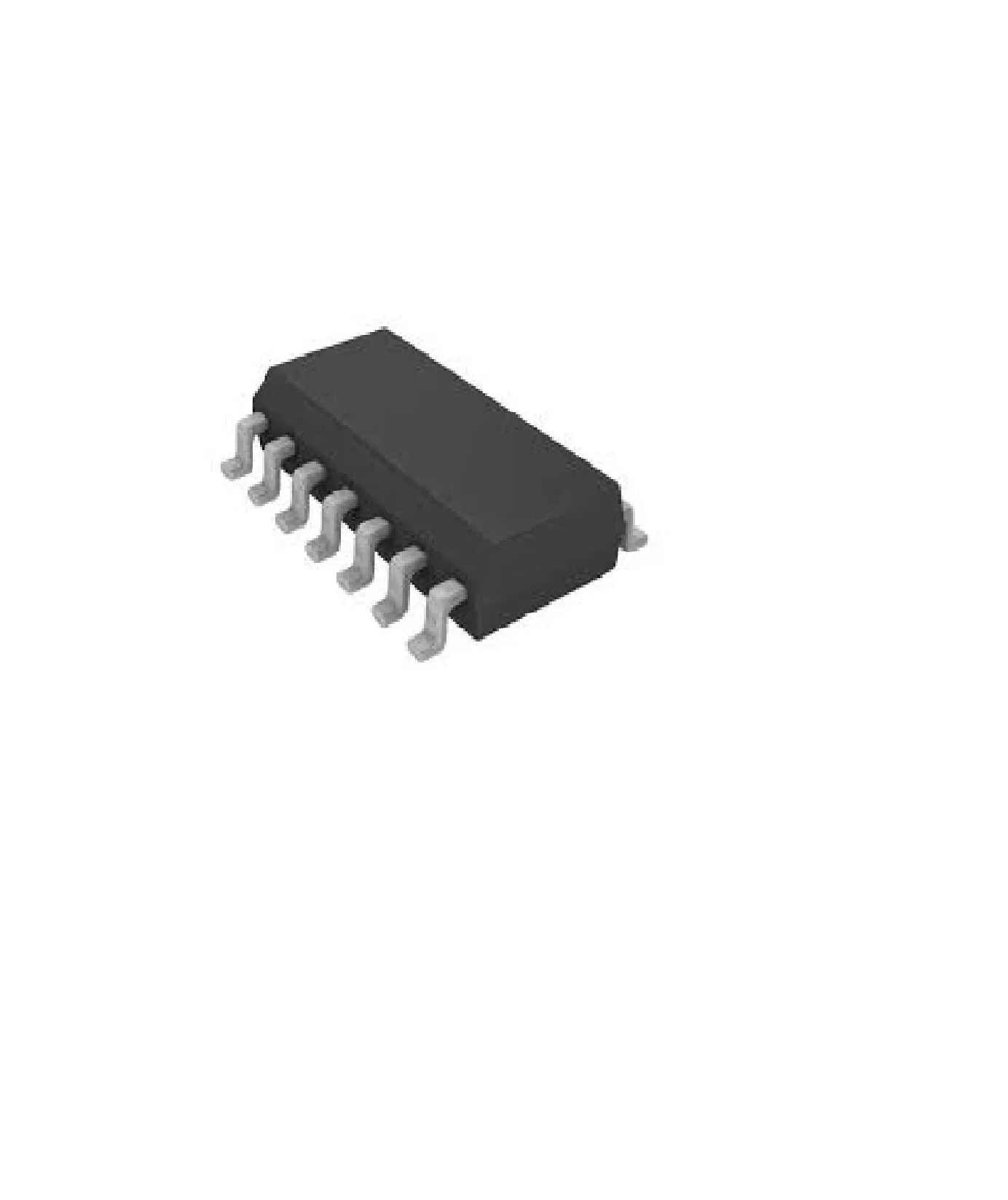

Note: Product images are shown for reference only. The actual product may vary in appearance, manufacturer marking, or logo depending on stock availability.
Features
- Quad-channel operational amplifier IC
- Extremely low noise performance
- High gain-bandwidth product
- Fast slew rate for high-speed signals
- Wide supply voltage range: up to 28V
- Low distortion for high-fidelity applications
- Compact SOIC-14 surface-mount package
Benefits
- Audio Fidelity: Designed to minimize noise and distortion, making it ideal for professional audio equipment.
- High Bandwidth: Enables fast signal processing without significant signal degradation.
- Design Density: Four independent amplifiers in one package maximize PCB space utilization.
Applications
- Professional Audio Pre-amplifiers
- Active Filter Design
- High-Speed Signal Conditioning
- Data Acquisition (DAQ) Systems
- Communication Circuits
Package Includes
- 1 x MC33079DT Quad Operational Amplifier IC (SOIC-14 SMD Package)
Specifications
| Parameter | Specification |
|---|---|
| Product Name | MC33079DT Op-Amp IC |
| Device Type | Quad-Channel Low-Noise Operational Amplifier IC |
| Maximum Supply Voltage | 28V |
| Package / Case | SOIC-14 (SMD) |
| Mounting Type | Surface Mount (SMD) |
