Description
The M7 is a high-performance surface-mount rectifier diode, widely used in professional electronics for its robustness and manufacturing-friendly design. Featuring an integrated built-in strain relief and housed in a compact DO-214AC (SMA) package, it is specifically optimized for high-speed automated placement and assembly on printed circuit boards.
With a 1000V peak repetitive reverse voltage and 1A average rectified output current capability, the M7 is a reliable workhorse for AC-to-DC rectification tasks in compact designs. Its high forward surge current capacity ensures durability under electrical stress, while the wide storage temperature range of -65°C to 175°C provides excellent thermal stability. This high-volume reel of 2,000 units is the ideal choice for efficient, large-scale production and modern industrial electronics manufacturing.
Key Features
- Automated Assembly Ready: Features integrated strain relief for high-speed pick-and-place manufacturing
- High Voltage Capacity: 1000V peak repetitive reverse voltage for heavy-duty rectification
- Robust Performance: High forward surge current capability for enhanced circuit protection
- Compact Form Factor: DO-214AC (SMA) package minimizes PCB footprint
- Production Scale: Convenient reel of 2,000 units for streamlined inventory and assembly
Applications
- AC-to-DC power supply rectification
- High-speed switching and power management circuits
- Surface-mount PCB production
- Portable device power supplies
- General-purpose signal and power rectification
Package Includes

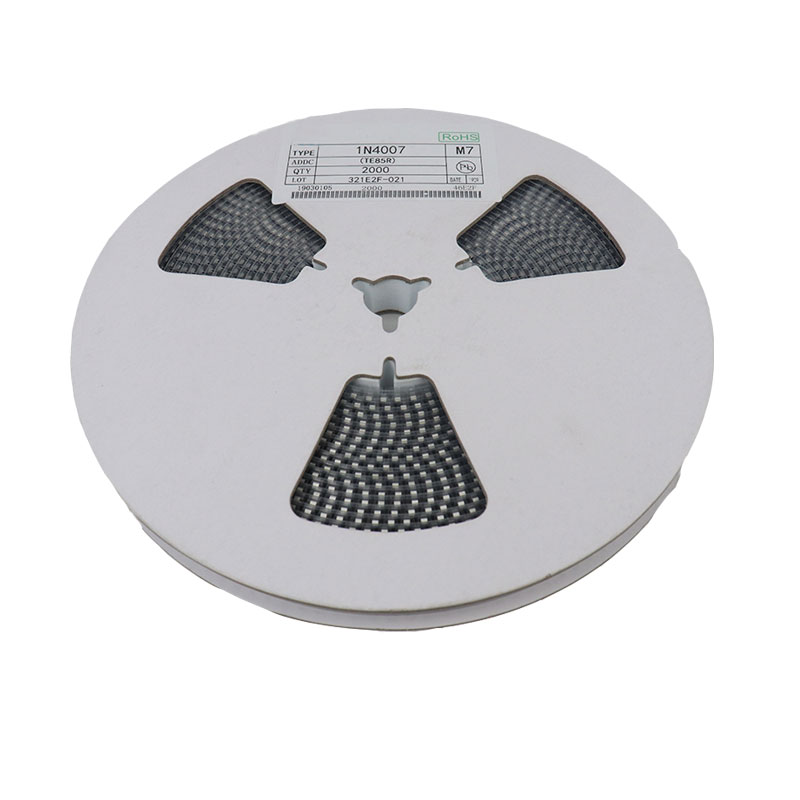

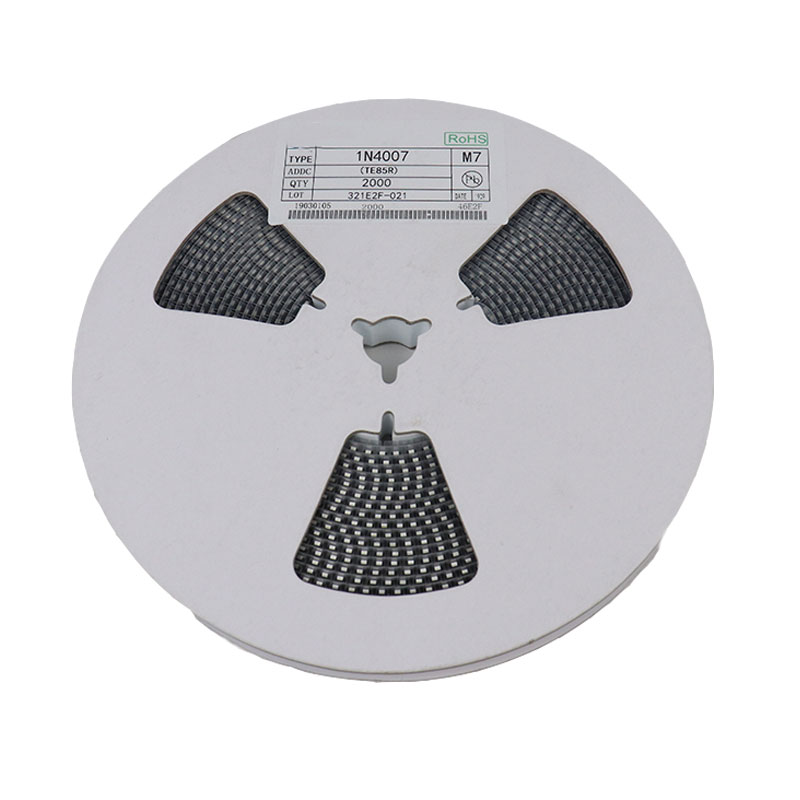

- 1 x M7 Surface Mount Rectifier Diode (Reel of 2,000 units)
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | M7 |
| Package Type | DO-214AC (SMA) |
| Peak Repetitive Reverse Voltage (Vrrm) | 1000 V |
| Average Rectified Output Current (Io) | 1 A |
| Forward Voltage (Vf) | 1 V |
| RMS Reverse Voltage | 700 V |
| Storage Temp. Range | -65°C to +175°C |
