Description:

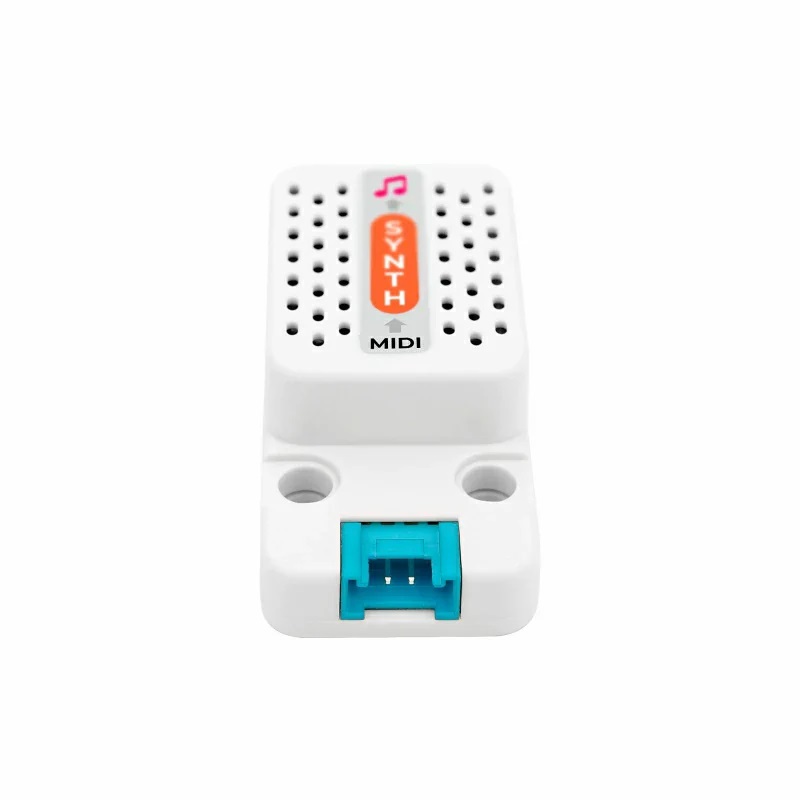

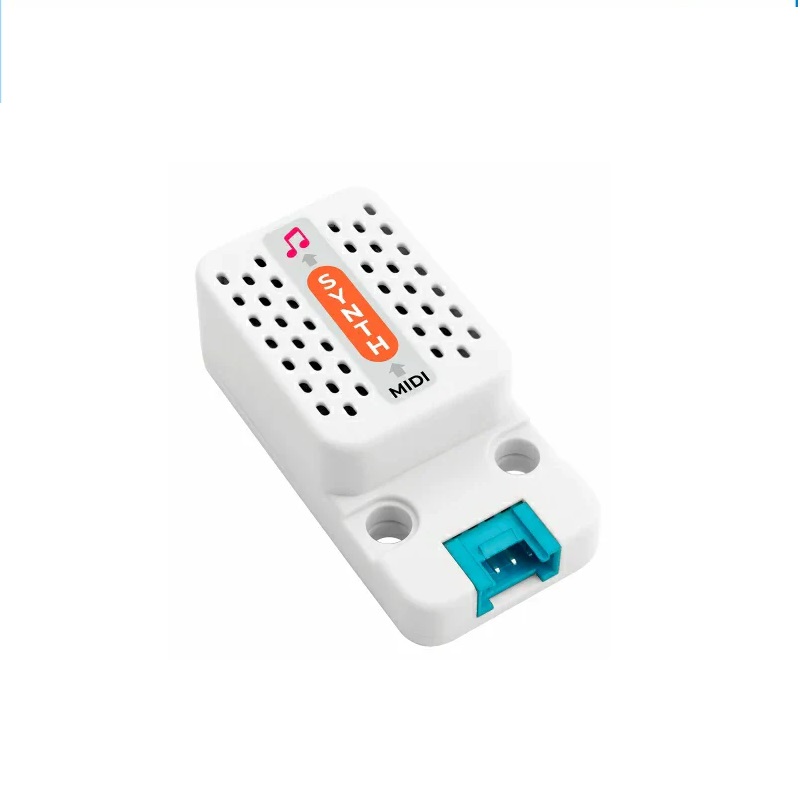

The Synth Unit is a compact MIDI audio synthesizer module designed for electronic music, embedded audio applications, and STEAM education. Built around the high-performance SAM2695 audio synthesizer IC, the module receives standard MIDI commands through serial communication and generates high-quality multi-instrument audio output with low latency.
The module supports multi-channel instrument playback and offers adjustable audio parameters including four-band EQ and reverb effects, enabling users to create rich and dynamic soundscapes. An onboard NS4150B Class-D power amplifier delivers clear and efficient audio output directly to an 8Ω speaker, making the Synth Unit suitable for standalone music projects, MIDI controllers, interactive installations, and educational development platforms.
Compatible with Arduino, UIFlow, and other embedded development environments, the Synth Unit provides an easy-to-use solution for integrating MIDI sound synthesis into DIY electronics, musical instruments, robotics, and automation projects.
Applications:
- MIDI music synthesizers
- Electronic musical instruments
- Live performances
- Music production studios
- Interactive audio installations
- Embedded audio systems
- Robotics and IoT projects
- STEAM education and learning
Features:
- SAM2695 MIDI audio synthesizer IC
- Supports standard MIDI protocol
- Serial UART communication interface
- Multi-channel instrument sound output
- Four-band EQ and reverb adjustment
- Built-in NS4150B Class-D audio amplifier
- Compatible with Arduino and UIFlow
- Compact and easy-to-integrate module design

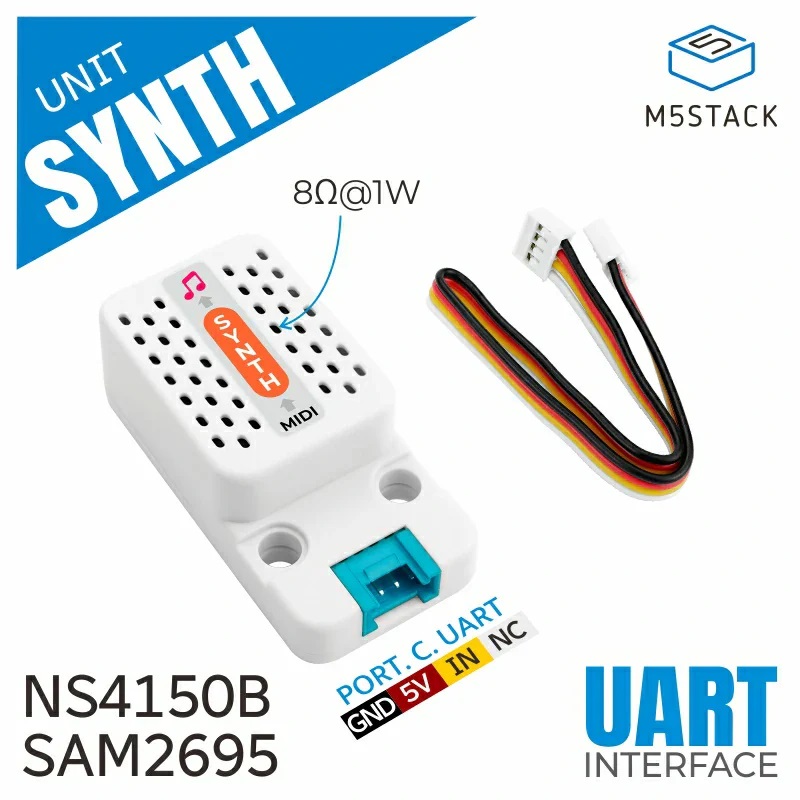

Package Includes:
- 1 x Synth Unit
- 1 x Grove Cable (20 cm)
Specifications:
| Product Type | MIDI Audio Synthesizer Module |
| Audio Synthesizer IC | SAM2695 |
| Amplifier IC | NS4150B Class-D |
| Communication Interface | Serial (UART) |
| MIDI Support | Standard MIDI Protocol |
| Audio Features | Multi-channel Output, 4-Band EQ, Reverb |
| Programming Support | Arduino, UIFlow and Compatible Platforms |
| Speaker Output | 8Ω @ 1W |
| Operating Temperature | 0°C to 40°C |
| Length | 48 mm |
| Width | 24 mm |
| Height | 16 mm |
| Shipping Weight | 0.018 kg |
| Shipping Dimensions | 14 × 10 × 1 cm |
