Description

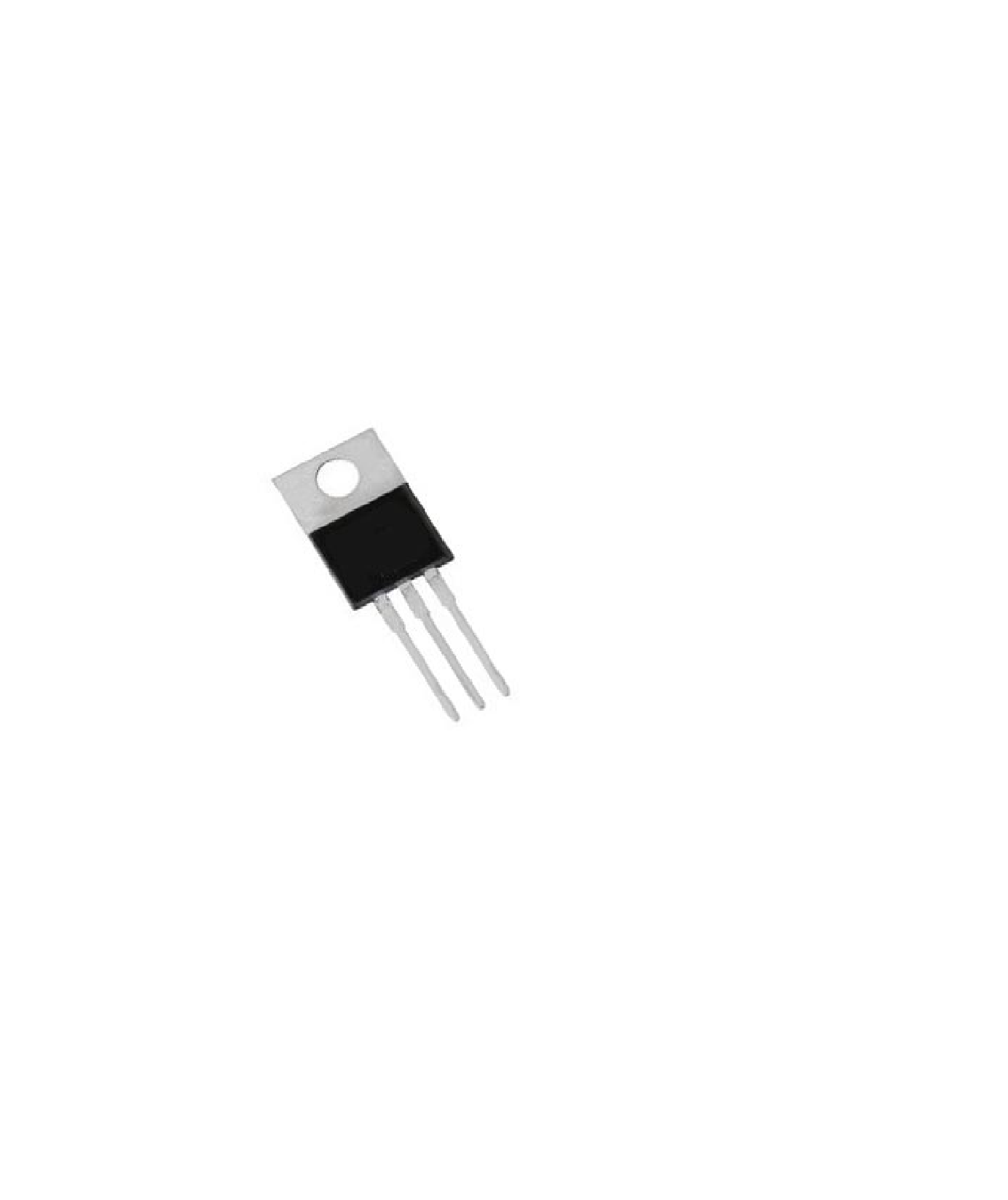

The LM350T is a powerful, three-terminal adjustable linear voltage regulator capable of supplying in excess of 3A over an output voltage range of 1.2V to 33V. This versatile IC is exceptionally easy to use, requiring only two external resistors to set the output voltage, making it an ideal choice for a wide variety of applications, including local on-card regulation, programmable output regulation, or precision current limiting.
Designed for durability, the LM350T includes integrated current limiting, thermal overload protection, and safe-area compensation. These robust protection features ensure that the regulator remains functional even if the output is accidentally shorted, providing a reliable and safe power supply solution for your electronic designs. Housed in a standard TO-220 (DIP-3) package, the LM350T is built to handle the heat dissipation required for high-current applications, making it a cornerstone component for both professional power modules and custom hobbyist projects.
Key Features
- Wide Adjustable Output Range: Provides precise control from 1.2V up to 33V, covering almost any standard low-voltage requirement.
- 3A High-Current Capacity: Delivers robust power suitable for demanding tasks like high-performance motors, processors, and peripheral hardware.
- Simple Design Integration: Requires only two external resistors, greatly simplifying the design and assembly process.
- Robust Protection Suite: Includes internal thermal shutdown, current limiting, and safe-area compensation for long-term reliability.
- TO-220 (DIP-3) Package: A classic, industry-standard footprint that offers excellent heat sink mounting capabilities for high-load operations.
Application
- Custom Power Supplies: An essential component for building reliable, bench-top, or localized DC power supplies.
- Industrial Control Systems: Reliable regulation for localized hardware, PLCs, and factory automation components.
- High-Current Logic/Peripheral Rails: Provides stable voltage for FPGAs, high-current microcontrollers, and motors.
- Battery Charging Circuits: Can be configured as a precision constant-current or constant-voltage charger for various battery chemistries.
- General Electronics: A go-to, versatile, and highly durable solution for any project needing a flexible high-load voltage rail.
Package Includes
- 1 x LM350T 3A Adjustable Linear Voltage Regulator IC (TO-220/DIP-3)
Technical Specifications
| Parameter | Specification |
|---|---|
| Device | LM350T |
| Output Voltage Range | 1.2V – 33V (Adjustable) |
| Max Output Current | 3A |
| Package Type | TO-220 (DIP-3) |
| Shipping Weight | 0.001 kg |
| Shipping Dimensions | 4 × 4 × 1 cm |
Note: Product images are shown for illustrative purposes only and may differ from the actual product. For complete technical parameters, please refer to the official device datasheet.
