Description
The Mornsun LM100-10C051212-35 94W AC/DC Enclosed Triple Output Switching Power Supply is an advanced, high-performance power conversion unit engineered to independently supply three separate voltage rails (Channel 1: 5V DC at 8.0A; Channel 2: 12V DC at 3.5A; Channel 3: 12V DC at 1.0A) for a total output power of 94W. Designed for complex industrial applications, this SMPS features a universal wide input voltage range of 90-264VAC or 120-373VDC, accepting both AC and DC inputs from the same terminal blocks. Engineered for passive convection cooling, it operates reliably across an ambient thermal range of -30°C to +70°C without requiring an internal cooling fan.
Equipped with built-in EMC immunity meeting IEC61000 standards and CISPR32/EN55032 Class B emission compliance without external components, the LM100-10C051212-35 ensures superior electromagnetic protection. It adheres to strict international safety standards including IEC/EN/UL62368, EN60335, and GB4943, while integrating comprehensive protection circuitry. Housed in a compact metallic chassis, it provides an exceptional, cost-effective power solution for multi-voltage industrial control equipment, precision instrumentation, and smart building automation systems.

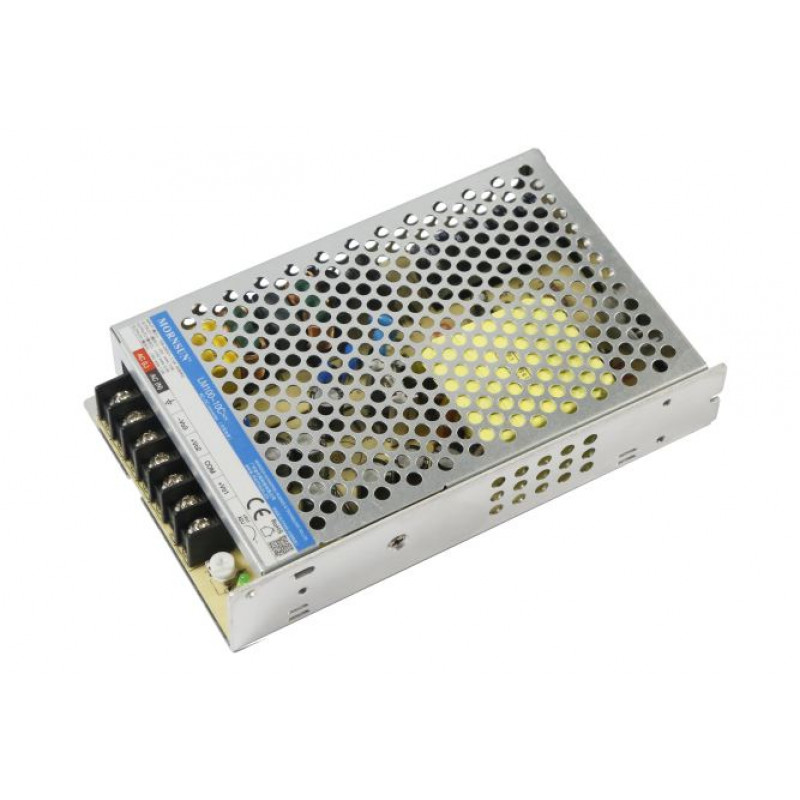

Note: Product images are for reference only; actual appearance or packaging may vary slightly based on manufacturing batches.
Key Features
- Triple Independent Output Channels: Delivers three separate voltage rails (5V at 8.0A, 12V at 3.5A, and 12V at 1.0A) to power multi-voltage system architecture.
- Universal Input Voltage Range: Accepts wide 90–264VAC or 120–373VDC power sources to accommodate diverse electrical grids.
- Dual AC/DC Input Compatibility: Seamlessly works with either AC or DC input sources connected to the exact same terminal blocks.
- Reliable Industrial Thermal Range: Engineered to function consistently and reliably in harsh ambient environments spanning from -30°C to +70°C.
- Fanless Natural Cooling: Operates efficiently through convection cooling without the need for dust-collecting internal cooling fans.
- Superior EMC Performance: Complies with IEC61000 immunity and CISPR32/EN55032 Class B emission standards without requiring external filter components.
- Compact Enclosed Chassis: Space-saving metallic housing designed for secure mechanical integration inside tight control cabinets and automation enclosures.
- Broad International Compliance: Adheres to strict global safety standards including IEC/EN/UL62368, EN60335, and GB4943.
Benefits
- Multi-Voltage System Integration: Triple isolated outputs eliminate the need for multiple separate power supplies in complex systems requiring diverse logic and peripheral voltage rails.
- Unmatched Operational Stability: Wide temperature tolerance and robust circuit design ensure continuous power delivery in unconditioned factory floors or outdoor cabinets.
- Maintenance-Free Reliability: Fanless thermal dissipation prevents mechanical failure points and dust accumulation over long operational lifecycles.
- Flexible Grid Integration: Dual AC/DC input capability simplifies power architecture planning for backup battery systems and diverse industrial mains.
Applications
- Industrial Control Equipment: Perfect for powering advanced multi-voltage control boards combining 5V logic controllers with 12V sensors, drivers, and relays.
- Precision Instrumentation: Clean, regulated multi-rail power conversion for testing benches, laboratory monitoring equipment, and measurement devices.
- Smart Building & Home Automation: Ideal for building management systems, access control units, and automated infrastructure hardware requiring mixed voltage levels.
- Telecommunications & Networking: Reliable power source for remote communication nodes, routers, and switching infrastructure needing multi-tier voltage supplies.
Package Includes
- 1 x LM100-10C051212-35 Mornsun SMPS – (5V 8A), (12V 3.5A) and (12V 1A) – 94W AC/DC Enclosed Switching Triple Output Power Supply
Specifications
| Parameter | Specification |
|---|---|
| Item Type | Enclosed Triple Output Switching Power Supply (SMPS) |
| Brand Name | Mornsun |
| Model Number / Type | LM100-10C051212-35 |
| Output Channels & Voltages | Channel 1: 5.0 V DC | Channel 2: 12.0 V DC | Channel 3: 12.0 V DC |
| Output Currents | Channel 1: 8.0 A | Channel 2: 3.5 A | Channel 3: 1.0 A |
| Channel Power Outputs | Channel 1 (5V): 40 W | Channel 2 (12V): 42 W | Channel 3 (12V): 12 W |
| Total Output Power | 94 W |
| Input Voltage Range | 90 – 264 VAC / 120 – 373 VDC |
| Operating Temperature | -30°C to +70°C (Fanless Convection Cooling) |
| Dimensions (L × W × H) | 159 mm × 97 mm × 30 mm |
| Product Weight | 435 g |
| Safety & Compliance | IEC/EN/UL62368, EN60335, GB4943, CISPR32/EN55032 Class B, IEC61000 |
| Shipping Weight | 0.49 kg |
| Shipping Dimensions | 17 × 11 × 4 cm |
