Description
The WK1-2009 Limit Switch is a rugged, industrial-grade component engineered for high-precision position detection and control in automated manufacturing environments. Built to withstand the demands of continuous operation, this switch provides reliable feedback for machinery and equipment, playing a critical role in enhancing both operational efficiency and site safety.
With a high-endurance design capable of over 500,000 cycles, the WK1-2009 is an excellent choice for applications requiring frequent, repetitive switching. Its compact module size (12.8 x 5.8 x 5.8 mm) allows for seamless integration into constrained spaces within industrial control systems, while its precise force range (60–70gf) ensures consistent and accurate actuation.

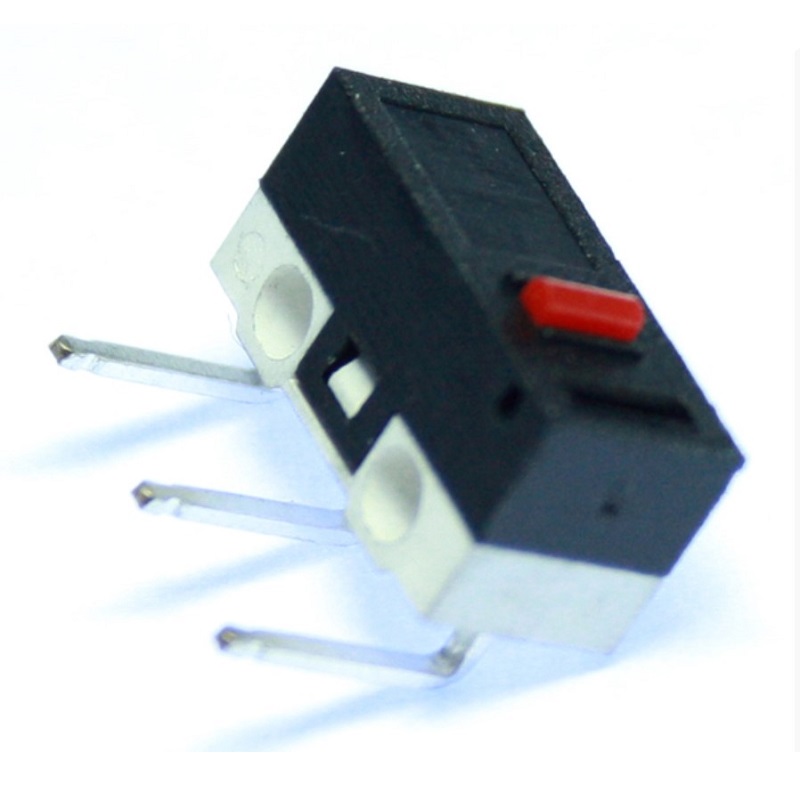

Note: Product images are for reference only. The actual product may vary slightly in appearance or manufacturer markings depending on stock availability.
Key Features
- Industrial Durability: Robust construction designed for harsh manufacturing environments.
- High Cycle Life: Rated for ≥500,000 operational cycles, ensuring long-term reliability.
- Precise Actuation: Force range of 60–70gf provides consistent and accurate position detection.
- Compact Form Factor: Small 12.8 x 5.8 x 5.8 mm module fits easily into tight industrial machinery designs.
- Electrical Integrity: Low contact resistance (≤30mΩ) and high insulation resistance (≥100MΩ) for stable signal transmission.
- Ease of Integration: 3-pin configuration simplifies installation into existing automation systems.
Detailed Benefits & Uses
- Enhanced Automation: Reliable sensing for limit detection in CNC machines, robotics, and conveyor systems.
- Safety Assurance: Acts as a dependable safety interlock in automated production lines.
- Operational Efficiency: Provides the consistent performance needed to minimize downtime in repetitive industrial tasks.
Applications
- Industrial Automation: Position sensing for robotic arms and automated manufacturing cells.
- CNC Equipment: End-of-travel limit detection for machine tool axes.
- Material Handling: Reliable sensing for conveyor belt systems and automated sorting.
- Industrial Control Panels: Precise switching for state detection in control gear.
Package Includes
- 1 x Limit Switch-WK1-2009
Specifications
| Parameter | Specification |
|---|---|
| Model | WK1-2009 |
| Voltage Rating | 125 VAC |
| Current Rating | 1A |
| Lifespan | ≥ 500,000 Cycles |
| Actuation Force | 60 – 70gf |
| Pin Count | 3 Pins |
| Contact Resistance | ≤ 30mΩ |
| Insulation Resistance | ≥ 100MΩ |
| Withstand Voltage | 250V AC (1 min) |

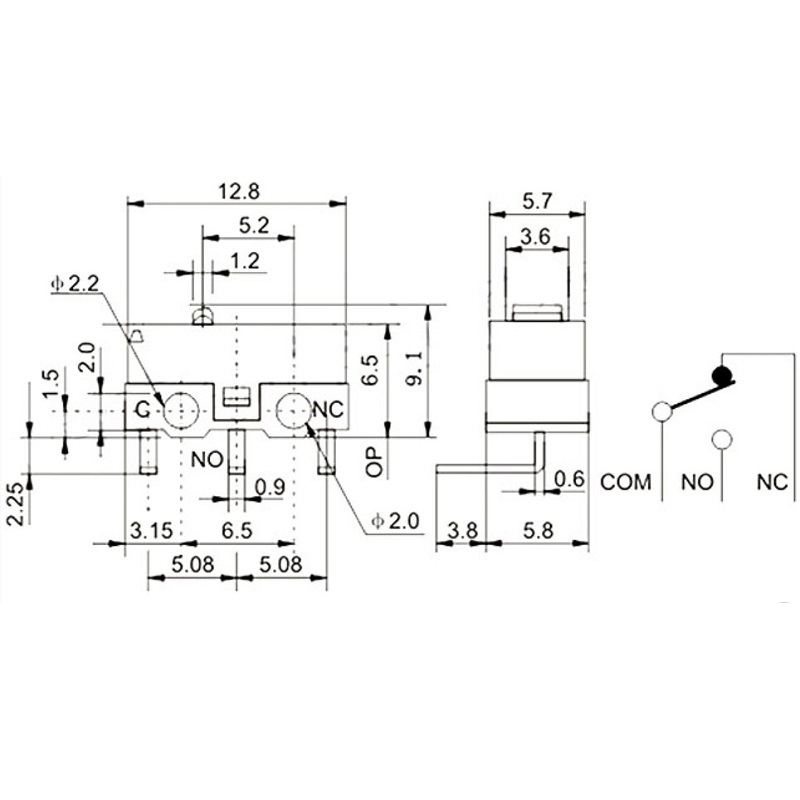

| Dimensions | 12.8 × 5.8 × 5.8 mm |
| Shipping Weight | 0.003 kg |
