SPIDER Automation Grade-B Johnson Geared Motor 60 RPM 12V | Side Shaft DC Motor | Robotics & Automation Actuator
Description

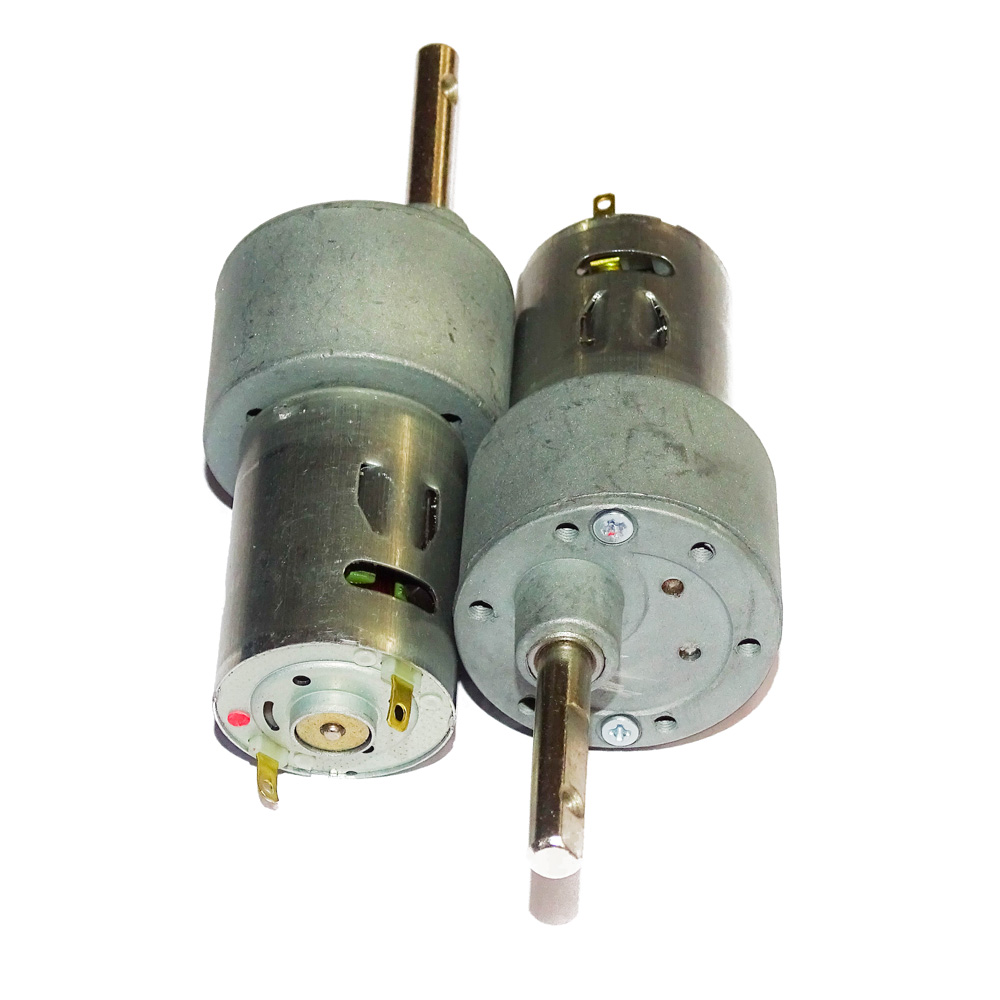

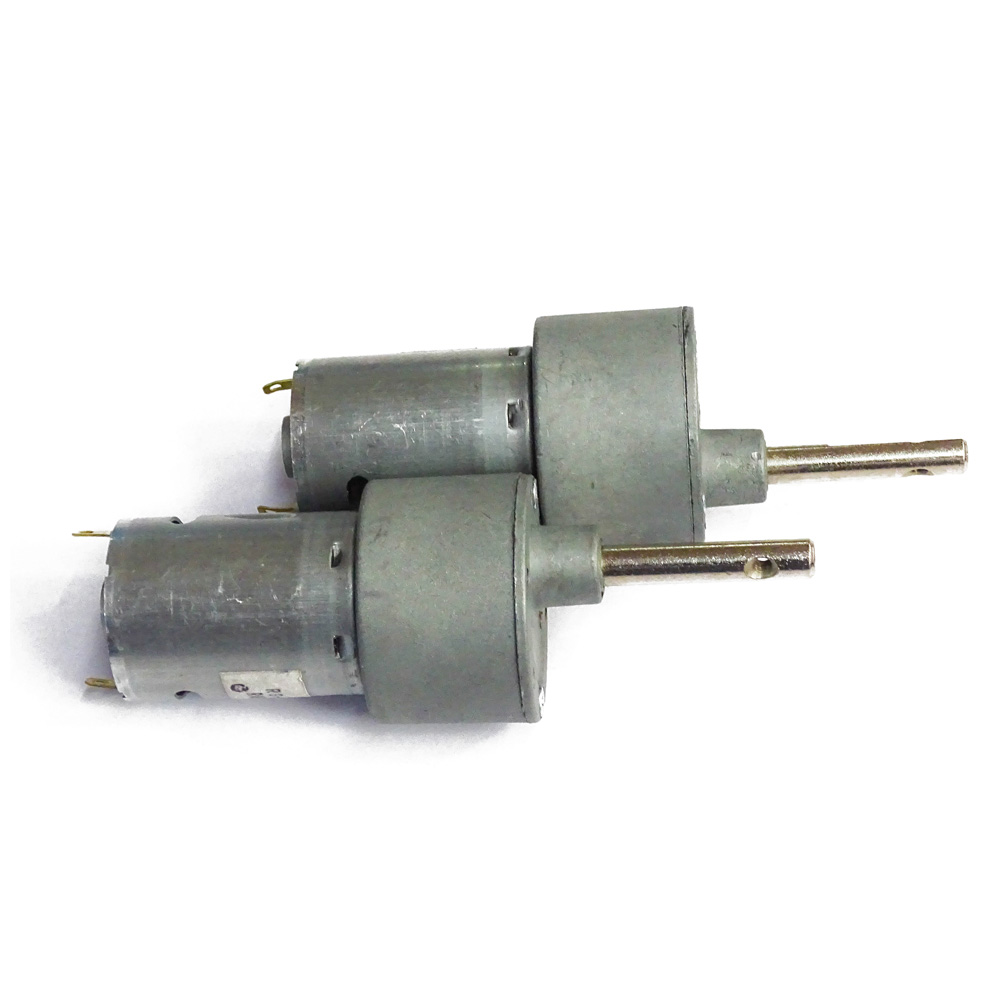

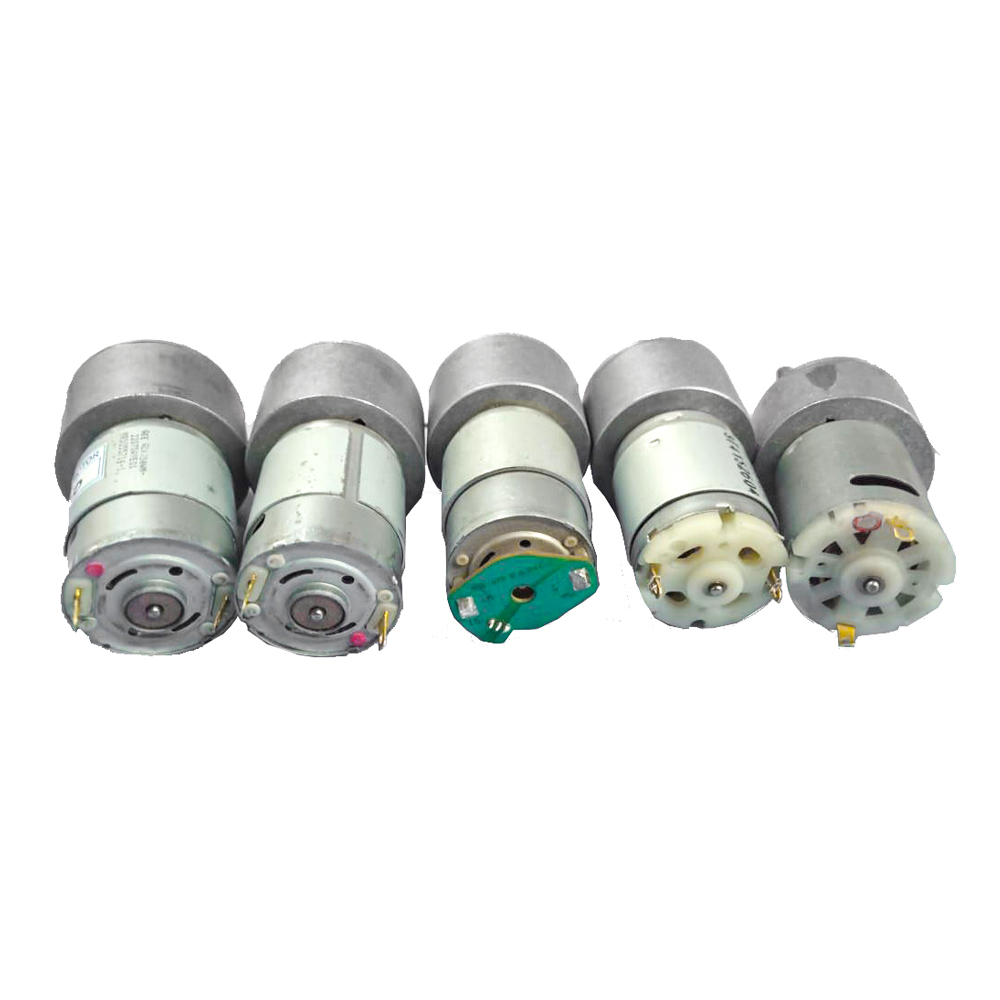

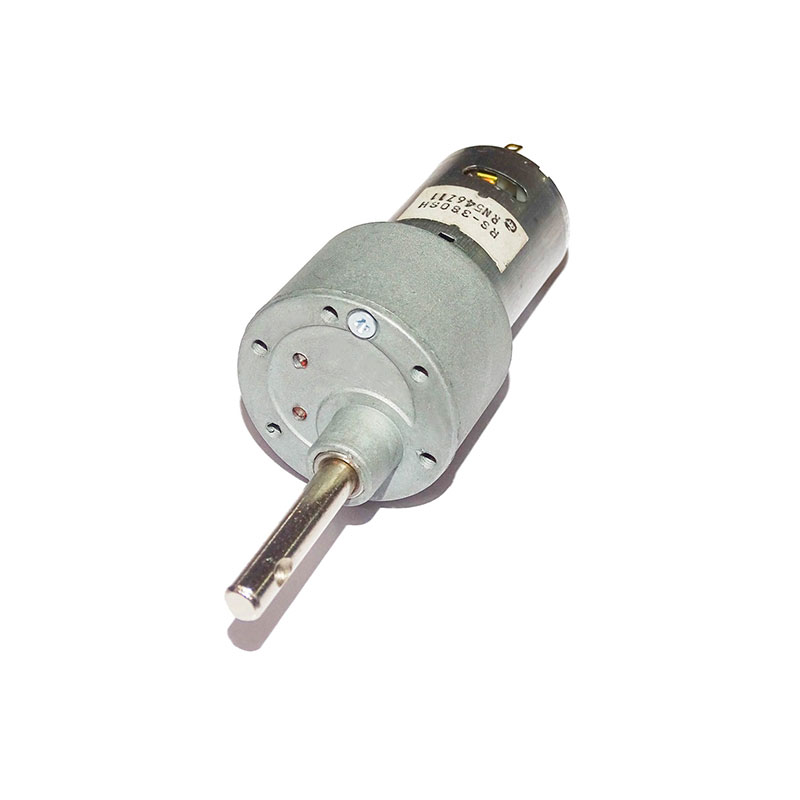

The SPIDER Automation Grade-B Johnson Geared Motor provides torque that falls intermediate to standard center-shaft gear motors and traditional side-shaft units, offering high performance at an economical cost. These Grade-B motors are widely recognized for delivering reliable performance at an affordable price compared to Grade-A variants. It is a reliable, mechanically commutated DC electric motor featuring a heavy-duty metal gearbox designed to drive the shaft efficiently. Johnson Geared Motors are renowned across industries for their compact physical footprint and massive torque-speed characteristics. Featuring a side shaft (off-centered shaft) paired with six M3 mounting holes, the motor shaft is reinforced with internal metal bushes, making it exceptionally wear-resistant. The motor runs smoothly across a flexible voltage range from 6V to 18V DC, delivering 60 RPM and a heavy-duty rated torque of 7.5 kg-cm at a 12V supply. Please note that this motor may exhibit a ±20% tolerance/error in the nominal RPM rating.
Key Features
- Sturdy Build Quality: Manufactured with durable mechanical components designed for reliable everyday operation.
- Robust Metal Gearbox: Precision metal gears designed to handle mechanical loads and resist wear over time.
- Wear-Resistant Bushes: The side-extended shaft is equipped with integrated metal bushes to maximize operational life.
- Flexible Operating Voltage: Operates smoothly across a wide DC power window from 6V to 18V (60 RPM at 12V).
- Coupling-Ready Shaft: Features an engineered drill hole on the shaft for secure mechanical pin coupling.
Benefits
- Cost-Effective Performance: Delivers popular Johnson motor specifications at an accessible, budget-friendly price point.
- Versatile Mounting: Integration-friendly layout supports standard mechanical assemblies and custom chassis configurations.
- Balanced Speed & Torque: 60 RPM output with 7.5 kg-cm torque provides great control and strong pulling power for mobile robots.
- Compact Integration: Space-saving footprint fits effortlessly into tight project enclosures and small device builds.
Applications
- Robotics & Mechatronics: Mobile robot platforms, line followers, obstacle avoiders, and robotic rovers.
- Automation & Actuators: Small automated gates, testing jigs, and custom motorized mechanisms.
- Appliances & Devices: Pan/tilt cameras, automatic shutters, welding machine wire feeds, and cleaning equipment.
- Hobbyist Gear Rigs: Motorized conveyor belts, rotating displays, and smart gadget prototypes.
Package Includes
- 1 x SPIDER Automation Grade-B Johnson Geared Motor (60 RPM, 12V)
Specifications
| Parameter | Specification |
|---|---|
| Item Type | Side Shaft Johnson Geared Motor (Grade-B) |
| Brand / Series | SPIDER Automation |
| Rated Voltage | 12 VDC Nominal (Operational range: 6V to 18V DC) |
| Rated Speed | 60 RPM (±20% RPM tolerance at 12V) |
| Rated Torque | 7.5 kg-cm |
| Shaft Type | Side / Off-Centered Shaft with Metal Bushes & Coupling Hole |
| Mounting Configuration | 6 × M3 Mounting Holes |
| Gearbox Type | Enclosed Metal Gearbox (37 mm Diameter) |
