Description

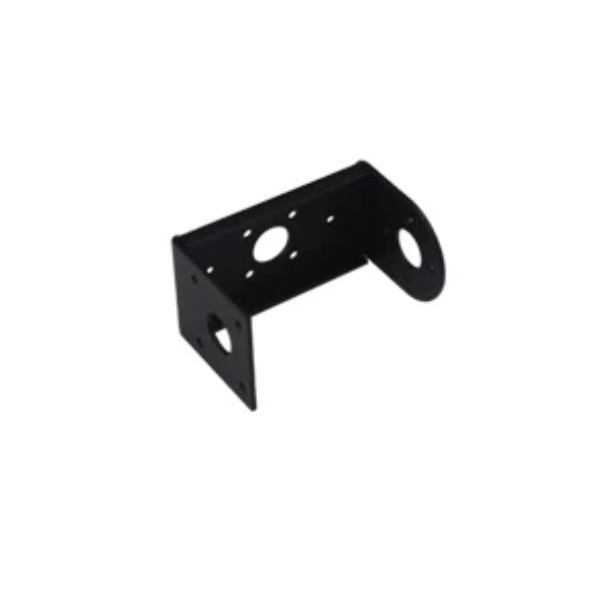

The Hiwonder Small U-Shape Frame is a precision-engineered structural bracket essential for the assembly of intricate robotic mechanisms, micro-automated systems, and DIY mechatronic prototypes. Manufactured from a 1mm thick hardened aluminum plate, this frame offers an ideal balance between high structural rigidity and minimal weight, ensuring that your robotic assemblies remain lightweight while resisting deformation under mechanical load.
Designed for professional-grade integration, the bracket features a matte-black plastic spray finish that offers superior resistance to oxidation and wear, ensuring a clean, professional appearance in the most demanding environments. Its compact dimensions (43mm x 27mm x 23mm) and U-shaped profile make it perfectly suited for high-density robotic joints, allowing for the stable mounting of standard micro-servos and mechanical linkages in space-constrained applications.
Note: Product images are for reference only. The actual product may vary slightly in appearance or dimensions.
Key Features
- Hardened Aluminum Construction: 1mm thick alloy plate provides durable, non-deforming support for critical robotic joints.
- Optimized U-Profile: Geometry specifically designed to simplify the mounting of servo motors and the creation of multi-axis articulated limbs.
- Durable Matte-Black Finish: High-quality plastic spray coating resists environmental degradation and provides a professional industrial aesthetic.
- Ultra-Lightweight Design: With a net weight of only 7.8g, this bracket maintains the agility of your robotic system without adding unnecessary mass.
- Compact Form Factor: Small footprint allows for clean, efficient integration into dense mechatronic enclosures and micro-robotic builds.
Benefits
- Enhanced Structural Integrity: Rigid construction ensures that articulation points remain secure and aligned during high-torque operation.
- Versatile Mechanical Interface: Standardized mounting patterns ensure compatibility with a wide range of micro-servos and robotic hardware kits.
- Rapid Prototyping: The intuitive shape and lightweight design significantly shorten the assembly time for custom motion-control platforms.
- Aesthetic Consistency: The uniform black finish ensures a professional and clean look for finished robotics projects.
Applications
- Robotic Joint Articulation: Perfect for creating stable hinges and pivot points in small-scale robotic arms and legs.
- Custom Automation: A core structural element for building miniature pick-and-place grippers or automated adjustment mechanisms.
- Prototyping & Education: Essential component for developing reliable, modular robotic kits in educational and research settings.
- Precision Instrumentation: Provides a stable foundation for small sensors or actuators requiring precise orientation in automated systems.
Package Includes
- 1 x Hiwonder Small U-Shape Frame (Black)
Specifications
| Parameter | Specification |
|---|---|
| Model Name | Hiwonder Small U-Shape Frame |
| Material | 1mm Hardened Aluminum Plate |
| Surface Treatment | Matte Black Plastic Spray |
| Dimensions | 43mm x 27mm x 23mm |
| Weight | 7.8g |
| Color | Black |
