Description

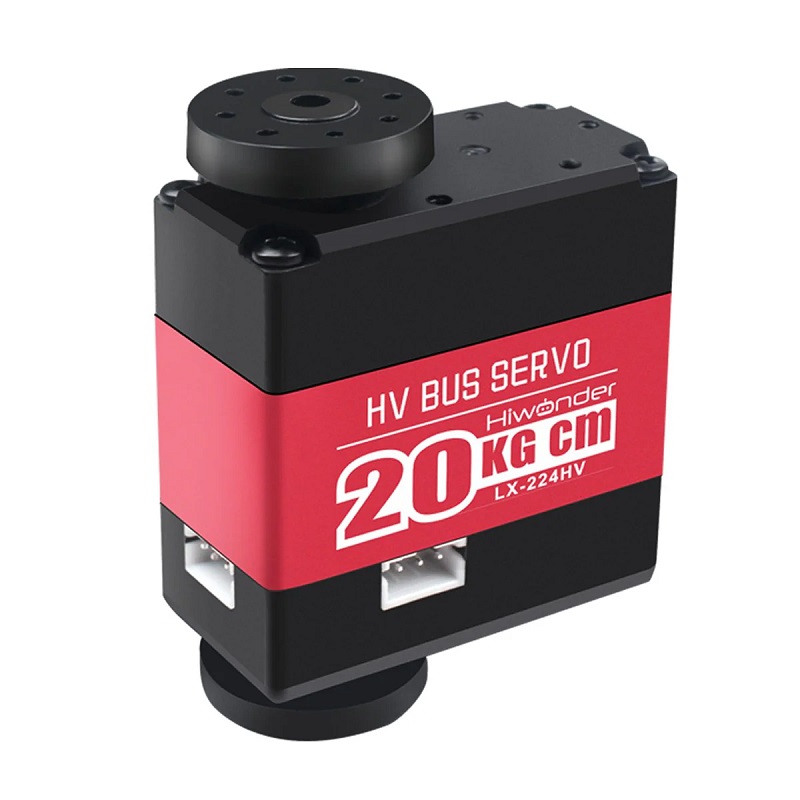

The LX-224HV is a high-performance, intelligent serial bus servo engineered for demanding professional robotics and industrial automation. Designed to operate on a high-voltage input (9V–12.6V), this actuator delivers an impressive 20kg-cm of stall torque, providing the necessary mechanical force for complex, multi-axis robotic platforms. Its advanced serial bus architecture supports daisy-chain connectivity, allowing developers to manage numerous servos efficiently using standard UART commands while significantly reducing cabling complexity.
Built for resilience and precision, the LX-224HV features a durable all-metal geartrain and high-precision internal potentiometers for accurate angular feedback. The servo incorporates intelligent monitoring, providing real-time data on position, temperature, and supply voltage, which facilitates proactive system health management. With two versatile working modes—Servo Mode for precise 0°–240° positioning and Gear Motor Mode for continuous rotation—the LX-224HV is a flexible solution for everything from precision medical prosthetics to large-scale automated manufacturing equipment.
Note: Product images are for reference only. The actual product may vary slightly in appearance or specifications.
Key Features
- High-Voltage Efficiency: Optimized for 9V–12.6V power systems, enabling high torque output with reduced current draw for extended operational duty cycles.
- Intelligent Serial Bus: Supports daisy-chain connections and individual ID addressing, drastically simplifying wiring in complex robotic assemblies.
- Comprehensive Diagnostics: Integrated real-time feedback (position, temperature, and voltage) allows for sophisticated safety and protection logic to prevent burnout.
- Dual Operational Modes: Seamlessly toggle between precise angular positioning (0°–240°) and continuous rotation (Gear Motor mode).
- Durable All-Metal Geartrain: Engineered for minimal backlash and high wear resistance, ensuring mechanical reliability over long service lifespans.
- High Precision: Features an angular accuracy of 0.24°, suitable for exacting motion control in research and industrial environments.
Benefits
- Wiring Efficiency: Serial bus architecture eliminates the need for individual signal wires for every servo, leading to cleaner, more maintainable robotic designs.
- Operational Reliability: Onboard monitoring protects the hardware from electrical and thermal extremes, making it suitable for mission-critical applications.
- Mechanical Versatility: The dual-mode capability allows a single actuator model to fulfill roles in both articulated joints and continuous-drive mechanisms.
- Simplified Calibration: Designed for easy integration with standard microcontrollers and dedicated USB/TTL debuggers, accelerating development cycles.
Applications
- Advanced Robotics: Perfect for high-degree-of-freedom robotic arms, humanoids, and mobile platforms requiring sophisticated coordinated motion.
- Industrial Automation: Reliable actuator for automated packaging, inspection machinery, and precision assembly line components.
- Prosthetics & Exoskeletons: Provides the torque and positional feedback required for safe, human-interactive motion control.
- Home & Agricultural Automation: Suited for smart infrastructure, automated gate/blind control, and robotic farming instruments.
Package Includes
- 1 x LX-224HV Serial Bus Servo
- 1 x 20cm Servo Connection Wire
- 1 x Primary Servo Horn (4mm)
- 1 x Assistant Servo Horn (2mm)
- 15 x M2x5 Self-Tapping Screws
- 2 x Primary/Assistant Mounting Screws
Specifications
| Parameter | Specification |
|---|---|
| Model Name | LX-224HV (Serial Bus) |
| Operating Voltage | 9V – 12.6V DC |
| Stall Torque (@11.1V) | 20 kg-cm |
| Rotational Speed (@11.1V) | 0.18 sec/60° |
| Control Method | UART Serial Command |
| Rotation Range | 0° – 240° (Servo Mode) |
| Gear Material | All Metal |
| Servo Accuracy | 0.24° |
